- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
electrical
-
Specification:
-
<10 pieces
-
Pest Type:
-
Bees, Beetles, Cockroaches, Flies, Hornets, MOSQUITOES, Moths, SPIDERS
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kingsun
-
Model Number:
-
KSZ
-
Packing:
-
Plastic Wood
-
Key words:
-
High speed insect glue trap board making machine
-
Pest Control Type:
-
Gule trap
-
color:
-
Customized
-
Working Speed:
-
100m/min 20000pcs/h
-
Function:
-
Pest control/Insect killed
-
Communication:
-
English/Turkish/Russian/Spanish
-
Has been exporting country:
-
European/United States / Africa/Middle East/Asia
-
Worker:
-
More than 50 workers
-
Delivery Port:
-
Xiamen Port
-
Delivery Time:
-
30-45 Days
Quick Details
-
Applicable Area:
-
Not Applicable
-
Time Used:
-
>480 Hours
-
Product:
-
TRAPS
-
Power Source:
-
electrical
-
Specification:
-
<10 pieces
-
Pest Type:
-
Bees, Beetles, Cockroaches, Flies, Hornets, MOSQUITOES, Moths, SPIDERS
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Kingsun
-
Model Number:
-
KSZ
-
Packing:
-
Plastic Wood
-
Key words:
-
High speed insect glue trap board making machine
-
Pest Control Type:
-
Gule trap
-
color:
-
Customized
-
Working Speed:
-
100m/min 20000pcs/h
-
Function:
-
Pest control/Insect killed
-
Communication:
-
English/Turkish/Russian/Spanish
-
Has been exporting country:
-
European/United States / Africa/Middle East/Asia
-
Worker:
-
More than 50 workers
-
Delivery Port:
-
Xiamen Port
-
Delivery Time:
-
30-45 Days

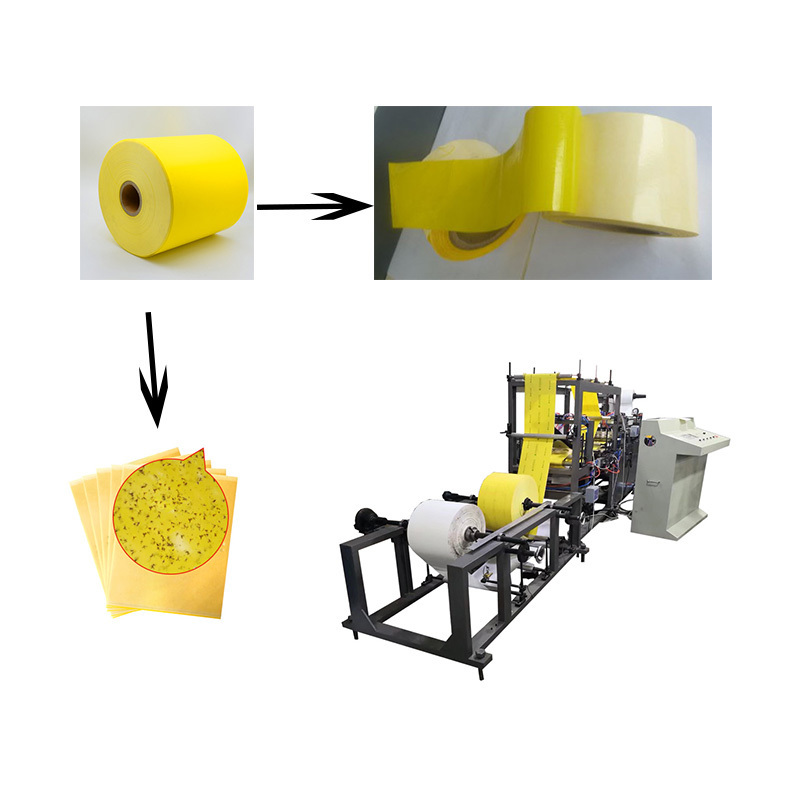

Hot melt ccoating machine /two side coating insect trap board making machine
Summarize:
The company's sticky insect board machine is a special equipment for the production of sticky insect board. Adhesive, punching, slitting can be done on this device at once. The device is easy to operate, convenient, is a high-speed, efficient and stable equipment.
Second, the working principle:
A roll of substrate and two volumes of release paper were installed in the machine material roller, followed by the machine through the wheel, the main drive rubber wheel to reach the knife. Two sets of coating glue gun at the same time on both sides of the substrate coating, and paste the release paper, punching device after punching, cut the knife in accordance with the length of the cut into a single product.
Third, the production line configuration:
The entire equipment is divided into production lines and coating part. Production line part of the configuration control cabinet
One, a set of cutter, rubber wheel drive assembly set, punching a set of two sets of entanglement, two sets of activities, two sets of materials, a set of fixed material roll. Patch part of the configuration of a hot melt machine, two of the pipeline, two sets of spray gun.
Fourth, the main technical parameters:
1. Equipment appearance size:
2. Total power: 18kw
3. Maximum unwinding diameter: ¢ 1000mm
4. Paper tube diameter: ¢ 76mm
5. Effective maximum coating width: 400mm
6. Gluing uniformity: ± 5%
7. Production speed: 80-100 m / min
8. Rewinding edge neatly: ± 2mm
9. Coated weight range: 20-100g / m ²
10. Air pressure source: 5-7kgf / cm ²
11. Equipment use power: AC380V
Insect trap gluer board making machine
