Quick Details
-
Brand Name:
-
ROBUST
-
Model Number:
-
YL-600(S) TWS-600S HT400
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
600
-
Cable Length:
-
10 Meters
-
Outlet Size:
-
G1"
-
Power:
-
500W
-
motor:
-
447 KW
-
Usage:
-
Industrial
-
Product name:
-
FRAC Pump
-
Material:
-
Cast Iron
-
Feature:
-
High Efficiency
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Mining industry, wastewater treatment, Water Distribution, Water Treatment Solutions, Oilfield
-
Pressure:
-
15000 PSI
-
Voltage:
-
48V
-
Brand Name:
-
ROBUST
-
Model Number:
-
YL-600(S) TWS-600S HT400
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
600
-
Cable Length:
-
10 Meters
-
Outlet Size:
-
G1"
-
Power:
-
500W
-
motor:
-
447 KW
-
Usage:
-
Industrial
-
Product name:
-
FRAC Pump
-
Material:
-
Cast Iron
-
Feature:
-
High Efficiency

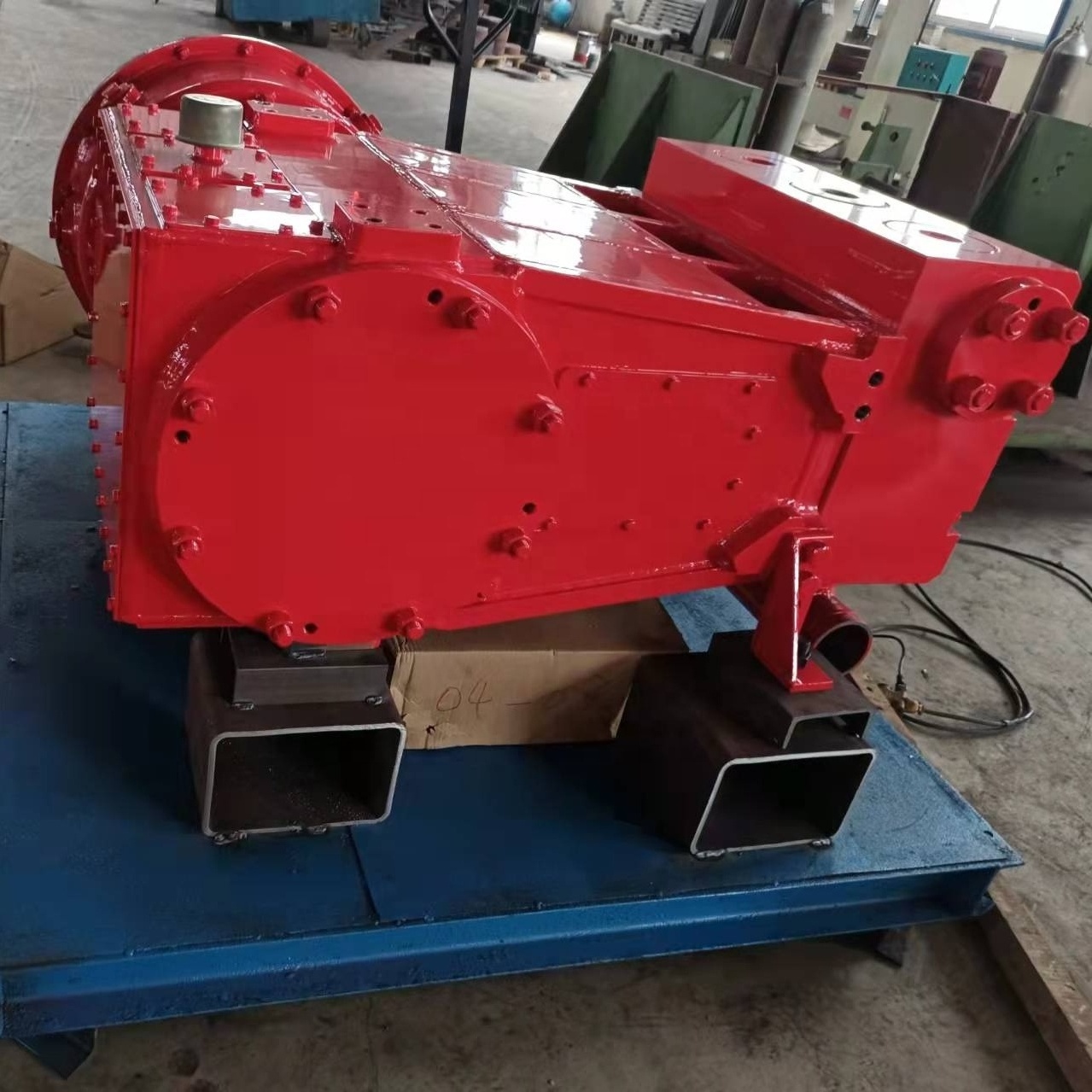

HT400 single-action triplex plunger pump
HT400 Triplex Plunger Pump
1. Product description
HT400 type horizontal single-action triplex plunger pump is composed of power end, reduction gearbox and fluid end. Fluid end is forged by high-quality alloy steel. This pump has advantages such as high power, pressure and convenient for maintenance, etc. Can use 4-1/2", 4", 3-3/8" plunger.
2. Main technical and performance parameters
Main technical parameters
|
Model |
HT400 |
|
Maximum brake power kW (BHP) |
600BHP(447Kw) |
|
Maximum torque of connecting rod (Nm) |
9782 |
|
Stroke mm |
203.2 (8″) |
|
Maximum stroke times |
224rpm |
|
Transmission ratio |
8.6:1 |
|
Length*width*height mm |
1975X976X1156 mm |
|
Weight kg (lbs) |
2910kg (6402) |
Main performance parameters
|
Stroke times of pump (rpm) |
32 |
70 |
128 |
171 |
244 |
|
Diameter of plunger Inch(mm) |
Displacement GPM pressure psi
|
Displacement GPM pressure psi
|
Displacement GPM pressure psi
|
Displacement GPM pressure psi
|
Displacement GPM pressure psi
|
|
3-3/8"(85.7) |
30(104) 20000(138) |
65(245) 14314(99) |
119(450) 7789(54) |
159(601) 5832(40) |
227(860) 4078(28) |
|
4"(101.6) |
42(158) 14000(97) |
91(344) 10190(70) |
167(632) 5545(38) |
223(844) 4152(29) |
319(1207) 2903(20) |
|
4-1/2"(114.3) |
53(200) 11200(77) |
115(435) 8051(56) |
211(800) 4381(30) |
282(1068) 3280(23) |
404(1527) 2294(16) |
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
1.Reducer of the pump is installed in 17 locations, making it more convenient to adapt to different driving routes.
2.Pump head can be a body matching the columns of different sizes and seal plug the total layer, forming a series of interchangeable pump(2-1/2”pump ,2-3/4”pump,”pump ,3-1/2” pump ,4” pump ,4-1/2” pump),to meet different requirements of the pressure and displacement.
3.Packing optional components, valve train, exhaust flange, sinks, such as sunction pipes in order to adapt to and meet the needs of different media and different environment
4.The use of bias-type structure, so that the size of pumps to reduce weight.
5.Main components: bearings, piston, seals, crankshaft W, springs, all imported cases.
