- Product Details
- {{item.text}}
Quick Details
-
Application:
-
building
-
Design Style:
-
Modern
-
Type:
-
Kwikstage standard
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
KS--S
-
Product name:
-
Kwikstage Scaffolding Standard
-
Material:
-
Q235
-
Surface treatment:
-
Hot dip galvanized, powder coated, painted
-
Tube:
-
48.3*4.0mm
-
Color:
-
galvanized,blue,green
-
Usage:
-
Building Project
-
Advantage:
-
Stable
-
Size:
-
220~3960MM
-
MOQ:
-
20 tons
-
Thickness:
-
3.0,3.25,3.5mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
building
-
Design Style:
-
Modern
-
Type:
-
Kwikstage standard
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
KS--S
-
Product name:
-
Kwikstage Scaffolding Standard
-
Material:
-
Q235
-
Surface treatment:
-
Hot dip galvanized, powder coated, painted
-
Tube:
-
48.3*4.0mm
-
Color:
-
galvanized,blue,green
-
Usage:
-
Building Project
-
Advantage:
-
Stable
-
Size:
-
220~3960MM
-
MOQ:
-
20 tons
-
Thickness:
-
3.0,3.25,3.5mm
Product Description
|

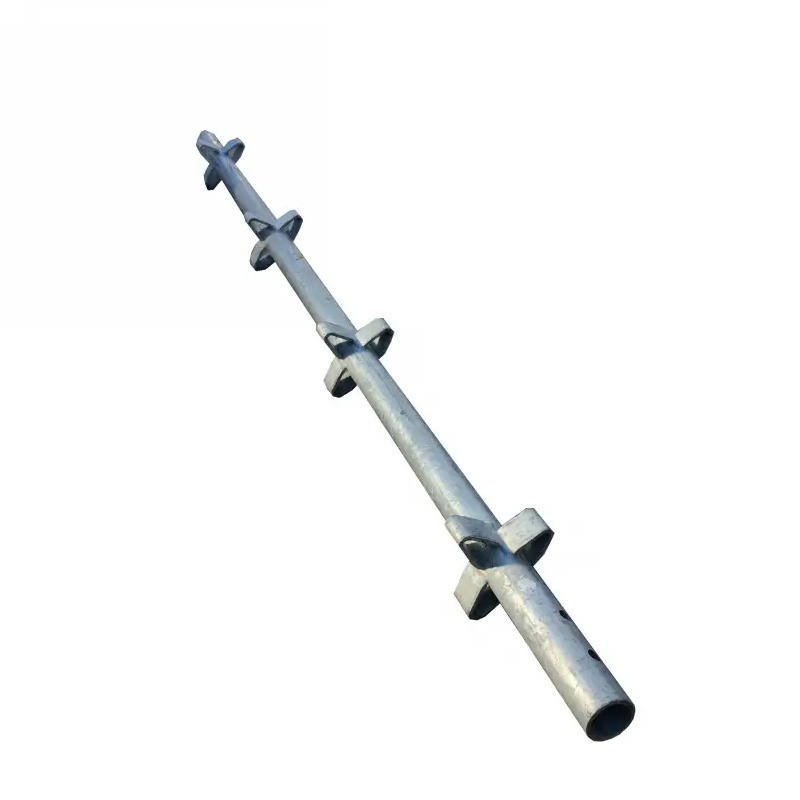

Kwikstage Scaffolding Standard / Vertical (with Spigot)
|
|
|
||
|
Code
|
Size
|
Weight (kg)
|
||
|
KS.S.400
|
3960mm (13')
|
23.04
|
||
|
KS.S.350
|
3465mm (11'4")
|
20.24
|
||
|
KS.S.300
|
2970mm (9'9")
|
17.45
|
||
|
KS.S.250
|
2475mm (8'1")
|
14.66
|
||
|
KS.S.200
|
1980mm (6'6")
|
11.87
|
||
|
KS.S.150
|
1485mm (4'10")
|
9.08
|
||
|
KS.S.100
|
990mm (3'3")
|
6.29
|
||
|
KS.S.050
|
495mm (1'8")
|
3.50
|
||
|
KS.S.022
|
220mm (8.66")
|
1.59
|
||
|
Kwikstage Scaffolding Standard / Vertical (with Socket)
|
|
|
|
|||
|
Code
|
Description
|
Size
|
Weight (kg)
|
|||
|
KS.S.400S
|
4.0M Standard
|
3960mm (13')
|
23.29
|
|||
|
KS.S.350S
|
3.5M Standard
|
3465mm (11'4")
|
20.50
|
|||
|
KS.S.300S
|
3.0M Standard
|
2970mm (9'9")
|
17.71
|
|||
|
KS.S.250S
|
2.5M Standard
|
2475mm (8'1")
|
14.92
|
|||
|
KS.S.200S
|
2.0M Standard
|
1980mm (6'6")
|
12.13
|
|||
|
KS.S.150S
|
1.5M Standard
|
1485mm (4'10")
|
9.34
|
|||
|
KS.S.100S
|
1.0M Standard
|
990mm (3'3")
|
6.55
|
|||
|
KS.S.050S
|
0.5M Standard
|
495mm (1'8")
|
3.76
|
|||
|
KS.S.038S
|
0.38M Top Standard
|
381mm (1'3")
|
2.31
|
|||
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
