Quick Details
-
Frame Material:
-
Hard Pressed Extruded Aluminum Alloy
-
Roof Cover:
-
850g/sqm Double PVC-coated polyester textile
-
Side Wall:
-
Soft pvc wals,glass wall, ABS hard wall,sandwich panel wall,etc
-
Connectors:
-
Strong Hot-dip Galvanized Steel
-
Color:
-
White Red.blue.green.yellow.black,customized
-
Ground Situation:
-
Grassland,earth land,asphalt,cement ground,mable,etc
-
Fixing Solution:
-
Ground anchor,expandable bolt,weight plate,etc
-
Application:
-
Party wedding exhibition warehouse event church
-
Wind Resistance:
-
100kw/h
-
Temperature Resistance:
-
-30 celsius~+70 celsius
Quick Details
-
Brand Name:
-
LR TENT
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BT20
-
Frame Material:
-
Hard Pressed Extruded Aluminum Alloy
-
Roof Cover:
-
850g/sqm Double PVC-coated polyester textile
-
Side Wall:
-
Soft pvc wals,glass wall, ABS hard wall,sandwich panel wall,etc
-
Connectors:
-
Strong Hot-dip Galvanized Steel
-
Color:
-
White Red.blue.green.yellow.black,customized
-
Ground Situation:
-
Grassland,earth land,asphalt,cement ground,mable,etc
-
Fixing Solution:
-
Ground anchor,expandable bolt,weight plate,etc
-
Application:
-
Party wedding exhibition warehouse event church
-
Wind Resistance:
-
100kw/h
-
Temperature Resistance:
-
-30 celsius~+70 celsius
Product Description

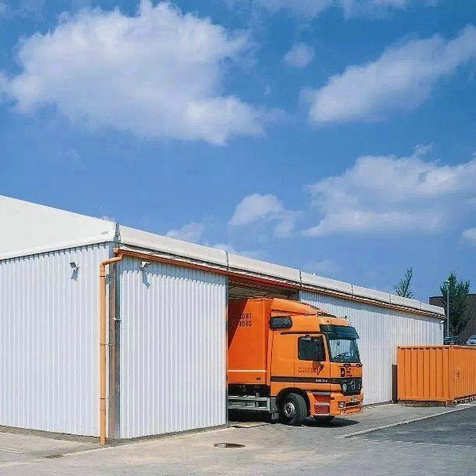

Heavy Duty Large Span Workshop Tent White PVC Roof Storage Warehouse Canopy For Sale
Size Information
|
Item
|
Width
|
Eave height
|
Ridge height
|
Bay distance
|
Main profile
|
|||||
|
ET3
|
3m
|
2.6m(3m/3.5m）
|
3.3m（3.7m/4.2m）
|
3m
|
84*48*3mm
|
|||||
|
ET5
|
5m
|
2.6m(3m/3.5m）
|
3.6m（4m/4.5m）
|
3m
|
84*48*3mm
|
|||||
|
ET6
|
6m
|
2.6m(3m/3.5m）
|
3.7m（4.1m/4.6m）
|
3m
|
84*48*3mm
|
|||||
|
ET8
|
8m
|
2.6m(3m/3.5m）
|
4.2m（4.6m/5.1m）
|
3m
|
84*48*3mm
|
|||||
|
ET10
|
10m
|
2.6m(3m/3.5m）
|
4.5m（4.9m/5.4m）
|
3m
|
84*48*3mm
|
|||||
|
BT10
|
10m
|
4m（5m/6m）
|
5.5m（6.5m/7.5m）
|
5m
|
150*120*3mm
|
|||||
|
BT12
|
12m
|
4m（5m/6m）
|
5.8m（6.8m/7.8m）
|
5m
|
150*120*3mm
|
|||||
|
BT15
|
15m
|
4m（5m/6m）
|
6.2m（7.2m/8.2m）
|
5m
|
150*120*3mm
|
|||||
|
BT18
|
18m
|
4m（5m/6m）
|
6.7m（7.7m/8.7m）
|
5m
|
203*112*4mm
|
|||||
|
BT20
|
20m
|
4m（5m/6m）
|
7m（8m/9m）
|
5m
|
203*112*4mm
|
|||||
|
BT25
|
25m
|
4m（5m/6m）
|
7.8m（8.8m/9.8m）
|
5m
|
203*112*4mm
|
|||||
|
BT30
|
30m
|
4m（5m/6m）
|
9m（10m/11m）
|
5m
|
256*111*4.5mm
|
|||||
|
BT40
|
40m
|
4m（5m/6m）
|
10.6m（11.6m/12.6m）
|
5m
|
300*125*6mm
|
|||||
|
BT50
|
50m
|
4m（5m/6m）
|
12.2m（13.2m/14.2m）
|
5m
|
350*127*11mm
|
|||||
|
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
|
|
|
|
|
|
|||||
|
Main Profile
|
Material: Hard pressed extruded aluminium 6082-T6, 6061/T6
Features: Stainless |
|
|
|
|||
|
Cover
|
Material: Double PVC-coated polyester textile, 750g-900g/m²
Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
|
|
|
|||
|
Eave Connection
|
Hot-dip Galvanized twin steel plate
|
|
|
|
|||
|
Wind Loading
|
100km/hour
|
|
|
|
|||
Applications
Wedding Tent
Exihibition Tent
Party Tent
Trade Show Tent
Military Tent
Event Tent
