200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine
200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine

200kg/h-1200kg/h single shaft shredder machine waste disposal shredder for waste film textile clothes fabric shredding machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $8500
≥2 Sets
US $8000
≥3 Sets
US $7500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
WLD1000
Weight (KG):
4900 kg
Application:
Plastic/Metal/Car Shell/Tire/Garden Waste/etc
Color:
Customers' Requirement
After-sales Service:
Technical Support
Final product:
Customized in a Range
voltage:
220V/380V/Customized
Motor:
Hydraulic/Electric
Blade Material:
NiCrMo High-alloy steel customized
Blade Diameter:
400/Adjustable
Capacity(kg/h):
700-900
Dimension(mm):
2780*2265*2100

Quick Details

Production Capacity:
1000L/H
Place of Origin:
Anhui, China
Brand Name:
WALI
Model Number:
WLD1000
Weight (KG):
4900 kg
Application:
Plastic/Metal/Car Shell/Tire/Garden Waste/etc
Color:
Customers' Requirement
After-sales Service:
Technical Support
Final product:
Customized in a Range
voltage:
220V/380V/Customized
Motor:
Hydraulic/Electric
Blade Material:
NiCrMo High-alloy steel customized
Blade Diameter:
400/Adjustable
Capacity(kg/h):
700-900
Dimension(mm):
2780*2265*2100
Products Description

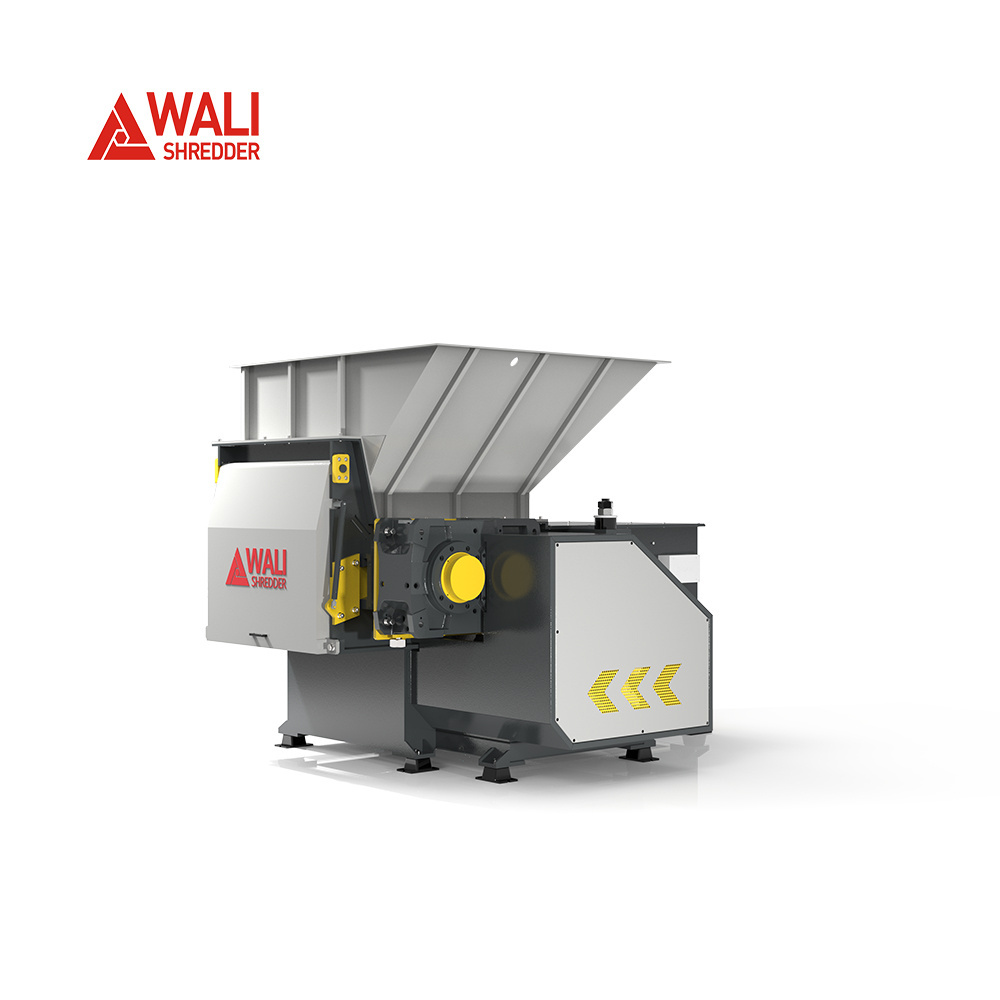

WLD SERIES SINGLE SHAFT SHREDDER
WLD series single shaft shredder is a medium-to-low-speed, large-torque crushing equipment with a wide range of applications.

The motor has a maximum safe current, and if the material is too much and too large, the machine will do other actions to prevent
overload, such as reversing the direction of the knife which is called overload protection.

The crushed materials can be sold as raw materials or processed by other equipment to produce other products.

According to the type of crushed material, the production
capacity of this series of single shaft shredders is between 200kg/h-1200kg/h.


1.motor + reducer drive, transfer power, smooth operation;
2. CrMoV high alloy wear-resistant steel knife, multi-angle replacement, multiple use;
3. knife V layout, both sides of the edge knife, to prevent the material side accumulation;
4. detachable installation tool head, more convenient maintenance;
5. Synchronous operation of the push box to improve the crushing efficiency of the equipment;
6. Install the shock absorber to make it tear smoothly;
7. the discharge size can be adjusted according to the size of the screen aperture;
8.the screen opens, the equipment automatically stops, to ensure safety.
Product Parameters
Model
D600
D800
D1000
Machine Dimension (MM)
1780*1300*1630
2760*1790*1870
2780*2265*2100
Rotation Diameter
φ220
φ400
φ400
Cutting knife (pcs)
23+4
35+4
45+4
Fixed knife
2+2
2+2
2+2
Mesh size
φ40
φ40
φ40
Rotation Speed (rpm)
80
80
80
Power (KW)
18.5+2.25
45+3.75
55+3.75
Net weight (T)
1.8
4.2
4.9
The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.
Applications
+Plastics : Mouldings, Purging/Lump, Profiles,Films,etc.
+Timber/Wood: Pallets,Joiners Waste, Green Waste, etc.
+ Paper & Cardboard: Confidential Documents, Production Waste,Packaging Materials,etc.
+Copper Cable: Household, Telecoms, and Industrial Cables including S.W.A
+Aluminum: Used Beverage Cans (UBCs), Swarf, Cables, etc.
+ Textiles: Carpet (Rolls & Tiles), Garments, etc.
+Security Destruction: Counterfeit Items, Faulty Goods, Out of Date Stock,etc.
+ Foam: Production Waste, etc. + Mixed Household & Commercial Waste: RDF/SRF Production
