Quick Details
-
Size:
-
12500*2500*4000 mm
-
Place of Origin:
-
Shandong, China
-
Height:
-
1100mm-1600mm
-
axles brand:
-
GT,BPW,FUWA or other brand
-
Tires:
-
Tri-angle,Double star or Bridgestone optional
-
Main beam:
-
500mm height Q345B or T700 material
-
Condition:
-
Brand new or second hand optional
-
Function:
-
transport animals or poultry
-
side board height:
-
600mm-3000mm
-
Color:
-
according to Customer requirement
-
Painting:
-
Polyurethane paint optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60 TONS
-
Brand Name:
-
Girder trailer
-
Size:
-
12500*2500*4000 mm
-
Place of Origin:
-
Shandong, China
-
Height:
-
1100mm-1600mm
-
axles brand:
-
GT,BPW,FUWA or other brand
-
Tires:
-
Tri-angle,Double star or Bridgestone optional
-
Main beam:
-
500mm height Q345B or T700 material
-
Condition:
-
Brand new or second hand optional
-
Function:
-
transport animals or poultry
-
side board height:
-
600mm-3000mm
-
Color:
-
according to Customer requirement
-
Painting:
-
Polyurethane paint optional
Product Description

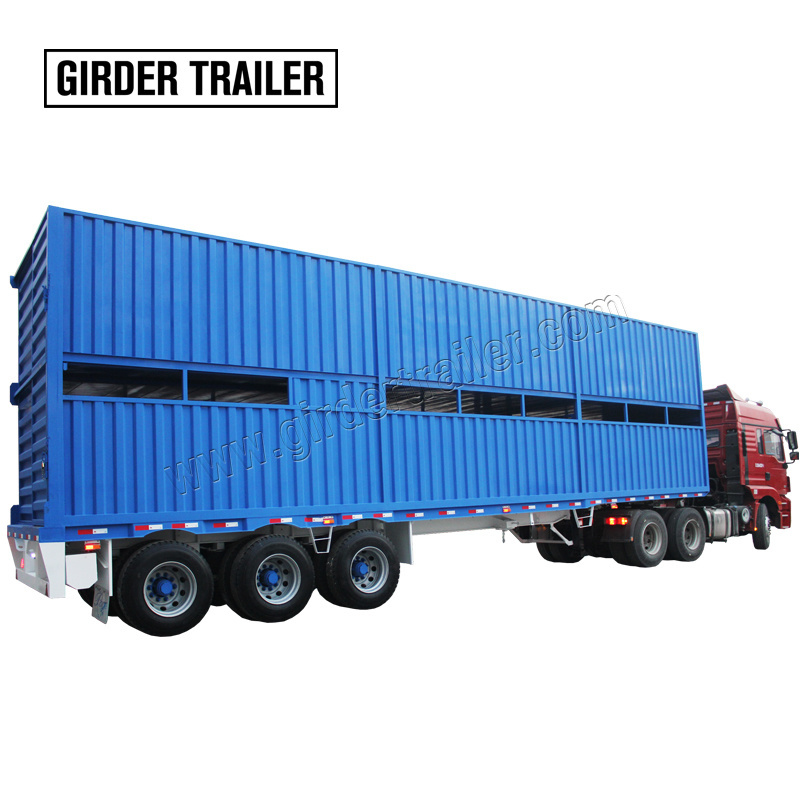

Livestock/Poultry transporting fence semi trailer,animals semi trailer
QINGDAO SHIYUN TRAILER CO.,LD
,is a professional
China Trailer manufacturer with brand “girder trailer”.For different kinds of cargo transporting ,we have different kinds of trailer solutions:
flatbed trailer with side bar,drop side trailer,fence trailer,dry van trailer,wing van trailer,reefer trailer,curtain side trailer,log trailer,silo trailers and livestock trailers.
Features:
1.The length can be from 10meters to 15meters.
2.Side board height can be from 600mm-4000mm.
3.Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.
4.The material can be high strength Mn carbon steel or aluminum material.
5.Flat deck can be straight beam or step deck type.
6.The floors number can be 1,2,3 or 4 floors.
7..Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.
1.The length can be from 10meters to 15meters.
2.Side board height can be from 600mm-4000mm.
3.Axles number can be 1,2,3 or 4 axles for transporting different weight cargo.
4.The material can be high strength Mn carbon steel or aluminum material.
5.Flat deck can be straight beam or step deck type.
6.The floors number can be 1,2,3 or 4 floors.
7..Suspension can be normal leaf springs suspension ,air suspension or bogie suspension.
Specification
|
Item
|
specifications
|
Remark
|
|
|
Material
|
Carbon steel
|
Aluminum optional
|
|
|
Main beam
|
Heavy duty H beam
|
beam extendable optional
|
|
|
Axles
|
2/3/4 * 13ton capacity
|
OCT,FUWA,BPW or other Brand
|
|
|
Suspension
|
Mechanical suspension
|
Air /bogie suspension optional
|
|
|
Leaf spring
|
Leaf spring
|
Air bag lifting optional
|
|
|
Tire
|
12R22.5 ,11R22.5, 315/80R22.5, 385/65R22.5
|
Size and brand optional
|
|
|
Rim
|
9.00-22.5,8.25-22.5,11.75-22.5
|
Other size optional
|
|
|
King pin
|
2’’/3.5’’ bolt type,SAE standard
|
Welding on type optional
|
|
|
Landing gear
|
28 Ton two speed
|
JOST or equivalent brand
|
|
|
Braking system
|
Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional
|
|
|
|
Electrical
|
LED light , 7 ways ,24V
|
|
|
|
Painting
|
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
|
|
|
|
Accessory
|
Tool box,oil tank,spraying system optional
|
|
|
Above data can be customized per your local regulation and requirement.
Double floors cow trailer
Double floors sheep trailer
