Quick Details
-
Model Number:
-
RD07-16
-
Item name:
-
Lora Sensor and WIFI Lora Gateway
-
Item Size:
-
112mm*105mm*27mm
-
Power Supply:
-
DC12V
-
RF Frequency:
-
433/470/868/915 MHZ
-
Interface:
-
4G/RS485/Modbus - RTU
-
RF Receiving Sensitivity:
-
-148dBm
-
Operating Humidity:
-
5% ~ 95% (non-condensing)
-
Operating Temperature:
-
-20°C~+60°C
-
Testing Report:
-
CE RoHS
-
Modulation:
-
Lora
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tzone
-
Model Number:
-
RD07-16
-
Item name:
-
Lora Sensor and WIFI Lora Gateway
-
Item Size:
-
112mm*105mm*27mm
-
Power Supply:
-
DC12V
-
RF Frequency:
-
433/470/868/915 MHZ
-
Interface:
-
4G/RS485/Modbus - RTU
-
RF Receiving Sensitivity:
-
-148dBm
-
Operating Humidity:
-
5% ~ 95% (non-condensing)
-
Operating Temperature:
-
-20°C~+60°C
-
Testing Report:
-
CE RoHS
-
Modulation:
-
Lora
Product Description

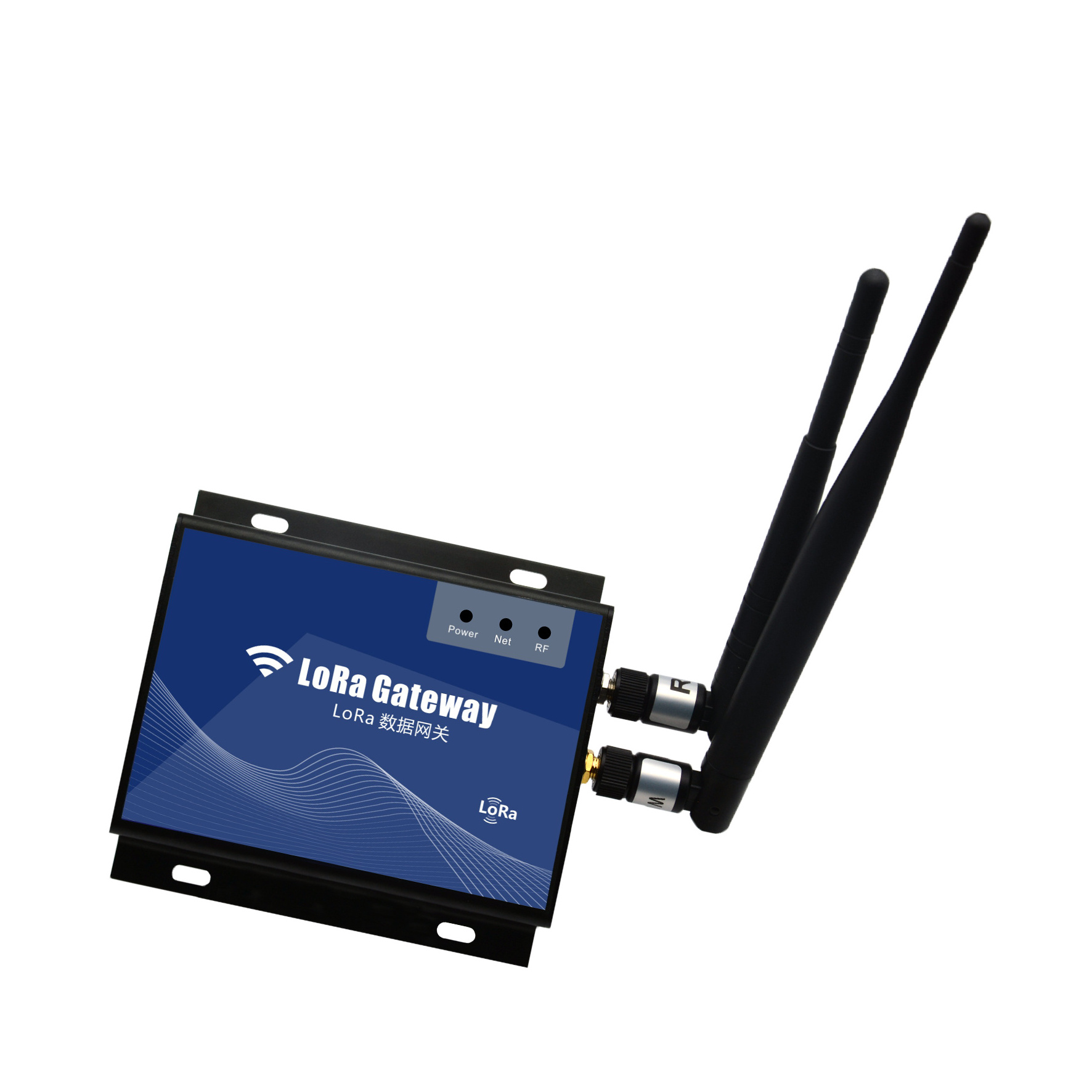

Temperature Humidity Monitor Instrument Lora Sensor and WIFI Lora Gateway
-
Built-in high-performance WIFI module can support WIFI and Ethernet datatransmission;
-
External special USB configure interface, user can configure operating module;
-
Can be download command to LoRa Sensor ;
-
Prevent collision: advanced technology to prevent the collision;
-
Security: encryption algorithm and certification to ensure data security, to prevent thedata link eavesdropping and data to be cracked;
-
Metal shell, resistance to high pressure, easy to
| Product name | Temperature Humidity Monitor Instrument Lora Sensor and WIFI Lora Gateway |
| RF Modulation | LoRa |
| Accuracy |
-20℃~+60℃;
5%RH ~ 95%RH(no condensation) |
| RF Frequency | 433/470/868/915 MHZ |
| LED | 3 LED lights (RF, Net, Power) |
| RF Protocol | Private protocol |
| Interface | 4G/RS485/Modbus - RTU |
| Power Supply | DC12V |
| RF Receiving Sensitivity | -148dBm |
| Firmware updatel | Support |
| Flash Memory | 32Mb |
| Demensions | 112mm*105mm*27mm |
Product Application
Temperature Humidity Monitor Instrument Lora Sensor and WIFI Lora Gateway
- Freezer, refrigerator etc.
- Agricultural greenhouse
- Plant and workshop
- Cold chain reefer and refrigerated trailer
- Pharmacy warehouse and laboratory
