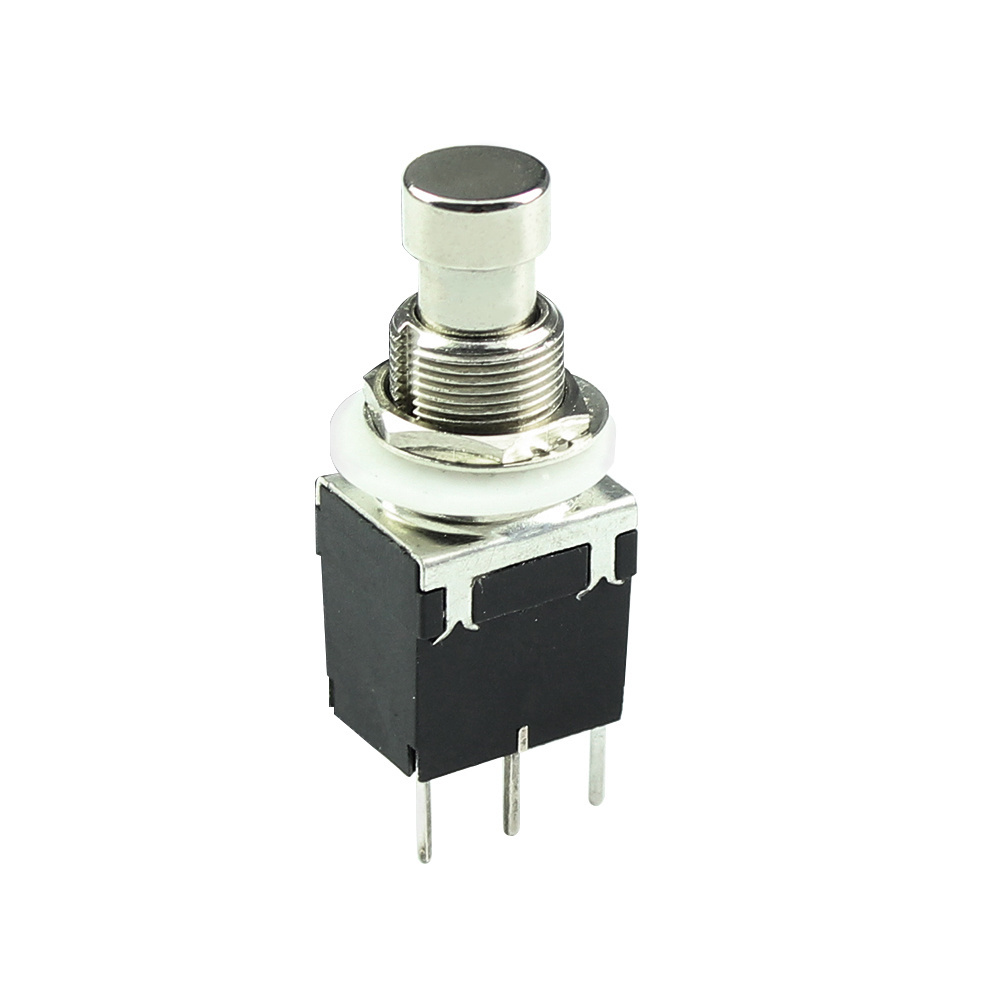

Guitar Pedal SPDT Momentary 3 PCB Terminals Stomp Push Foot Switch

Guitar Pedal SPDT Momentary 3 PCB Terminals Stomp Push Foot Switch

FOB Reference Price: Get Latest Price

≥50 Pieces

US $1.1

≥500 Pieces

US $1.05

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: PBS-24-112P

Product type:: Guitar Pedal SPDT Stomp Push Foot Switch

Type:: Stomp Switch

Product name:: PBS-24-112P

Rating:: 2A 250V

Function:: Momentary

Switch Color:: Black

Terminal:: PCB Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packing:: 50pcs/box

Certification:: CE

Quick Details

Protection Level:: IP40

Max. Current:: 2A

Max. Voltage:: 250V

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: PBS-24-112P

Product type:: Guitar Pedal SPDT Stomp Push Foot Switch

Type:: Stomp Switch

Product name:: PBS-24-112P

Rating:: 2A 250V

Function:: Momentary

Switch Color:: Black

Terminal:: PCB Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packing:: 50pcs/box

Certification:: CE

Product Description

Model	PBS-24-112P
Type	Guitar Pedal SPDT Momentary 3 PCB Terminals Stomp Push Foot Switch
Rating	2A 250V
Function	ON-(ON) PBS-24-112P
Terminal	3 Pin, PCB Terminal
Degree of Protection	IP40
Switch Color Avaliable	Black
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩ min. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

PBS-24-112P

Guitar Pedal SPDT Stomp Push Foot Switch

Specifications:
1. Rating: 2A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Stren gth:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Momentary Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers

Related Roducts

WORKSHOP

Yueqing Daier Electric Co., Ltd. was established in 2003,the company covers an area of 2,500 square meters. Daier is a collection of scientific research, production and domestic and international trade company. The company mainly develops, produces and sells Panels，Battery Switch, USB /Voltmeter/Ammeter, Fuses and Fuse Blocks,Marine Switch,Metal Switchs, Indicator Lights and other accessories.

The company has more than 200 employees, and has a highly qualified engaged in electronic components and international trade experience decades of research and development, production and sales team. Daier owns a powerful technical staff, advanced production equipment,and perfected quality control system.Most of our products have CE,CQC,TUV.Rohs and UL Certificate . All production, processing and sales are in strict accordance with ISO9001:2015.

EXHIBITION

OUR TEAM

CERTIFICATION

TRANSPORTATION

FAQ

1.Q: Could I put my own logo on the products?

A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.

6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.

7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.

8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
