Quick Details
-
Dimension(L*W*H):
-
1200*1100*1350mm(2pcs)
-
Weight:
-
265 KG, 265kg
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
hydraulic hose
-
Model:
-
LSG1500
-
Lift Capacity:
-
1500kg
-
Rotator:
-
3ton
-
Grapple:
-
LG019
-
Max. Open:
-
1260mm
-
Grapple Area:
-
0.19 m2
-
Max. Pressure:
-
20Mpa
-
Linkage:
-
Cat II & Euro-Tractor Front
-
Tractor:
-
50-90HP
Quick Details
-
Use:
-
log skidding grapple
-
Place of Origin:
-
China
-
Brand Name:
-
WeMax
-
Dimension(L*W*H):
-
1200*1100*1350mm(2pcs)
-
Weight:
-
265 KG, 265kg
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
hydraulic hose
-
Model:
-
LSG1500
-
Lift Capacity:
-
1500kg
-
Rotator:
-
3ton
-
Grapple:
-
LG019
-
Max. Open:
-
1260mm
-
Grapple Area:
-
0.19 m2
-
Max. Pressure:
-
20Mpa
-
Linkage:
-
Cat II & Euro-Tractor Front
-
Tractor:
-
50-90HP
Product Description

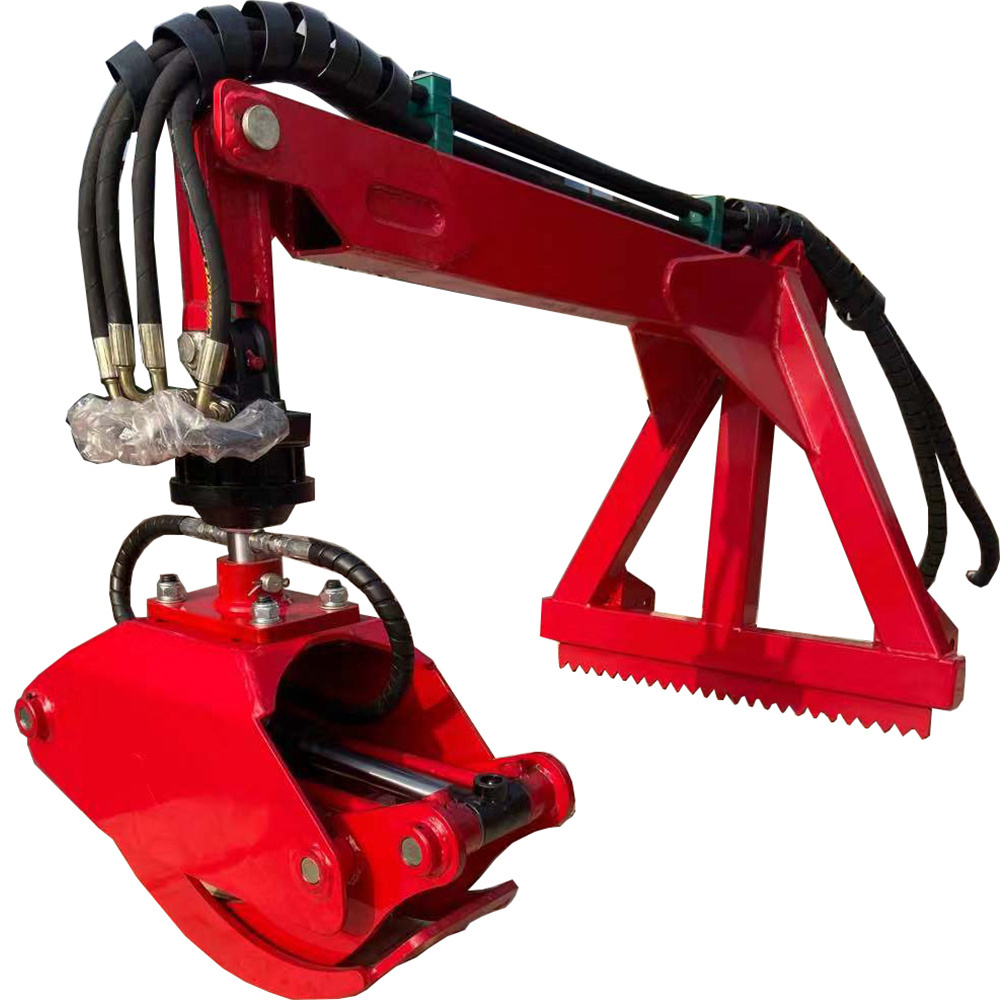

Log skidding grapple
Rima Log skidding grapple features robust constuction with the quality anticorroison protection, and with the heavy duty hydraulic fittings, hoses.When lifting and handling is required,trust the strength and agility of our log skidding Grapple. Load, unload and transport timbers, bolders, utiltiy poles or any item you can clamp up to 3300 lbs quickly and easily. Built specifically , our skidding Grapple is ideal for sawmill operators that need precision handling and controlled movement of heavy, awkward items.
|
Model
|
LSG500
|
|
Lift Capacity
|
500kg
|
|
Rotator
|
1ton
|
|
Grapple
|
LG014
|
|
Max. Open
|
1035mm
|
|
Grapple Area
|
0.14 m2
|
|
Max. Pressure
|
20Mpa
|
|
Linkage
|
Cat I
|
|
Tractor
|
25-40HP
|
|
Weight
|
145kg
|
|
Model
|
LSG1000
|
|
|
|
|||
|
Lift Capacity
|
1000kg
|
|
|
|
|||
|
Rotator
|
3 ton(GR30)
|
|
|
|
|||
|
Grapple
|
LG016N
|
|
|
|
|||
|
Max. Open
|
1180mm
|
|
|
|
|||
|
Grapple Area
|
0. 16 m2
|
|
|
|
|||
|
Max. Pressure
|
20Mpa
|
|
|
|
|||
|
Model
|
LSG1500
|
|
|
|
|||
|
Lift Capacity
|
1500kg
|
|
|
|
|||
|
Rorator
|
3ton
|
|
|
|
|||
|
Grapple
|
LG019
|
|
|
|
|||
|
Max. Open
|
1260mm
|
|
|
|
|||
|
Grapple Area
|
0.19 m2
|
|
|
|
|||
|
Max. Pressure
|
20Mpa
|
|
|
|
|||
|
Linkage
|
Cat II & Euro-Tractor Front
|
|
|
|
|||
|
Tractor
|
50-90HP
|
|
|
|
|||
|
Weight
|
265kg
|
|
|
|
|||
|
Packing size
|
1200*1100*1350mm(2pcs)
|
|
|
|
|||
|
Model
|
LSG220H
|
|
|
|
|||
|
Clamping force
|
8ton
|
|
|
|
|||
|
Grapple opening
|
2100mm
|
|
|
|
|||
|
Max recommended log diameter
|
300-700mm
|
|
|
|
|||
|
Slewing range
|
55 °
|
|
|
|
|||
|
Maximum pressure
|
20Mpa
|
|
|
|
|||
|
3 point hitch
|
Cat II
|
|
|
|
|||
|
Tractor
|
80-120HP
|
|
|
|
|||
|
Weight
|
965kg
|
|
|
|
|||
