Quick Details
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
15001-20000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
China
-
Cargo Tank Dimension:
-
7300X2500X800
-
Product name:
-
HOWO 6 ton used truck crane 6 ton used truck mounted crane for sale
-
Color:
-
White
-
Brand:
-
SINOTRUK
-
Driving type:
-
6x4
-
Engine:
-
WD615.47
-
Transmission:
-
HW19710
-
Axle:
-
HC16
-
Cab:
-
HW76
Quick Details
-
Condition:
-
Used
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Construction materials transportation
-
Horsepower:
-
351 - 450hp
-
Cargo Tank Type:
-
Fence
-
Gross Vehicle Weight:
-
15001-20000 kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
China
-
Cargo Tank Dimension:
-
7300X2500X800
-
Product name:
-
HOWO 6 ton used truck crane 6 ton used truck mounted crane for sale
-
Color:
-
White
-
Brand:
-
SINOTRUK
-
Driving type:
-
6x4
-
Engine:
-
WD615.47
-
Transmission:
-
HW19710
-
Axle:
-
HC16
-
Cab:
-
HW76

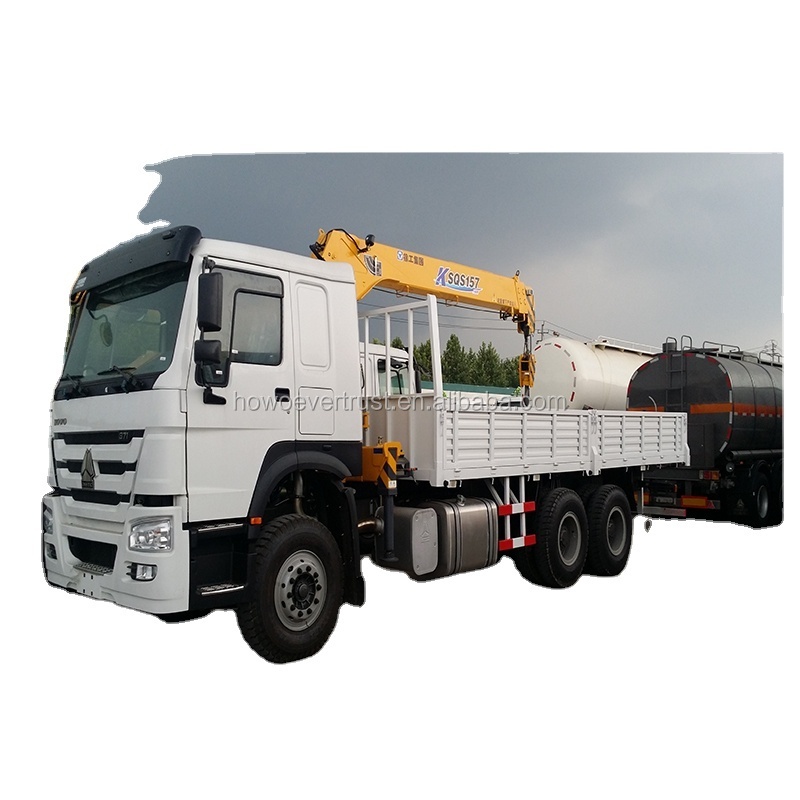

SINOTRUK HOWO 6 ton used truck crane 6 ton used truck mounted crane for sale
|
Description |
HOWO 6x4 truck with crane |
||
|
Vehicle Main Dimensions |
(L x W x H)mm |
11700*2496*3635 |
|
|
Wheel base (mm) |
5825+1350 |
||
|
Weight in KGS |
Curb Weight |
15000 |
|
|
GVW |
25000 |
||
|
Max. driving speed(km/h) |
102 |
||
|
Engine |
Model |
WD615.47 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP) |
371 | ||
|
Emission standard |
Euro II |
||
|
Gearbox |
10 forwards& 2 reverse |
||
|
Fuel Tank |
300L |
||
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||
|
Tire |
1200R20, 10+1 spare |
||
|
Brakes |
Service brake: dual circuit compressed air brake |
||
|
Steering Gear |
power steering, hydraulic steering with power assistance |
||
|
Equipment for Crane Mounted Parts |
|||
|
Working Platform |
360°turning(left or right), H-shape legs 360° |
||
|
Cargo Box |
8200×2300×500mm |
||
|
Equipment |
Crane can be selected Hydraulic valve is universal in the world on the safe side; three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube; |
||
|
Crane specifications |
Brand : Xugong |
||
|
Max lift capacity: 6300 kg |
|||
|
Max working radius 10 m |
|||
|
Lifting Max. Height 12.5m |
|||
6.3 T knuckle crane
|
Type |
SQ6.3SK2Q |
|
Crane Weight |
2266KG |
|
Max Lifting Capacity |
6000kg |
|
Max Lifting Moment |
15.7TM |
|
Recommend Power |
20kw |
|
Max Oil Flow of Hydraulic System |
40L/MIN |
|
Rated Pressure Of Hydraulic System |
20MPA |
|
Oil Tank Capacity |
90L |
|
Rotation Angle |
All Rotation |
|
Installation Space |
900MM |
