MPPT wind solar hybrid charge controller 12v 24v 48v for 300w 500w 800w 1000w 1500w wind turbine with dump load

MPPT wind solar hybrid charge controller 12v 24v 48v for 300w 500w 800w 1000w 1500w wind turbine with dump load

FOB Reference Price: Get Latest Price

≥1 Pieces

US $68

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certificate:: CE RoHs

Warranty:: 3 years

Work Time (h):: 24 hours

Product name:: MPPT Wind solar charger controller

Control Type:: MPPT

Charge mode:: MPPT Maximum Power Point Tracking

System voltage:: 12v/24v auto

Rated Current:: 41.66a

Size:: 162*140*64mm

Net Weight:: 1.2kg

Wind turbine:: 500w

Application:: Wind solar hybrid Controller

Quick Details

Place of Origin:: Anhui, China

Brand Name:: JNGE

Model Number:: JW-MPPT

Certificate:: CE RoHs

Warranty:: 3 years

Work Time (h):: 24 hours

Product name:: MPPT Wind solar charger controller

Control Type:: MPPT

Charge mode:: MPPT Maximum Power Point Tracking

System voltage:: 12v/24v auto

Rated Current:: 41.66a

Size:: 162*140*64mm

Net Weight:: 1.2kg

Wind turbine:: 500w

Application:: Wind solar hybrid Controller

Product Introduction

MPPT Hybrid Wind Solar Charge Controller

Product Parameters

Technical Parameters

Model

JW1230

JW1240

JW1250

JW2450

JW2460

Rated voltage

12v/24v auto

24V

Solar panel power

100W

300W

400W

Wind turbine power

300W

400W

500W

600W

Charging

Charging current

33.33A

41.66A

50A

33.33A

41.66A

Equalization charge

14.4V±1%

28.8V±1%

Floating Charge

13.8V±1%

27.6V±1%

Equalization charge recovery

13.2V±1%

26.4V±1%

Temperature Compensation

-24mV/℃

-48mV/℃

Over Discharge

Disconnect (DC)

10.8V±1%

21.8V±1%

Recovery (DC)

12.3V±1%

24.6V±1%

Over Voltage

Shut off (DC)

16V±1%

32V±1%

Recovery (DC)

15V±1%

30V±1%

No-load

≤0.1A

Voltage drop (DC)

≤0.5V

Control mode

Wind generator MPPT charge function, PWM uninstall function, PWM over-current limiting

Boost charge

Flexible independent step-up circuit (optional)

Display

LCD

Show parameters

Voltage、charge current，battery voltage

Protected type

Lightning protection, solar cell anti-reverse protection, open battery protection, reverse battery protection, over-wind speed and
over-voltage soft automatic braking protection

Heat emanation way

Radiator

Working Temperature

-25℃~+55℃

Height

≤5500m(2000m above the need to reduce power use)

Environment humidity

0~90%，No condensation

Product Details

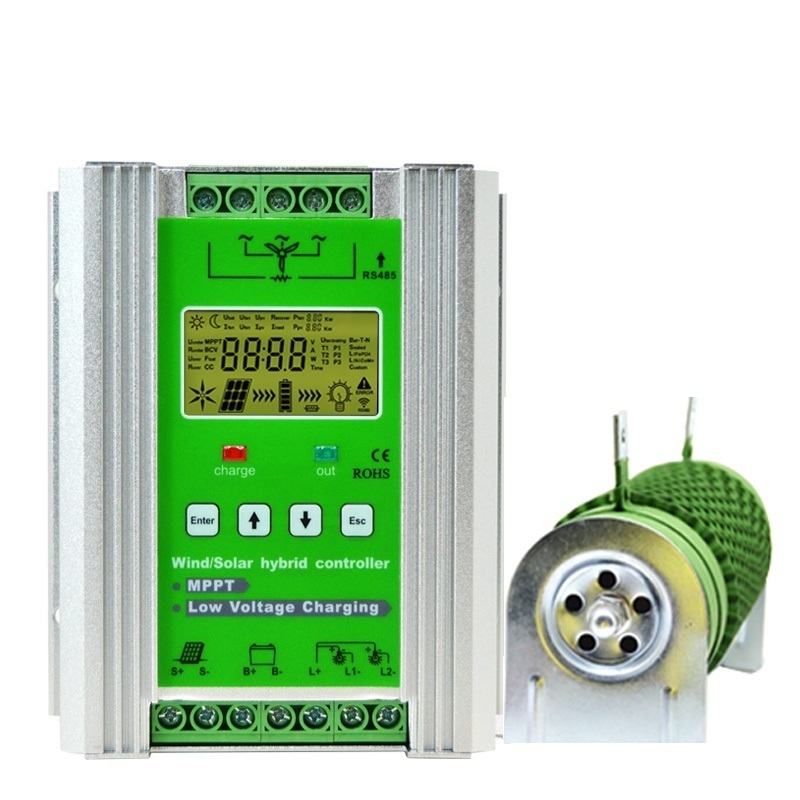

Hybrid Wind Solar Charge Controller

▷ 12/24V auto and 48V independent system

▷ Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn

▷ Advanced MPPT maximum power point tracking technology,tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%

Hybrid Wind Solar Charge Controller

▷ Dump load resistance is default part, no need pay additional for it

▷ Comprehensive protection functions : overcharge, over discharge and overload etc

▷ In the high wind speed or fan’s power is beyond scope of battery and load absorption, controller immediately launched step-less unloading resistance protection system

▷ It has various load control modes, DC load has two route outputs, output power and time can be set

▷ Time Control: street light & household Street light mode: time can be set by UP & DOWN keys, default Value “15H”, you can set other hours as you want, this time set is street light work time at night.

Household mode: time is “24H”, it means DC load need work at 24H
