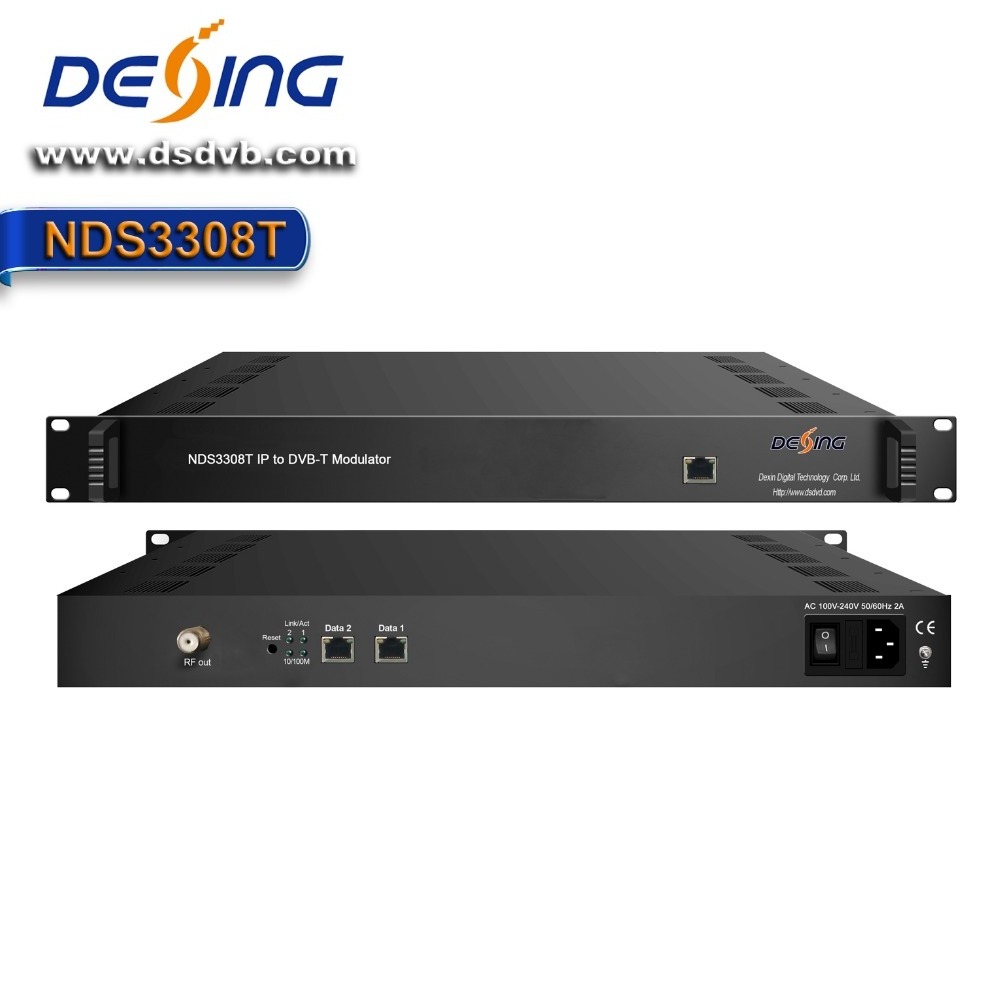

Dexin NDS3308T dvb-t rf generator 16in1 dvb-t modulator iptv modulator HD
|
1 |
NMS: network management port |
|
2 |
RF output port |
|
3 |
Reset IP: Reset webmaster IP address, recover it to default IP address |
|
4 |
Link/Act Indicators |
|
5 |
Data Input/Output 1/2 (SFP) |
|
6 |
Power switch |
|
7 |
AC Power Socket |
|
8 |
Grounding |
Product Overview
NDS3308T 8in1 (or 16in1) DVB-T modulator is an all-in-one device developed by DEXIN. It supports maximum 256 (or 512) IP input through the GE/SFP port and has 8 (or 16) multiplexing channels and 8 (or 16) DVB-T modulating channels of non-adjacent carriers (50MHz~960MHz). The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
* 3 GE ports (max 256 IP in):
Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out (for 8 dvb-t out verison)
Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out (for 16 dvb-t out verison)
Data port (located on front panel), max 128 IP in
* Max 840Mbps for each input
* Supports accurate PCR adjusting
* Supports PID remapping and PSI/SI editing
* Supports up to 180 PIDs remapping per channel
* Support 8 (or 16) multiplexed TS over UDP/RTP/RTSP output
* 8 (or 16) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
* Supports RS (204,188) encoding
* Support Web-based Network management Product Overview
Inner Principle Chart
Version I-for 8 carriers out:
Version II - For 16 carriers out:
Carrier Setting Illustration
Technical Specifications
|
Input |
Input |
Version I: Max 256 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 256 IP, while front-panel Data port can input max 128 IP Version II: Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 256 IP, while front-panel Data port can input max 128 IP |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
256 |
|
Output Channel |
8 (or 16) |
|
|
Max PIDs |
180 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Channel |
8 (or 16) |
|
Modulation Standard |
ETSI EN300 744 |
|
|
Constellation |
QPSK/16QAM/64QAM |
|
|
Bandwidth |
6/7/8 MHz |
|
|
Trans mode |
2K/4K/8K |
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
RF Output |
Interface |
F typed output port for 8 (or 16) non-adjacent carriers |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm (for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Order Guide:
|
|
Version I |
Version II |
|
192 IP input to 8ch DVB-T carriers out, 8 IP out |
x |
|
|
512 IP input to 16ch DVB-T carriers out, 16 IP out |
|
x |
