2. Support front maintenance, can be curved design
3. 800-1500cd/m2 Brightness can be adjustment.
4. 5000:1 High color contrast, make the picture/Video clear and more level
5. High refresh rate (3840Hz),Using high reflesh IC, better viewing effect
- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
500x500mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3.9
-
Pixel:
-
3.91mm
-
Working Temperature:
-
-20~60 ℃
-
Brightness:
-
1200nit
-
Cabinet size:
-
500*1000*80/500*500*80
-
Material:
-
die-cast aluminum
-
Scanning method:
-
1/13 Scan
-
Weight:
-
12.5Kg/ 8Kg
-
Viewing Angle:
-
140/140
-
Warranty:
-
5 years
Quick Details
-
Application:
-
Outdoor
-
Brand Name:
-
King VisionLed
-
Color:
-
Full color
-
Panel Size:
-
500x500mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P3.9
-
Pixel:
-
3.91mm
-
Working Temperature:
-
-20~60 ℃
-
Brightness:
-
1200nit
-
Cabinet size:
-
500*1000*80/500*500*80
-
Material:
-
die-cast aluminum
-
Scanning method:
-
1/13 Scan
-
Weight:
-
12.5Kg/ 8Kg
-
Viewing Angle:
-
140/140
-
Warranty:
-
5 years
Recommend Products
Product Description
1. Easy to install
2. Support front maintenance, can be curved design
3. 800-1500cd/m2 Brightness can be adjustment.
4. 5000:1 High color contrast, make the picture/Video clear and more level
5. High refresh rate (3840Hz),Using high reflesh IC, better viewing effect
2. Support front maintenance, can be curved design
3. 800-1500cd/m2 Brightness can be adjustment.
4. 5000:1 High color contrast, make the picture/Video clear and more level
5. High refresh rate (3840Hz),Using high reflesh IC, better viewing effect
Black light advantage: high contrast, no reflection, the picture is more colorful
1, Higher contrast, black leds will make the background color of the whole screen is more uniform. The contrast of the black and white is 8000:1 vs 3000:1
2. Black light has better stability, high contrast, low brightness to be softer color. The brightness of the black and white is 1500 cd/m2 vs 2000 cd/m2.
3. The black lamp consumes less power than the white light, which is more energy-saving and environmentally friendly. The power consumption of the black tube is 350w/m2, and the power consumption of the white tube is 410w/m2.
4. When the screen is not lit, the appearance color is the same and the display is more beautiful.
2. Black light has better stability, high contrast, low brightness to be softer color. The brightness of the black and white is 1500 cd/m2 vs 2000 cd/m2.
3. The black lamp consumes less power than the white light, which is more energy-saving and environmentally friendly. The power consumption of the black tube is 350w/m2, and the power consumption of the white tube is 410w/m2.
4. When the screen is not lit, the appearance color is the same and the display is more beautiful.
King Vionled Customers' Projects
Specification
|
Outdoor Rental led screen specification
|
|
|
|
|||
|
Pixel
|
2.97mm
|
3.91mm
|
4.81mm
|
|||
|
LED Encapsulation
|
SMD1921
|
SMD1921
|
SMD1921
|
|||
|
Brightness
|
5000nit
|
5000nit
|
5000nit
|
|||
|
Module Size(mm)
|
250x250
|
250x250/ 250×500
|
250×500/250x250
|
|||
|
Cabinet Size
|
500×1000×80/500x500x80
|
500×1000×80/500x500x80
|
500×1000×80/500x500x80
|
|||
|
Material
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
|||
|
Scan Method
|
1/14 Scan
|
1/8 Scan
|
1/13 Scan
|
|||
|
Weight
|
8Kg
|
12.5Kg/ 8Kg
|
12.5Kg/ 8Kg
|
|||
|
Cabinet Resolution
|
84x168/84x84dots
|
256x128dots / 128x128dots
|
104x208dots/104x104dots
|
|||
|
Pixel Density
|
112896Pixel/㎡
|
65536 Pixel/㎡
|
43264 Pixel/㎡
|
|||
|
Refresh Frequency
|
≥1920Hz
|
|
|
|||
|
|
|
|
|
|||
|
Viewing Angle
|
140/140
|
140/140
|
140/140
|
|||
|
Working Voltage
|
110-220Volt/50/60hz
|
110-220Volt/50/60hz
|
110-220Volt/50/60hz
|
|||
|

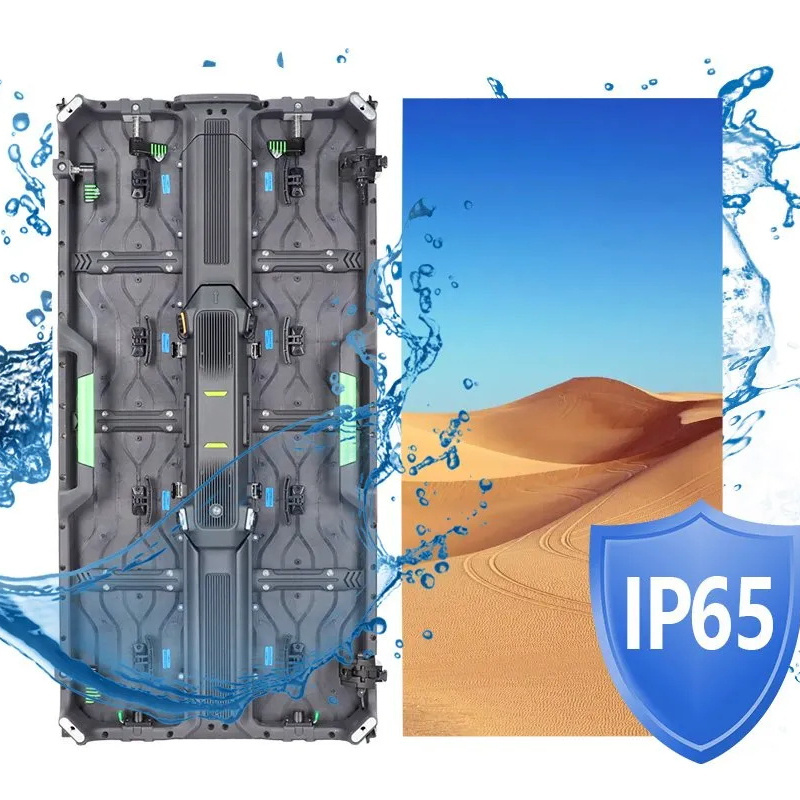

IP waterproof
|
IP65
|
IP65
|
IP65
|
|||
|
Optimal Viewing Distance
|
≥ 2m
|
≥ 3m
|
≥ 4m
|
|||
|
Working Temperature
|
-20~60 ℃
|
- 20~60℃
|
-20~60 ℃
|
|||
