Quick Details
-
Brand Name:
-
NOVACELL
-
Model Number:
-
NV-IFR36V100Ah
-
Battery Size:
-
36V 100Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
40kg
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Rated Capacity:
-
100Ah
-
Nominal Voltage:
-
38.4V 36V
-
Cell:
-
3.2V 6Ah OR 3.2V 50Ah 100Ah 200Ah
-
Max charging current:
-
100Ah or custom
-
Dimension:
-
433mm*268mm*146mm or custom
-
Communication:
-
RS485 RS332 CANBus blue tooth 4G
-
BMS:
-
Integrated Battery Management System
-
Cycle life:
-
3500 Cycles
-
Warranty:
-
3years, 36 months
-
Name:
-
36V e bike battery 36v 100ah for AGV Car Golf cart
-
Certification:
-
CE/RoHS/KC/BIS/IEC62133/PSE/UN38.3/MSDS
Quick Details
-
Storage Type:
-
-20~25℃
-
Anode Material:
-
LFP
-
Application:
-
Golf Carts, Electric Folklifts, electric vehicles
-
Brand Name:
-
NOVACELL
-
Model Number:
-
NV-IFR36V100Ah
-
Battery Size:
-
36V 100Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
40kg
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Rated Capacity:
-
100Ah
-
Nominal Voltage:
-
38.4V 36V
-
Cell:
-
3.2V 6Ah OR 3.2V 50Ah 100Ah 200Ah
-
Max charging current:
-
100Ah or custom
-
Dimension:
-
433mm*268mm*146mm or custom
-
Communication:
-
RS485 RS332 CANBus blue tooth 4G
-
BMS:
-
Integrated Battery Management System
-
Cycle life:
-
3500 Cycles
-
Warranty:
-
3years, 36 months
-
Name:
-
36V e bike battery 36v 100ah for AGV Car Golf cart
-
Certification:
-
CE/RoHS/KC/BIS/IEC62133/PSE/UN38.3/MSDS

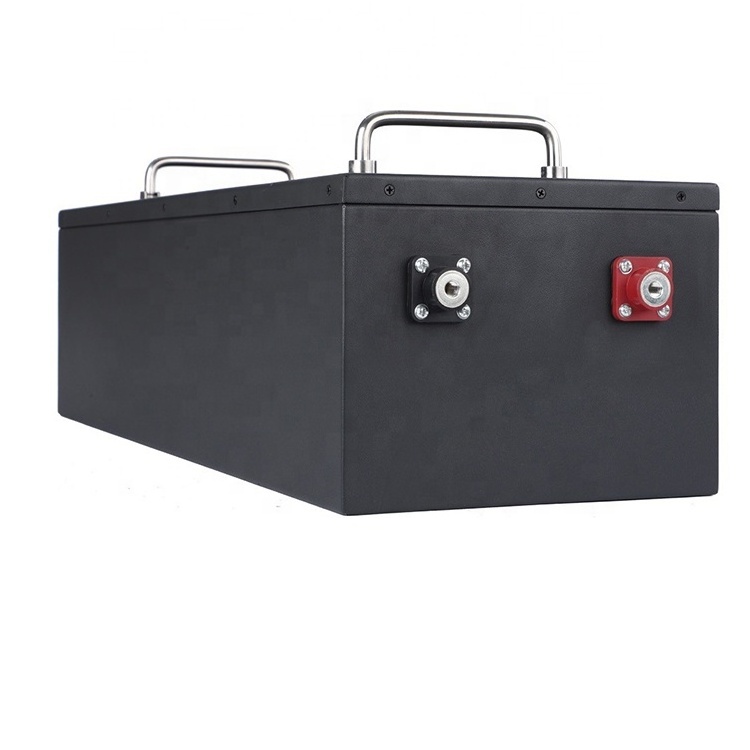

Rechargeable lithium LFP battery pack 36V e bike battery 36v 100ah for AGV Car Golf cart
Product Advantage
1.
Safety: safest battery, CE UL approved, built-in PCM/BMS
2. Eco-friendly and Green energy, no toxic material contained
3. Long life cycle:> 3000 times, 6-8 times longer than lead acid battery
4. No memory effect, highly efficient, charges anytime
5. Small size and light weight: 1/2 size& weight smaller than lead acid battery
6. Good performance in high temperature
7. Low self-discharge rate: < 3% monthly
Product Description
|
Rechargeable lithium LFP battery pack 36V e bike battery 36v 100ah for AGV Car Golf cart
|
|
|
|
Model No
|
36V100AH
|
|
|
Battery Size
|
12S/36V/100Ah
|
|
|
Nominal Voltage
|
38.4V
|
|
|
Nominal Capacity
|
100Ah
|
|
|
Charing Voltage
|
43.8V
|
|
|
Charing Current
|
≤100A
|
|
|
Discharging Current
|
≤100A
|
|
|
Peak Current
|
120A
|
|
|
cut off discharge current
|
24.0V
|
|
|
Cell
|
32700/LiFePO4 Cylinderial Cell/prismatic cell
|
|
|
internal resistance
|
≤100mΩ
|
|
|
Net Weight
|
40.0Kg±1Kg
|
|
|
Dimension
|
433mm*268mm*146mm or Custom
|
|
|
Battery Case
|
Iron (Insulation painting)
|
|
|
BMS
|
Short circuit protection, overcharge protection, over discharge protection, over current protection, temperature protection,
equalization, etc. |
|
|
Protocol
|
RS485 / RS232 or CAN BUS
|
|
Related Products
|
No.
|
Model
|
Battery Type
|
Nominal voltage(V)
|
Nominal capacity(AH)
|
|
1
|
NV-LFP12V3AH
|
LiFePO4/NCM/NCA
|
12V/24V/48V/60V/72V
|
3AH
|
|
2
|
NV-LFP12V5AH
|
LiFePO4/NCM/NCA
|
Customization
|
5AH
|
|
3
|
NV-LFP12V6AH
|
LiFePO4/NCM/NCA
|
Customization
|
6AH
|
|
4
|
NV-LFP12V9AH
|
LiFePO4/NCM/NCA
|
Customization
|
9AH
|
|
5
|
NV-LFP12V10AH
|
LiFePO4/NCM/NCA
|
Customization
|
10AH
|
|
6
|
NV-LFP12V12AH
|
LiFePO4/NCM/NCA
|
12V/24V/48V/60V/72V
|
12AH
|
|
7
|
NV-LFP12V15AH
|
|
|
15AH
|
|
8
|
NV-LFP12V18AH
|
|
|
18AH
|
|
9
|
NV-LFP12V20AH
|
LiFePO4/NCM/NCA
|
|
20AH
|
|
10
|
NV-LFP12V30AH
|
|
|
30AH
|
|
11
|
NV-LFP12V35AH
|
LiFePO4/NCM/NCA
|
12V/24V/48V/60V/72V
|
35AH
|
|
12
|
NV-LFP12V40AH
|
|
|
40AH
|
|
13
|
NV-LFP12V50AH
|
|
|
50AH
|
|
14
|
NV-LFP12V60AH
|
LiFePO4/NCM/NCA
|
|
60AH
|
|
15
|
NV-LFP12V75AH
|
|
|
75AH
|
|
16
|
NV-LFP12V80AH
|
LiFePO4/NCM/NCA
|
12V/24V/48V/60V/72V
|
80AH
|
|
17
|
NV-LFP12V100AH
|
LiFePO4/NCM/NCA
|
|
100AH
|
|
18
|
NV-LFP12V120AH
|
|
|
120AH
|
|
19
|
NV-LFP12V150AH
|
|
|
150AH
|
|
20
|
NV-LFP12V160AH
|
|
|
160AH
|
|
21
|
NV-LFP12V200AH
|
LiFePO4/NCM/NCA
|
12V/24V/48V/60V/72V
|
200AH
|
|
22
|
NV-LFP12V300AH
|
|
|
300AH
|
|
23
|
NV-LFP12V400AH
|
|
|
400AH
|
|
24
|
NV-LFP12V500AH
|
|
|
500AH
|
|
25
|
NV-LFP12V600AH
|
|
|
600AH
|
Product packaging
1) Package: PI965 & PI967 package requirement
2) Shipping: Express,Air,Sea or Parcel Post
Product Application
> Wind-Solar energy system
> Solar street lights > Off-grid energy storage
> Household energy storage
> Telecom backup system
> Mobile base stations
> Emergency backup energy sources
> Uninterruptible power system
> Grid load shifters
> Electric Golf Car
> Electric vehicles
> Electric motorcycles
> Electric forklifts
> Electric boats
