Quick Details
-
Brand Name:
-
NOYAFA
-
Model Number:
-
SST-8601S
-
Name:
-
Ethernet Lan Cable Tester
-
Tone mode:
-
2 Tones, adjustable
-
Function 1:
-
Continuity, length test
-
Function 2:
-
PING, PoE detect
-
Tracing cable types:
-
Cat5e,cat6,cat7,telephone cable, coax cable, power cable
-
Length measurement:
-
1-2000m
-
Transmitter Size::
-
185 x 80 x 32mm
Quick Details
-
Warranty:
-
3 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOYAFA
-
Model Number:
-
SST-8601S
-
Name:
-
Ethernet Lan Cable Tester
-
Tone mode:
-
2 Tones, adjustable
-
Function 1:
-
Continuity, length test
-
Function 2:
-
PING, PoE detect
-
Tracing cable types:
-
Cat5e,cat6,cat7,telephone cable, coax cable, power cable
-
Length measurement:
-
1-2000m
-
Transmitter Size::
-
185 x 80 x 32mm
Product Description

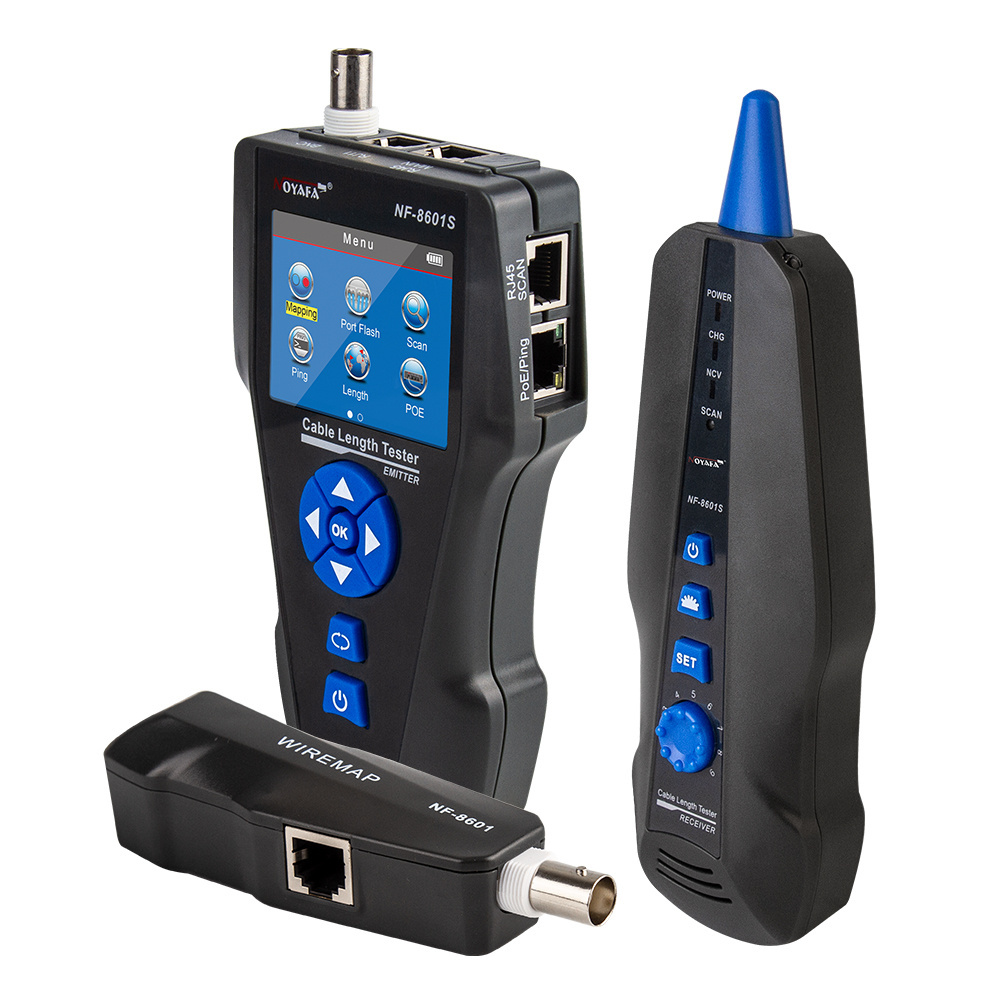

RJ11 RJ45 BNC NF-8601S LAN Network Cable Tester fiber optic data cable tester
SST-8601S, u pg rated based on NF-8601, provides full cable testing on different category network, coax, or telephone cable. The intelligent wiremap' feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located. (usingTDR techonology:Time Domain Reflectometry). Besides, finding cables easier and tracing with AC fliter, or locating network port using hub blink feature. It can also test the presence of PoE and PING functions, all these make it a must tool for each network
Specification
|
SST-8601S Transmitter specifications
|
value
|
|
|
Indictor
|
LCD 320x240 mm, with back light
|
|
|
Cable test types
|
STP/UTP 5E,6E network , telephone , coacial cable
|
|
|
Max. distance of wiremap
|
1000m
|
|
|
Max. distance of tracing
|
1000m
|
|
|
Max. distance of cable length
|
1000m
|
|
|
Max. distance of calibration
|
50m
|
|
|
Accuracy
|
up to 98%(after calibration)
|
|
|
Compatible connectors
|
RJ11,RJ45, PING/POE,BNC
|
|
|
Cable map indication
|
LCD (#1-#8)
|
|
|
Battery Type
|
3.7V lithium battery 1800mAh
|
|
|
Work temperature / humidity
|
10℃ ~ -60℃ / 0℃~70℃
|
|
|
Dimension(LxWxD)
|
173x92x34mm
|
|
|
SST-8601S
Receiver specifications
|
RJ45, RJ11, BNC,PoE &Ping
|
|
|
Cable hunting
|
RJ11,RJ45, BNC
|
|
|
Types of cable
|
≥ 2 cores
|
|
|
Battery Type
|
3.7V lithium battery 1800mAh
|
|
|
Dimension(LxWxD)
|
183x58x35 mm
|
|
|
SST-8601S Remote unit specifications
|
|
|
|
Compatible with connectors
|
RJ11,RJ45,BNC
|
|
|
Dimensions (LxWxD)
|
106x32x30mm
|
|
Main functions
* PING Testing.
* Detect PoE presence and how much the voltage is.
* Hub blink for locating network port by the flashing port light on Hub/Switch.
* Wiremap with length, testing open, short, cross, reverse, display the fault distance.
* TDR theory to measure cable length and provide distance to fault information.
* To perform split pair test on network cable to solve the potential problem of slow speed.
* To quickly find the targeted cable without AC noise.
* Two scan modes：ordinary switch/PoE switch.
Benefits
* Receiver can also be used to detect AC Voltage presence.
* import and export data from comupter (50 sets, txt format).
* Rechargable Lithium battery for long-time work.
* Adjustable auto-off time, lamp for work in dark.
Technical parameters
* . Overall dimensions
Main tester: 173X92X34mm; Receiver: 183X58X35mm
Remote identifier: 106X32X30mm.
* . Display
2.8 inch LCD Color screen:320X240 (Effective visible area 60X45mm).
* . Power supply
3.7V rechargeable lithium battery1800mAh
* . Tracing cable types
STP/UTP Cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Testing cable types
STP/UTP Cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Operating environment temperature/humidity
-10°C ~+60°C /20%~70%;
* . Testing device interface
Main unit: RJ45 (M), RJ45 (S), PoE/PING, RJ11, BNC ports, Remote identifier: RJ45, RJ11, BNC ports.
* . Length measurement
Range: 1-1500m;
Calibration precision: 2% (+/-0.5m, or +/-1.5 feet); (calibration; cable>50m) measurement precision: 3% (+/-0.5m, or +/-1.5 feet);
Display unit: meter, feet, yards.
* . Length calibration
User can set a length value at a known length, and then use the calibrated data, (the cable should be 20m at least, but a
cable，50m is recommended)
* . Cable wiremapping
Open, short, reverse , cross, split pair, etc.
* . PoE/PING Testing
* . Tracing cable
Locate targeted cable among lots of cables.
* . Automatic power-off
Users can choose time to turn off the tester automatically.
* PING Testing.
* Detect PoE presence and how much the voltage is.
* Hub blink for locating network port by the flashing port light on Hub/Switch.
* Wiremap with length, testing open, short, cross, reverse, display the fault distance.
* TDR theory to measure cable length and provide distance to fault information.
* To perform split pair test on network cable to solve the potential problem of slow speed.
* To quickly find the targeted cable without AC noise.
* Two scan modes：ordinary switch/PoE switch.
Benefits
* Receiver can also be used to detect AC Voltage presence.
* import and export data from comupter (50 sets, txt format).
* Rechargable Lithium battery for long-time work.
* Adjustable auto-off time, lamp for work in dark.
Technical parameters
* . Overall dimensions
Main tester: 173X92X34mm; Receiver: 183X58X35mm
Remote identifier: 106X32X30mm.
* . Display
2.8 inch LCD Color screen:320X240 (Effective visible area 60X45mm).
* . Power supply
3.7V rechargeable lithium battery1800mAh
* . Tracing cable types
STP/UTP Cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Testing cable types
STP/UTP Cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Operating environment temperature/humidity
-10°C ~+60°C /20%~70%;
* . Testing device interface
Main unit: RJ45 (M), RJ45 (S), PoE/PING, RJ11, BNC ports, Remote identifier: RJ45, RJ11, BNC ports.
* . Length measurement
Range: 1-1500m;
Calibration precision: 2% (+/-0.5m, or +/-1.5 feet); (calibration; cable>50m) measurement precision: 3% (+/-0.5m, or +/-1.5 feet);
Display unit: meter, feet, yards.
* . Length calibration
User can set a length value at a known length, and then use the calibrated data, (the cable should be 20m at least, but a
cable，50m is recommended)
* . Cable wiremapping
Open, short, reverse , cross, split pair, etc.
* . PoE/PING Testing
* . Tracing cable
Locate targeted cable among lots of cables.
* . Automatic power-off
Users can choose time to turn off the tester automatically.
