Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
220v--440v
-
Dimension(L*W*H):
-
1160*1650*2000mm
-
Weight (KG):
-
400 kg
-
Machine Type:
-
Cement Block Maker
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Model:
-
QTJ4-40
-
power:
-
9.6kw
-
Weight:
-
1.5T
-
Pallet size:
-
850-550-20mm
-
Molding cycle:
-
35-40s
-
Worker:
-
3-5 Workers
-
Material:
-
Sand Flyash Cement Stone
-
Capacity:
-
3000-5000 Pcs/day
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, Other
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongBaoYuan
-
Voltage:
-
220v--440v
-
Dimension(L*W*H):
-
1160*1650*2000mm
-
Weight (KG):
-
400 kg
-
Machine Type:
-
Cement Block Maker
-
Block Type:
-
Hollow Solid Paver Block Curbstone
-
Model:
-
QTJ4-40
-
power:
-
9.6kw
-
Weight:
-
1.5T
-
Pallet size:
-
850-550-20mm
-
Molding cycle:
-
35-40s
-
Worker:
-
3-5 Workers
-
Material:
-
Sand Flyash Cement Stone
-
Capacity:
-
3000-5000 Pcs/day
Product Description
used paver block machine coloree block and paver machine interlocking paver brick making machine
Video Link in Youtube :https://youtu.be/k-PWHOhZhhQ
https://youtu.be/anog-ktDuRM

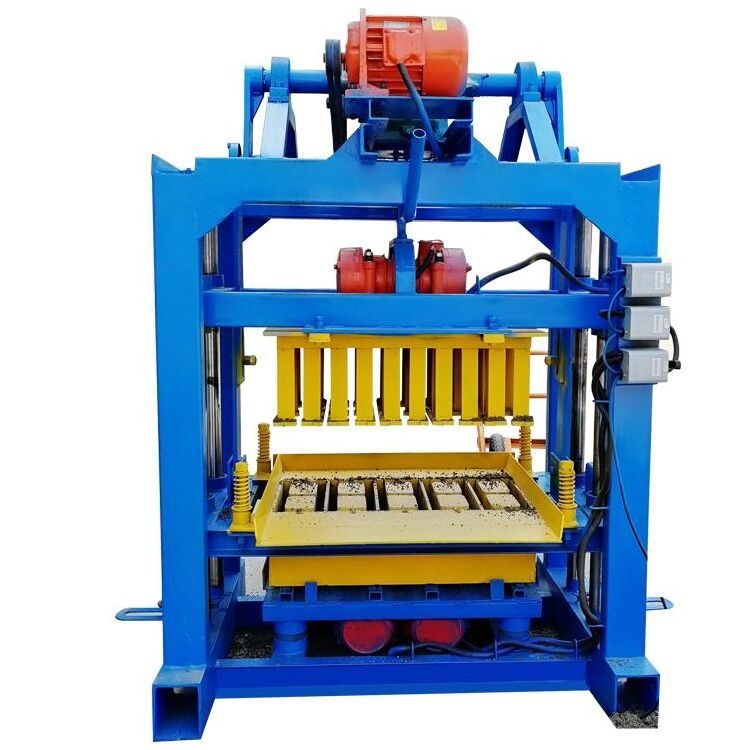

QTJ4-40 Block Forming Machine is one of the well sold models of our factory, This machine is very easy in operating. For this machine , a larger reductor of high quality is equpped, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged.
(1) adopt 350 reductor when other's 250 reductor
(2) for the steel frame 5mm, much stronger
(3) 2.2kw mortor, 3kw vibrator(upper mould) and 2x2.2kw vibrator(down mould), the hollow block
pressure 8-10Mpa, solid blocks pressure 10-12Mpa.
(4) For the moulds: high temperature carburizing heat treatment, it is durable.
(5) low investment for small scaled factory.
| Specification of QT4-40 manual type concrete block machine | |
| Dimension size | 1160×1650×2000mm |
| weight of block machine | 1500kgs |
| Pallet size | 850x450x25mm |
| Molding cycle | 35-40s |
| Host machine power | 9.6kw |
| Vibration force | 30kn |
| Warranty | one year |
| mixer | JQ350 |
The block molds is customizable and replaceable to produce different kinds of blocks according to your requirement.
| QTJ4-40 manual block machine production capacity | |||
| Size (LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
| 400X100X200 | 7 | 600-700 | 4800-5600 |
| 400X150X200 | 5 | 450-500 | 3600-4000 |
| 400X200X200 | 4 | 350-400 | 2800-3200 |
| 400X250X200 | 3 | 250-300 | 2000-2400 |
Detailed Images
Customers
Till now,about 6000 customers have visited our factory. Also we have engineers staying abroad to help you install machines and training your workers at your side.
Our Factory
How To Contact Us
If you are interested with our products, please don't hesitate to contact us. You can tell me the following questions, Then I can send you accurate quotation soon, including additional discount!
1. Which machine do you need? like brick making machine,mixer,batching plant,or the whole line, etc.
2. what is your raw material plan to process? like clay,sand,cement,concrete,slag, etc.
3. The capacity you need. Like 1000 pieces per hour or 2000 pieces per day.
4. Your contact information. Both Email and phone number are essential, we can contact you easier.
