Quick Details
-
Material:
-
PE+Aluminum foil+OPP
-
Color:
-
Customized color.
-
Feature:
-
Eco-Friendly, custom
-
Printing:
-
One side or two sides.
-
Package:
-
24rolls/ctn
-
Usage:
-
underground protection, cable, oil, fire, water
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
KING KNIT
-
Model Number:
-
KKL-DT
-
Material:
-
PE+Aluminum foil+OPP
-
Color:
-
Customized color.
-
Feature:
-
Eco-Friendly, custom
-
Printing:
-
One side or two sides.
-
Package:
-
24rolls/ctn
-
Usage:
-
underground protection, cable, oil, fire, water
|
Product:
|

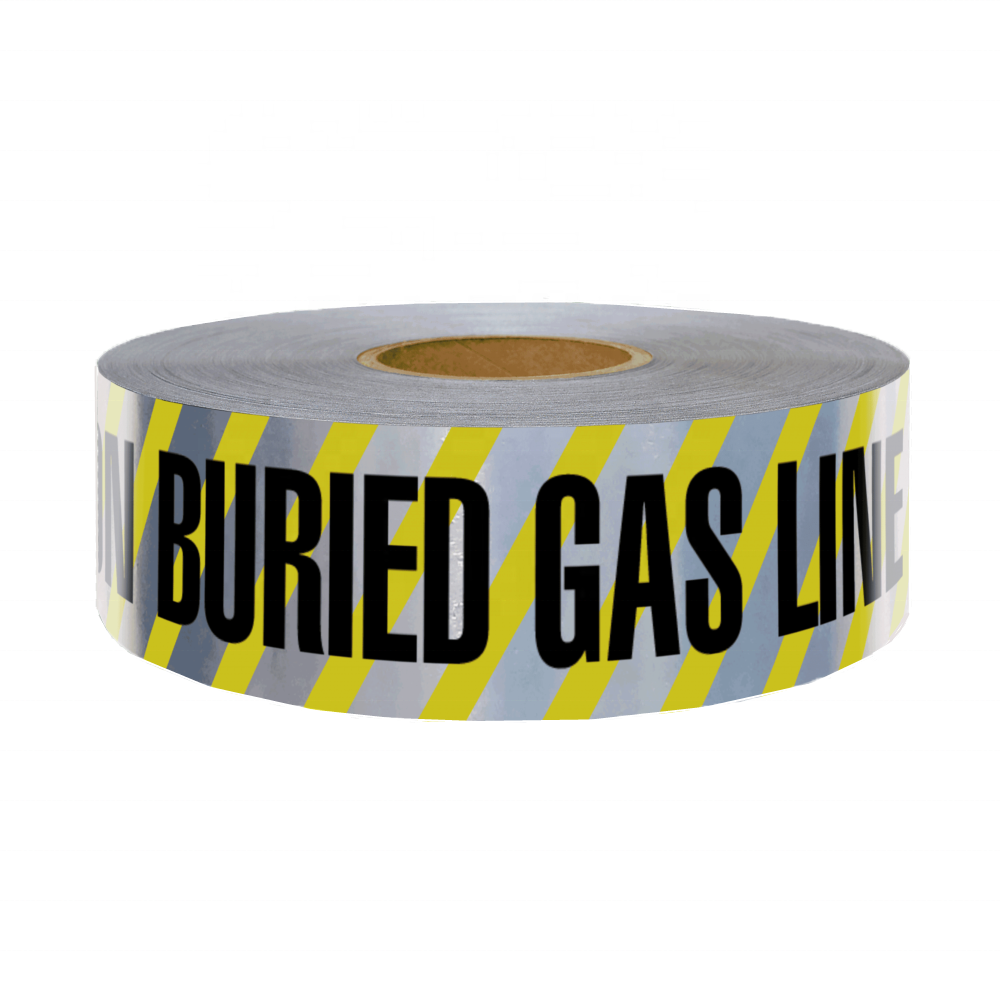

Detectable Underground Warning Tape / Aluminum Foil Detectable Tape
|
|
Material:
|
BOPP + Aluminum Foil+ LLDPE
|
|
Application:
|
• underground utilities
• construction
• hardware
|
|
Size:
|
Length: 50m-1000m or as customized
|
|
|
Width: 50mm-200mm or as customized
|
|
|
Thickness: 100microns-500microns
or as customized
|
|
Color:
|
Yellow, red, white, blue, green,
or customized
|
|
Printing:
|
''Telecommunication'', ''CATV'', ''Water Lines'', ''Sewer Lines'', ''Reclaimed Water'',''Electrical Lines'', ''Gas Lines''.etc.
|
|
|
As customized
|
* Detectable Underground Warning Tape is perfect for the location and protection of underground cable and pipe.
*
Our detectable tapes meet or exceed industry standards.
*
It is a three-layer design with aluminum foil in the middle and outer layers of plastic.
*
The foil layer allows for inductive and conductive location.
*
When properly placed, this tape helps workers avoid accidental damage to electrical lines, gas lines, communication cables, and other buried utilities.
DIFFETENT MEANINGS
A.P.W.A. COLOR CODES
▲
Red - Electric, Fire
▲
Yellow - Gas, Oil
▲
Blue - Water, Potable Water
▲
Green - Sewer, Storm Drain
▲
Orange - Fiber Optic, Telephone
▲
Purple - Reclaimed Water, Non-Potable Water
|
PRODUCT ANALYSIS
PHYSICAL PROPERTIES AND TEST DATA
|
|
|
|
|||
|
Property
|
Method
|
U.S. Value
|
Metric Value
|
|||
|
Thickness Overall
|
ASTM D-2103
|
4 mil (Sample)
|
.1 mm (Sample)
|
|||
|
Thickness Foil
|
ASTM D-2103
|
0.28 mil
|
7 microns
|
|||
|
Weight
|
ASTM D-2103
|
27.5 lbs / 1000 ft2
|
13.4 kg / 100 m2
|
|||
|
Tensile Strength
|
ASTM D-882
|
28.0 lbs/in width (6086 psi)
|
124.6 N (42.0 MPa)
|
|||
|
Elongation
|
ASTM D-882
|
75% at break
|
75% at break
|
|||
|
Printability
|
ASTM D-2578
|
>40 dynes
|
>40 dynes
|
|||
