Quick Details
-
Production Capacity:
-
80 carton/min
-
Weight (KG):
-
1200
-
Voltage:
-
220kv
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
haoteng
-
Dimension(L*W*H):
-
3300x1350x1600mm
-
speed:
-
50-80 catrons/min
-
carton quality:
-
250-350gsm
-
carton size:
-
max.200x80x80mm
Quick Details
-
Function:
-
Wrapping, Sealing, BOXING
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Paper
-
Production Capacity:
-
80 carton/min
-
Weight (KG):
-
1200
-
Voltage:
-
220kv
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
haoteng
-
Dimension(L*W*H):
-
3300x1350x1600mm
-
speed:
-
50-80 catrons/min
-
carton quality:
-
250-350gsm
-
carton size:
-
max.200x80x80mm
Products Description

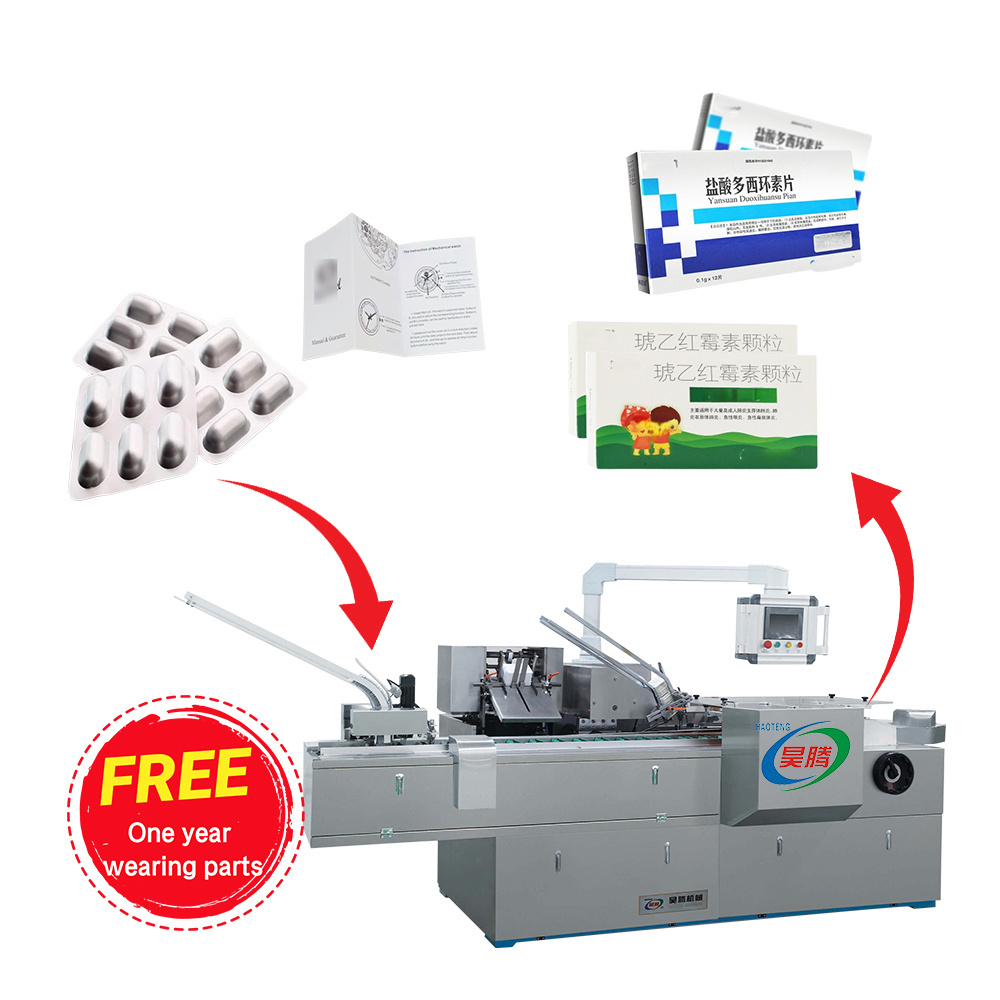

Multifunction Automatic cartoning machine
HTZ series multifunctional automatic cartoning machine is a high-tech packaging machine with many patents developed by Zhejiang HaoTeng Machinery, combining the advanced technology of domestic and foreign packaging machines, according to the actual situation of lighting, pharmaceutical, food, cosmetics and other industries. This product is suitable for cartoning and packaging of
light bulbs, aluminum-plastic boards, pillow packages, bottles, face masks, foodstuffs and other similar articles.
It has the basic functions of opening the carton automatically, cartoning the articles, printing the batch number, sealing the carton and so on. The machine can be used alone or linked with other equipment to form a complete set of production lines, which improves production efficiency and reduces labor costs.
1、Adopting
PLC a
utomatic control system, frequency conversion speed regulation, simple and convenient operation, stable performance.
2、
Photoelectric monitoring
machine operation, error, positioning the wrong part, and automatic shutdown
3、
Automatically sensing
the material, if no product is detected, the carton will not be discharged.
4、Electrical components are all adopted international
famous brand
5、According to the requirements, can replace a variety of specifications of packaging, do not need to replace any parts,
easy to regulate
6、It can be linked with blister machine, pillow packing machine, shrink film packing machine and other equipment to form a production
linkage line
.
Product Paramenters
|
Power
|
AC380V 3Phase 5wire system 50 Hz
Total power 1.5 Kw
|
|
Dimension (L*W*H)
|
3200*1350*1600 mm
|
|
Machine weight
|
1200Kg
|
|
Production capacity
|
Machine speed 50-90 pcs/min
Paper folding machine 50-90 pcs/min
|
|
gas consumption
|
20m3/h (pressure 0.5-0.7 MPa)
|
|
Application material
|
Paper box :250-350 g/m2(up to box size)
Max size(L*W*H):200*80*60mm
Min size(L*W*H):55*35*14mm
|
|
|
Instruction paper:55-65 g/m2
Max size(L*W):240*170mm
Min size(L*W);110*90mm
|
|
Air compression
|
0.5 MPa rate of flow >0.6 m3/min
|
