Quick Details
-
Certificate:
-
CE RoHS Fcc
-
Warranty:
-
3 Years Warranty
-
Work Time (h):
-
24 hours
-
Controller type:
-
MPPT Solar Charge Controller
-
Product name:
-
EPEVER AN Series MPPT Solar Charge Controller
-
MPP voltage range:
-
72V/108V/144V
-
Operating temperature range:
-
-20°C~+60°C
-
Charging current:
-
50A/60A/80A/100A
-
Communication mode:
-
RJ45/RS485
-
Monitoring:
-
WIFI module
-
Enclosure:
-
IP20
-
Battery type:
-
Lead-acid (Sealed(Default)/Gel/Flooded)/Lithium /User
-
Battery input voltage range:
-
8V~32V/8V~68V
-
Max PV Power:
-
625-5000w
-
Max PV Voltage:
-
200V
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
AN Series
-
Certificate:
-
CE RoHS Fcc
-
Warranty:
-
3 Years Warranty
-
Work Time (h):
-
24 hours
-
Controller type:
-
MPPT Solar Charge Controller
-
Product name:
-
EPEVER AN Series MPPT Solar Charge Controller
-
MPP voltage range:
-
72V/108V/144V
-
Operating temperature range:
-
-20°C~+60°C
-
Charging current:
-
50A/60A/80A/100A
-
Communication mode:
-
RJ45/RS485
-
Monitoring:
-
WIFI module
-
Enclosure:
-
IP20
-
Battery type:
-
Lead-acid (Sealed(Default)/Gel/Flooded)/Lithium /User
-
Battery input voltage range:
-
8V~32V/8V~68V
-
Max PV Power:
-
625-5000w
-
Max PV Voltage:
-
200V
Product Details

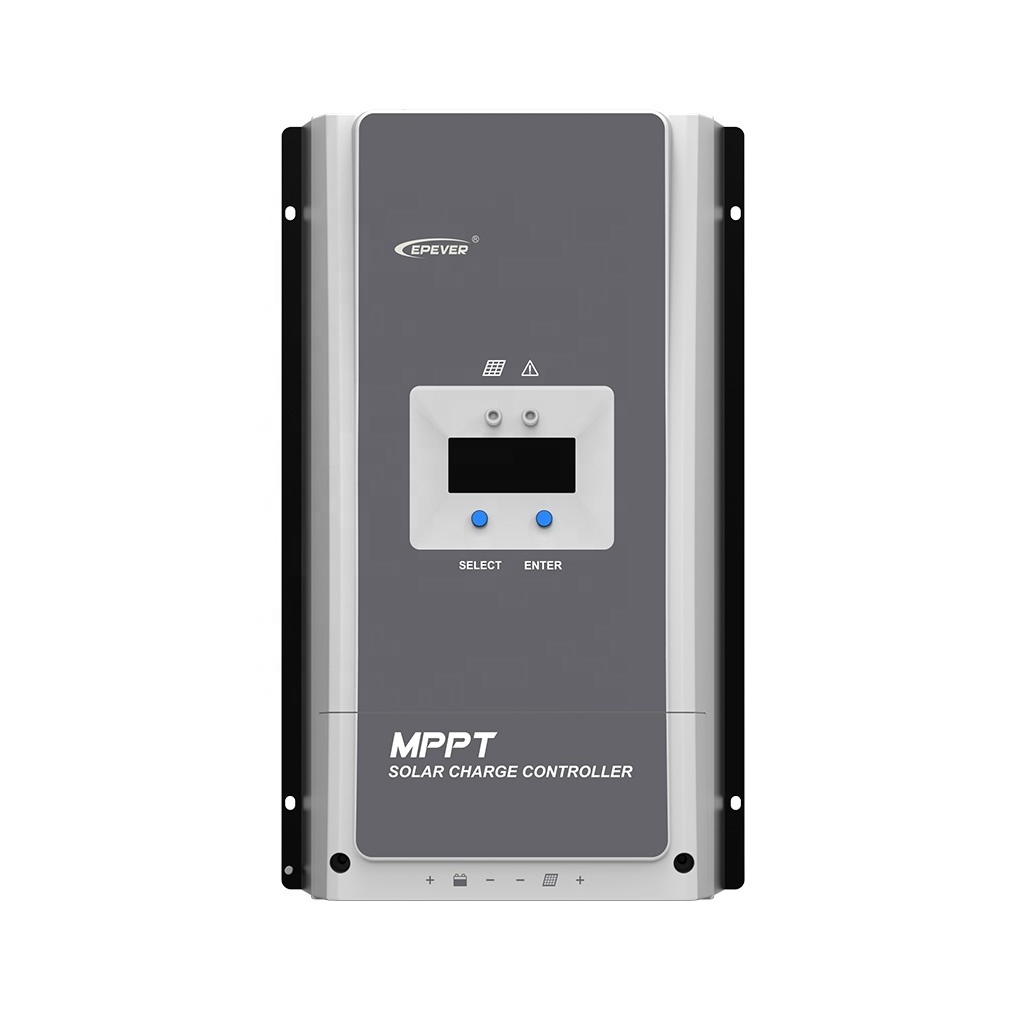

Tracer-AN series (50A-100A)
MPPT charge controller is not only capable of up to 99.5% tracking efficiency in any situation but also provides up to 98% conversion efficiency. This crucial device automatically detects the 12V/24V system and supports multiple battery types including sealed and lithium batteries. The basic symbols displayed on the controller LCD screen helps to diagnostic the system faults simply. With intelligent protection features, this controller can be easily
performed in many areas such as RV, communication stations, household systems, and field monitoring, etc.
performed in many areas such as RV, communication stations, household systems, and field monitoring, etc.
Specifications
|
Series
|
Tracer-AN Series 50-100A
|
|
|
|
|
||||
|
Model
|
6210AN
|
5415AN
|
6415AN
|
8415AN
|
10415AN
|
||||
|
Nominal system voltage
|
12/24VDC or Auto
|
12/24/36/48VDC or Auto
|
|
|
|
||||
|
Battery type
|
Lead-acid (Sealed(Default)/Gel/Flooded)/Lithium (LiFePO4/ Li(NiCoMn)O2)/User
|
|
|
|
|
||||
|
Battery input voltage range
|
8V～32V
|
8V～68V
|
|
|
|
||||
|
Rated charge current
|
60A
|
50A
|
60A
|
80A
|
100A
|
||||
|
Rated charge power
|
750W/12V
|
625W/12V
|
750W/12V
|
1000W/12V
|
1250W/12V
|
||||
|
|
1500W/24V
|
1250W/24V
|
1500W/24V
|
2000W/24V
|
2500W/24V
|
||||
|
|
/
|
1875W/36V
|
2250W/36V
|
3000W/36V
|
3750W/36V
|
||||
|
|
/
|
2500W/48V
|
3000W/48V
|
4000W/48V
|
5000W/48V
|
||||
|
Max. conversion efficiency
|
98.00%
|
98.30%
|
98.60%
|
98.50%
|
98.60%
|
||||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|
||||
|
Max. PV open circuit voltage
|
100V①;92V②
|
150V;138V
|
|
|
150V;138V
|
||||
|
MPP voltage range
|
(Battery Voltage+2V) ～72V②
|
(Battery Voltage +2V)～108V②
|
|
|
|
||||
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
|
|
|
|
|
||||
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
|
|
|
|
|
||||
|
Float voltage
|
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
|
|
|
|
|
||||
|
Low voltage reconnect voltage
|
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
|
|
|
|
|
||||
|
Low voltage disconnect voltage
|
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
|
|
|
|
|
||||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
|
||||
|
Temperature compensation
|
-3mV/℃/2V(Default)
|
|
|
|
|
||||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
|
||||
|
Enclosure
|
IP20
|
|
|
|
|
||||
|
RS485 interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)③
|
|
|
|
|
||||
|
Grounding
|
Common negative grounding
|
|
|
|
|
||||
|
Operating temperature range
|
-25℃～+60℃(Derate above 45℃)
|
|
|
|
|
||||
|
Model
|
5420AN
|
6420AN
|
8420AN
|
10420AN
|
|||
|
Nominal system voltage
|
12/24/36/48VDC or Auto
|
|
|
|
|||
|
Battery type
|
Lead-acid (Sealed(Default)/Gel/Flooded)/Lithium (LiFePO4/ Li(NiCoMn)O2)/User
|
|
|
|
|||
|
Battery input voltage range
|
8V～68V
|
|
|
|
|||
|
Rated charge current
|
50A
|
60A
|
80A
|
100A
|
|||
|
Rated charge power
|
625W/12V
|
750W/12V
|
1000W/12V
|
1250W/12V
|
|||
|
|
1250W/24V
|
1500W/24V
|
2000W/24V
|
2500W/24V
|
|||
|
|
1875W/36V
|
2250W/36V
|
3000W/36V
|
3750W/36V
|
|||
|
|
2500W/48V
|
3000W/48V
|
4000W/48V
|
5000W/48V
|
|||
|
Max. conversion efficiency
|
98.30%
|
98.10%
|
98.50%
|
98.50%
|
|||
|
Tracking efficiency
|
≥99.5%
|
|
|
|
|||
|
Max. PV open circuit voltage
|
200V;180V
|
|
|
200V;180V
|
|||
|
MPP voltage range
|
(Battery Voltage+2V)～144V②
|
|
|
|
|||
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
|
|
|
|
|||
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
|
|
|
|
|||
|
Float voltage
|
Gel/Sealed/Flooded:13.8V,User-defined:9-17V
|
|
|
|
|||
|
Low voltage reconnect voltage
|
Gel/Sealed/Flooded:12.6V,User-defined:9-17V
|
|
|
|
|||
|
Low voltage disconnect voltage
|
Gel/Sealed/Flooded:11.1V,User-defined:9-17V
|
|
|
|
|||
|
Self-consumption
|
98mA/12V;60mA/24V;50mA/36V;46mA/48V
|
|
|
|
|||
|
Temperature compensation
|
-3mV/℃/2V(Default)
|
|
|
|
|||
|
Relative humidity
|
5% to 95% (N.C.)
|
|
|
|
|||
|
Enclosure
|
IP20
|
|
|
|
|||
|
RS485 interface
|
RS485(5VDC/200mA, Two RJ45 ports in parallel)③
|
|
|
|
|||
|
Grounding
|
Common negative grounding
|
|
|
|
|||
|
Operating temperature range
|
-25℃～+60℃(Derate above 45℃)
|
|
|
|
|||
①At minimum operating environment temperature
②At 25℃ environment temperature
③The maximum PV open circuit voltage must never exceed 138V or 180V at 25℃ environment temperature
②At 25℃ environment temperature
③The maximum PV open circuit voltage must never exceed 138V or 180V at 25℃ environment temperature
Features
-
CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
-High quality & low failure rate components of ST and Infineon to ensure the product’s life
-Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%
-Maximum DC/DC transfer efficiency is as high as 98.6%★, full load efficiency is up to 98%★
-Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
-The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
-The wider range of MPP operating voltage.
-Auto control system to limit the charging power & current go over the rated value.
-Support 4 charging options: Sealed, Gel, Flooded and User.
-Support the lead-acid and lithium batteries
-Real-time energy recording and statistical function
-Automatic over-temperature power reduction function
-Hundred percent full load operation in working environment temperature range within charging & discharging
-Support up to 6 units in parallel to expand system
-Load relay control external load switch signal to realize diversified load work modes
-The first and the second disconnection of load control, contain two relay’s contact
-Auto-control of utility and generator relay design
-Utility or generator auto-control relays make it easy to compose the hybrid power system
-The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
-Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
-To monitor or set the parameters by using the phone Apps or PC software
-Tracer10415AN@48V system
-High quality & low failure rate components of ST and Infineon to ensure the product’s life
-Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%
-Maximum DC/DC transfer efficiency is as high as 98.6%★, full load efficiency is up to 98%★
-Advanced MPPT control algorithm will minimize the MPP loss rate and loss time
-The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
-The wider range of MPP operating voltage.
-Auto control system to limit the charging power & current go over the rated value.
-Support 4 charging options: Sealed, Gel, Flooded and User.
-Support the lead-acid and lithium batteries
-Real-time energy recording and statistical function
-Automatic over-temperature power reduction function
-Hundred percent full load operation in working environment temperature range within charging & discharging
-Support up to 6 units in parallel to expand system
-Load relay control external load switch signal to realize diversified load work modes
-The first and the second disconnection of load control, contain two relay’s contact
-Auto-control of utility and generator relay design
-Utility or generator auto-control relays make it easy to compose the hybrid power system
-The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
-Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
-To monitor or set the parameters by using the phone Apps or PC software
-Tracer10415AN@48V system
Dimension and accessories
|
Model
|
6210AN
|
5415AN
5420AN
|
6415AN
6420AN
|
8415AN
8420AN
|
10415AN
10420AN
|
|
Dimension
|
340*232*105.2mm
|
261*216*119mm
|
340*236*119mm
|
394*240*134mm
|
394*242*143mm
|
|
Weight
|
3.5kg
|
3.5kg
|
4.5kg
|
6.1kg
|
7.4kg
|
Details Images
Packing
Accessories
WIFI Serial Server
eBox-WIFI-01
Features
*
Realize wireless monitoring function of solar controller and inverter
*Support mobile phone APP, plug and play, simple and convenient to set
*Use high performance CPU with core M4
*Ultra-low power consumption and high speed
data processing capability
*No need of external power supply
*Communication distance up to 50m
*One-key restore the factory settings
*No need of external power supply
*Communication distance up to 50m
*One-key restore the factory settings
Technical Specifications
|
Item
|
eBox-WIFI-01
|
|
Input voltage
|
5VDC(Direct powered by RS485 port )
|
|
Standby power consumption
|
0.20W
|
|
Operation power consumption
|
0.25W
|
|
Communication distance
|
≤50m
|
|
Port baud rate
|
300bps~230400bps(Default 115200)
|
|
Communication
|
RS485 to WIFI
|
|
Interface type
|
RJ45
|
|
Connecting cable
|
Standard network cable (Parallel cable)
|
|
Overall dimension
|
51*67*24.5mm
|
|
Mounting dimension
|
41.2
|
|
Mounting hole size
|
Φ3.2
|
|
Working temperature
|
-35~75℃
|
|
Enclosure
|
IP30
|
|
Net weight
|
39g
|
