* The standard configuration seat is normal seat(in right picture).
* It can be replacement into luxury seats with folding armrest. Not free.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lianke
-
Place of Origin:
-
China
-
Size:
-
3300*1100*1350mm
-
Certification:
-
C.O
-
Max. Loading Capacity:
-
2000 kg
-
Lifting Motor Power:
-
1000 w
-
Drive Motor Power:
-
3000 w
-
Cargo Box Sizes:
-
1800*1100*450 mm
-
Thickness of Cargo Box:
-
Bottom 5mm, side 3mm
-
Front Tire:
-
4.50-14
-
Rear Tire:
-
6.00-16
-
Rear axle type:
-
Double-sprocket rear axle with high and low speed gear
-
Front shock absorption type:
-
Single row large shock absorption
Quick Details
-
Power:
-
> 1000W
-
Voltage:
-
60V
-
Tire Size:
-
4.50-14/6.00-16
-
Brand Name:
-
Lianke
-
Place of Origin:
-
China
-
Size:
-
3300*1100*1350mm
-
Certification:
-
C.O
-
Max. Loading Capacity:
-
2000 kg
-
Lifting Motor Power:
-
1000 w
-
Drive Motor Power:
-
3000 w
-
Cargo Box Sizes:
-
1800*1100*450 mm
-
Thickness of Cargo Box:
-
Bottom 5mm, side 3mm
-
Front Tire:
-
4.50-14
-
Rear Tire:
-
6.00-16
-
Rear axle type:
-
Double-sprocket rear axle with high and low speed gear
-
Front shock absorption type:
-
Single row large shock absorption
Product Descriptions
LK200 electric cargo pedicab customized, mining tricycle pedicab prices
Product Application
Electric mining tricycle pedicab is one of our main products, using electric as power source in mining, sanitation and cleaning. It is also widely used in mine, concentrator, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest, farm and so on.
We recently upgraded the LK200 mining tricycle pedicab which loads 1500kg previous but now it can load 2000kg. but its price is about 30% cheaper than the price of previous mining tricycle pedicab load 2-ton.

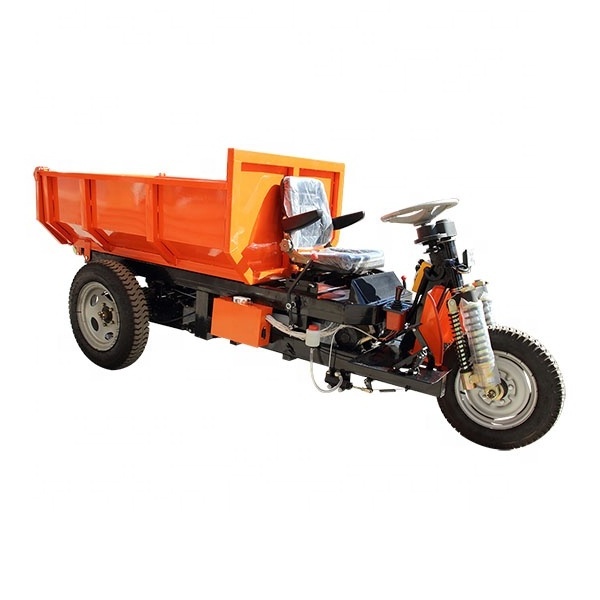

Please note: the double shock absorption and luxury seat in the photo below are paid customized terms, not standard configuration.
Please check the parameters of
CUSTOMIZED configuration of LK200
in the below chart, the red parts belong to LK200 electric
mining tricycle pedicab
.
|
No.
|
Technical parameters
|
LK200
|
LK270
|
LK135
|
|
1
|
Max. Loading capacity
|
2000kg
|
2500kg
|
1500kg
|
|
2
|
Net weight
|
685kg
|
800kg
|
500kg
|
|
3
|
Front tire
|
4.50-14 (Huanyan tire)
|
4.50-14 (Huanyan tire)
|
4.00-12 (Huanyan tire)
|
|
4
|
Rear tire
|
6.00-16 (Huanyan tire)
|
6.00-16 (Huanyan tire)
|
5.00-14 (Huanyan tire)
|
|
5
|
Dimension(L*W*H)
|
3300*1100*1350mm
|
3300*1150*1400mm
|
2800*1000*1250mm
|
|
6
|
Cargo box size
(L*W*H)
|
1800*1100*450mm
|
1800*1150*500mm
|
1450*900*400mm
|
|
7
|
Driving motor power
|
3000W/60V
|
4000W/72V
|
2000W/48V
|
|
8
|
Driving motor type
|
Brushed motor
|
Brushless motor
|
Brushed motor
|
|
9
|
Lifting motor power
|
1000W/60V
|
1000W/72V
|
1000W/48V
|
|
10
|
Lifting motor type
|
Brushed motor
|
Brushed motor
|
Brushed motor
|
|
11
|
Batteries type
|
Lead-acid (water) battery, 30kg/piece
|
Lead-acid (water) battery, 40kg/piece
|
Lead-acid (water) battery, 30kg/piece
|
|
12
|
Batteries quantity
|
5 pieces of 12V, total 60V
|
6 pieces of 12V, total 72V
|
4 pieces of 12V, total 48V
|
|
13
|
Rear axle type
|
Gearbox double chains rear axle type with high and low speed gear
|
Direct-connection rear axle type
|
Gearbox double chains rear axle type
|
|
14
|
Diameter of half shaft
|
External measurement size 26mm
Inner size 30mm |
Suspension rear axle, half axle built-in, not exposed
|
External measurement size 26mm
Inner size 30mm |
|
15
|
Front shock absorption type
|
Double-row large shock absorption
|
Double-row large shock absorption
|
Single row large shock absorption
|
|
16
|
Speed
|
≦35km/h
|
≦60km/h
|
≦25km/h
|
|
17
|
Others
|
Oil brake+
Luxury seat
Including front and rear LED lights, horn and reversing notice voice
|
Oil brake
Including front and rear LED lights, horn and reversing notice voice
|
Drum brake
Including front and rear LED lights, horn and reversing notice voice
|
Advantage & Details
1. Vehicle frame.
2. Spring steel plates.
It is upgraded with very 21kg weighty strong spring steel plates group which used on 2 ton electric dumpers.
3. Cargo box thickness.
Cargo box bottom plate upgrades from 3mm thick to 5mm thick. The side plates remain 3mm thickness. When loading heavy goods or catching large stones with sharp corners falling from high places, the 5mm thick steel plate is more solid.
8. The maximum height of the cargo box is adjustable.
There are 3 holes reserved at the beam of the bottom of hopper which is used for fix the pin axle of on the top of oil cylinder. In this way, the lifting self-unloading height can be adjusted according to the working site situation.
Customized Items
1. Front shock absorption type
The standard configuration of front shock absorption is LK200 is single-row big
shock absorption(in picture 2).
It can be replacement into double-row large shock absorption(in picture 3), but need extra fee.
2.Seat.
* The followings are other optional items:
3.
Hopper shape
*
The standard hopper two sides plates are made of two 3mm thick steel plates after bending. No welding and hinges.
* The hopper with hinges can be customized for manual loading in small mines. After the hinge is opened, the door panels on both sides become lower, which makes it more convenient and labor saving for workers to load materials manually. Not free.
* The hopper can also be made into straight with 3-door open. It is suitable for regular-shaped goods, such as foods, cements, or feed which packed in bags.
4. Batteries and charger
The standard configuration is 5pcs of 12V water batteries, so it is 60V in total. Each battery weighs 30kg/pc.
The matching charger is also 60V.
*A 12V water battery can be added, 72V in total. But need extra charge.
* 5pcs of 52ah dry batteries are available for free replacement.
5pcs of 60ah/70ah/80ah dry batteries are also can be used, but need make-up price difference.
5. Driving motor power+ Driving motor type
* The standard configuration is 3kw brush motor.
* Brushless motor with other power is available, such as 3000W60V brushless motor etc.
6. Rear axle type:
* The standard configuration is double chains/sprockets rear axle with high and low speed gears. * It can be replacement into double-row large shock absorption(in picture 3), but need extra fee.
7. Rear tires.
*The standard configuration is 6.00-16 Huanyan tires. * It can be exchanged for 6.50-16 deep pattern tire. Free of charge.
