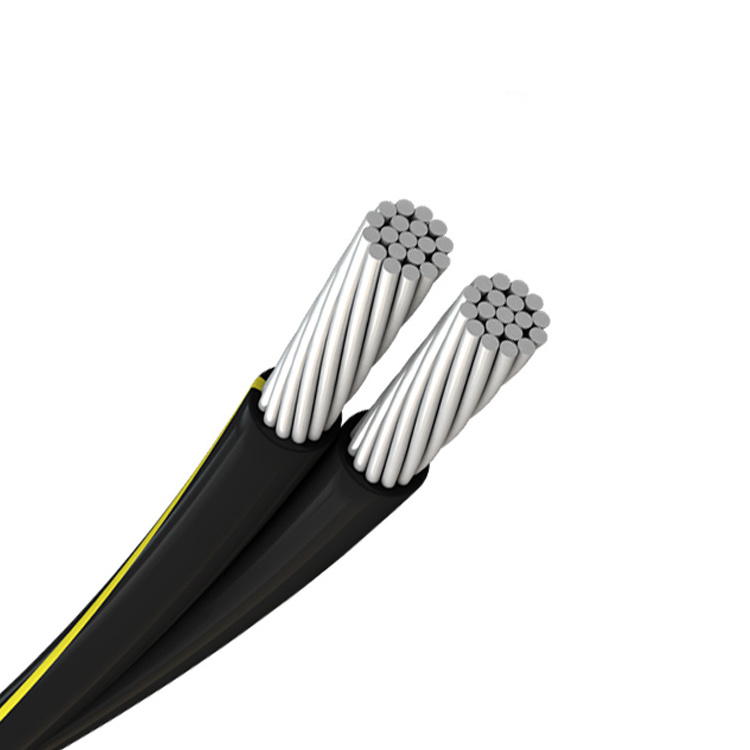

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire
XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire

FOB Reference Price: Get Latest Price
≥500 Meters
US $0.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
PVC/PE
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
LV ABC Cable (Aerial Bundle Cable)
Standard:
nfc 33209/ OECA/BS/NBR/GBT/SIP2/SIP4/SIP6
Certificate:
ISO9001/CCC
Conductor:
AAC/AAAC/ACSR
MOQ:
1000m
Hot-Sales Size:
3*70 54.6 2*16 4*50mm 16mm 25mm 70mmabc cable
Sample:
Contact to get free sample
Warranty:
100%quanlified
Price:
Get within 12 hours
Export Country:
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Africa, Europ
Product name:
Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire

Quick Details

Insulation Material:
PVC
Application:
Overhead Aerial and Self Support
Conductor Material:
Aluminium/Conductor
Jacket:
PVC/PE
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
LV ABC Cable (Aerial Bundle Cable)
Standard:
nfc 33209/ OECA/BS/NBR/GBT/SIP2/SIP4/SIP6
Certificate:
ISO9001/CCC
Conductor:
AAC/AAAC/ACSR
MOQ:
1000m
Hot-Sales Size:
3*70 54.6 2*16 4*50mm 16mm 25mm 70mmabc cable
Sample:
Contact to get free sample
Warranty:
100%quanlified
Price:
Get within 12 hours
Export Country:
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Africa, Europ
Product name:
Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire

Product Description

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 details:

  • 1. Standard: NFC 33-209.
  • 2. Phase/Lightning conductor: Stranded All Aluminum 1350; AAC.
  • 3. Phase conductor Insulation: XLPE.
  • 4. Neutral conductor: All aluminum alloy.
  • 5. Neutral/Lightning conductor insultation: XLPE.
  • 6. The Rated Voltage: 0.6/1KV,Test voltage : 4 kV AC

XLPE Insulate Aluminum Conductor Low Voltage ABC Cable 2x16 Duplex Service Drop Wire Characteristics:

  • The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.
  • Some other important cable characteristics are:
  • Ultraviolet radiation resistance,
  • Ozone resistance,
  • High dielectric strength,
  • Light and easy to handle.

ABC Cable NFC 33-209 Standard

Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.x mm^2 mm Kg/Km Ω/Km KN A
2x10 RM 12.8 93 3.08 1.5 38
4x10 RM 15.4 183 3.08 1.5 38
2x16 RM 14.8 129 1.91 2.3 72
2x16 RN + 2x1.5 RE 14.8 176 1.910/12.100 2.3 72
4x16 RM 17.8 257 1.91 2.3 72
4x16 RN + 2x1.5 RE 17.8 304 1.910/12.100 2.3 72
2x25 RM 18 202 1.2 3.8 107
2x25 RM + 2x1.5 RE 18 249 1.200/12.100 3.8 107
4x25 RM 21.7 404 1.2 3.8 107
4x25 RM + 2x1.5 RE 21.7 451 1.200/12.100 3.8 107
2x35 RM 20.8 269 0.868 5.2 132
2x35 RM + 2x1.5 RE 20.8 316 0.868/12.100 5.2 132
4x35 RM 25.1 539 0.868 5.2 132
4x35 RM + 2x1.5 RE 25.1 586 0.868/12.100 5.2 132
2x50 RM 23.4 352 0.641 7.6 165
2x50 RM + 2x1.5 RE 23.4 399 0.641/12.100 7.6 165
1x54.6 RM + 3x25 RM 21.7 507 0.630/1.200 3.8 107
1x54.6 RM + 3x25 RM + 1x16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 2x16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 3x16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x35 RM 25.1 615 0.630/0.868 5.2 132
1x54.6 RM + 3x35 RM + 1x16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 2x16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 3x16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 1x25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107
1x54.6 RM + 3x50 RM 28.2 741 0.630/0.641 7.6 165
1x54.6 RM + 3x50 RM + 1x16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 2x16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 3x16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 1x25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107
1x54.6 RM + 3x70 RM 33 950 0.630/0.443 10.2 205
1x54.6 RM + 3x70 RM + 1x16 RM 37 1014 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 2x16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 3x16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 1x25 RM 37 1048 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 2x25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 3x25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x95 RM 37.4 1176 0.630/0.320 13.5 240
1x54.6 RM + 3x95 RM + 1x16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72
