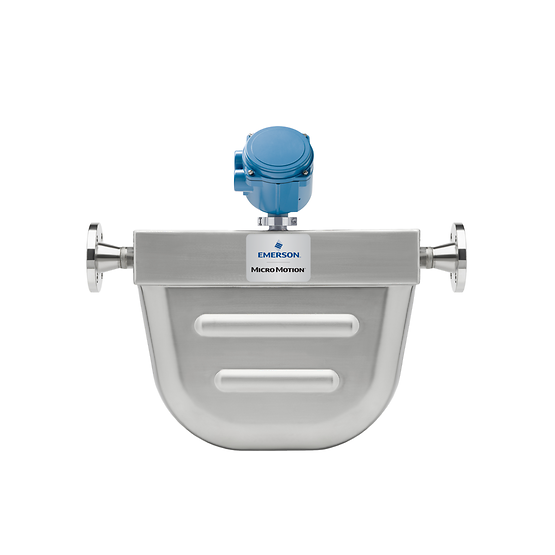

F100/F050/F025 Emerson Micro MotionMass Flow Meter 1700 Single Variable Field Mount Flow Transmitter

F100/F050/F025 Emerson Micro MotionMass Flow Meter 1700 Single Variable Field Mount Flow Transmitter

FOB Reference Price: Get Latest Price

≥1 Boxes

US $6580

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 1700

Protection grade:: IP68

Nominal diameter:: 15-900 mm

Quick Details

Warranty:: 1 years

Place of Origin:: USA

Brand Name:: Micro Motion

Model Number:: 1700

Protection grade:: IP68

Nominal diameter:: 15-900 mm

Products Description

Word Description

Mass flow accuracy (Liquid) ±0.20% of rate (standard)±0.15% of rate (optional)±0.10% of rate (optional) Mass flow repeatability (Liquid) ±0.050% of rate Volume flow accuracy (Liquid) ±0.15% of rate Volume flow repeatability (Liquid) ±0.050% of rate Mass flow accuracy (Gas) ±0.5% of rate Mass flow repeatability (Gas) ±0.25% of rate Density accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard)±0.001 g/cm³ (1.0 kg/m³) (standard) Temperature accuracy ±1 °C ±0.5% of reading Sensor maximum working pressure 2,160 psig (149 barg) Meter approvals, calibrations, and certifications •UL •CSA •IECEx •NEPSI •ATEX •Ingress Protection •EMC effects Features Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology Gain real-time and in-process measurement integrity assurance with Smart Meter Verification Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters
