Quick Details
-
Count Range:
-
-199999-999999
-
Signal input voltage:
-
0-30V or others
-
Applicaiton:
-
Industrial control
-
Display:
-
Dual 4, 6 or 8 digit display
-
Power supply:
-
90-260V AC/DC
-
industrial counter:
-
industrial counter
Quick Details
-
Brand Name:
-
Mypin
-
Place of Origin:
-
China
-
Model Number:
-
FH8-6CRNB
-
Count Range:
-
-199999-999999
-
Signal input voltage:
-
0-30V or others
-
Applicaiton:
-
Industrial control
-
Display:
-
Dual 4, 6 or 8 digit display
-
Power supply:
-
90-260V AC/DC
-
industrial counter:
-
industrial counter

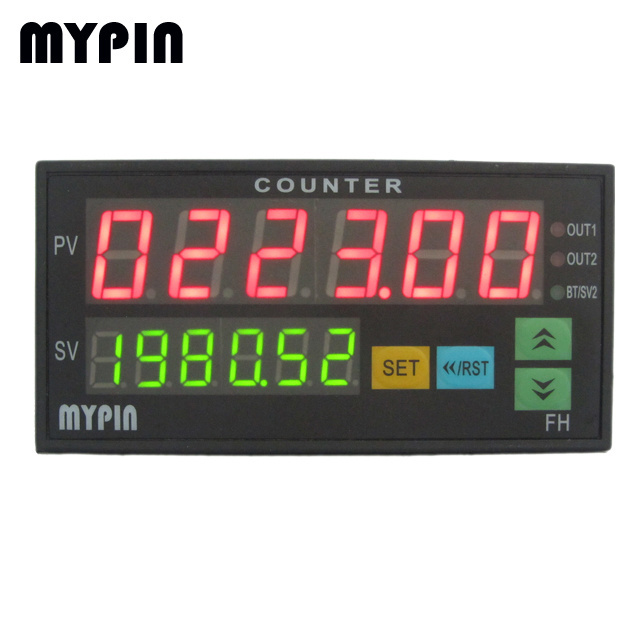

Mypin FH series Industrial digital counter,measurement instruments,wire measuring counter
digital counter,measurement instruments,wire measuring counter,digital counter,measurement instruments,wire measuring counter,digital counter,measurement instruments,wire measuring counter,digital counter,measurement instruments,wire measuring counter,digital counter,measurement instruments,wire measuring counter
FH7 dual 6 digit display, size 72*72*80mm
FH8 single line 8 digit display, size 48*96*80mm
FH4 dual line 4 digit display, size 48*48*80mm
Features:
1, Widely used in Machinery/Electronic/Food/Package industry for counting, length, batch counting.
Receive signals from various switches/encoder for height, position, angle, etc.
measurement . Count no. /length value presetable. When for batch.
counting, Accumulate counte value/current batch count value & batch no. will displays at the
same time. Several outputs settable.
2, Accuracy: 0.01% , dual line 4/6/8 digit display. Resolution 0.0001 . Photo isolation for input &
output,Strong interference.
3, Input: 4 modes( add counting, substract counting, add & substract counting, phase
difference input) for various waveform pulse/raster/ proximity switch/
photoelectrical switch/contact switch/encoder (PNP/NPN), etc.
4, Output: 8 modes— reset until counting to delay time, Reset one c.ount to presetn value, keep
count value and output & hand reset, count to output & continue counting, high alarm value
output, low alarm value output).
Up to 3 alarm outputs with various control modes for selection.
5, Auxiliary power: 12V/24V/30mA, All datas are keeped by FLASH EEPROM in case of power-
failure.
6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol.
realize remote control by direct connection with PC/PLC/other equipment.
Shipment by Sea, Freight, or DHL/UPS/FEDEX/TNT/EMS/CHINA POST MAIL as per client's requirements
We provide 18 months warranty for all Mypin products.
OEM / ODM service available to meet up to client's requirements.
