Quick Details
-
item:
-
99.5% Alumina ceramics piston ceramic shaft for pump
-
Size:
-
Size Customized
-
Certificate:
-
ISO9001:2008/SGS/ROHS
-
Usage:
-
Industry Usage
-
Feature:
-
High Hardness
-
Item:
-
Al2O3 Ceramic Parts
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Guangdong, China
-
Color:
-
white, yellow
-
item:
-
99.5% Alumina ceramics piston ceramic shaft for pump
-
Size:
-
Size Customized
-
Certificate:
-
ISO9001:2008/SGS/ROHS
-
Usage:
-
Industry Usage
-
Feature:
-
High Hardness
-
Item:
-
Al2O3 Ceramic Parts

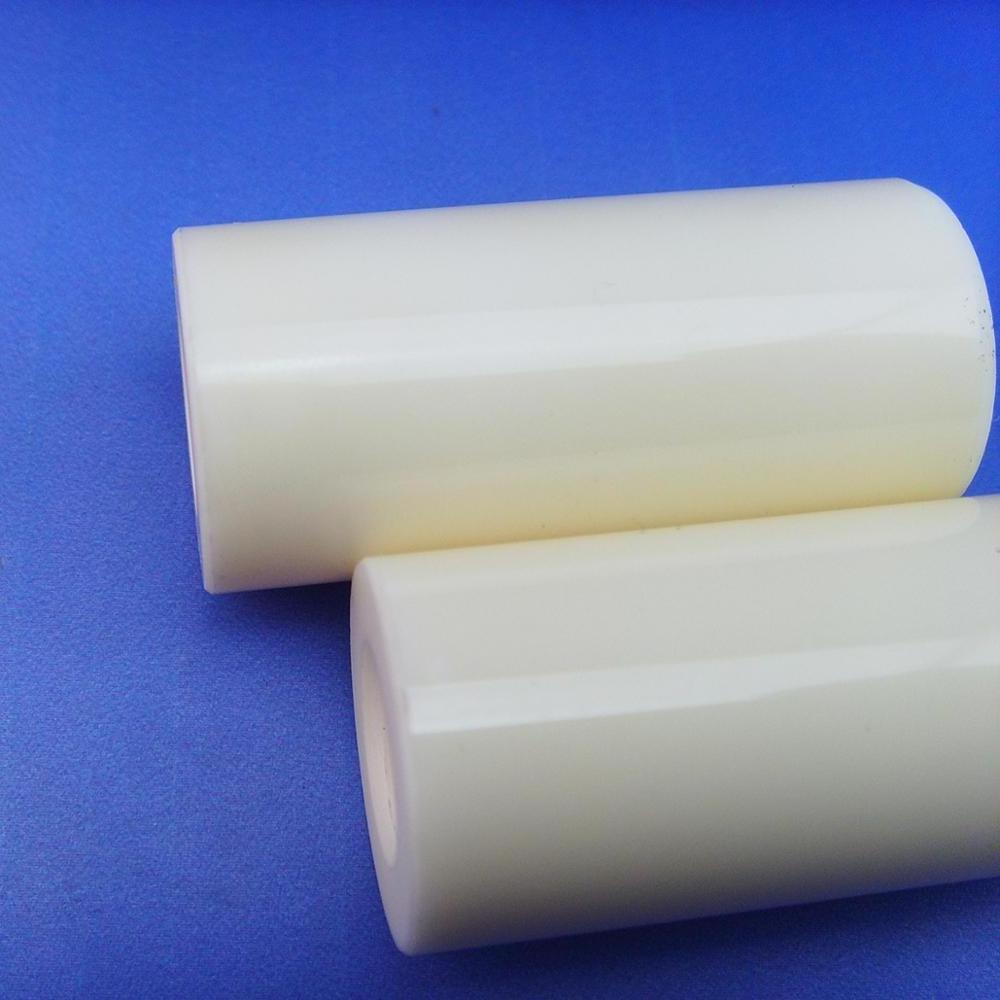

99.5% Alumina ceramics piston ceramic shaft for pump
Features:
99.5% Alumina ceramics piston ceramic shaft for pump
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
99.5% Alumina ceramics piston ceramic shaft for pump
We can supply the products according to customer's drawings, samples and performance requirement.
|
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc. |
||||
|
Material |
Unit |
Steatite ceramics |
95% alumina ceramics |
99.5% alumina ceramics |
|
Density |
G/cm3 |
2.7 |
3.65 |
3.85 |
|
Highest application temperature |
°C |
1100 |
1500 |
1800 |
|
Bending strength |
Mpa |
150 |
300 |
340 |
|
Compressive strength |
Mpa |
900 |
3400 |
3600 |
|
Hardness |
HV0.5 |
800 |
1800 |
2000 |
|
Insulation breakdown strength |
KV/mm |
10 |
15 |
18 |
|
Processing technology |
||||
|
Process range (mm) |
||||
|
Outside Diameter |
1---300 |
|||
|
Inside Diameter |
0.5---300 |
|||
|
Length |
0.5---1200 |
|||
|
Accuracy of working (mm) |
||||
|
Perpendicularity |
0.01 |
|||
|
Concentricity |
0.01 |
|||
|
Roundness |
0.005 |
|||
|
Straightness |
0.005 |
|||
|
Parallelism |
0.01 |
|||
|
Planeness |
0.005 |
|||
|
Roughness |
0.05 |
|||
|
Fit clearance |
0.005 |
|||
ceramic sleeve bushing for machinery, precision 99.5% alumina ceramic sleeve and bushing, industrial ceramic sleeve and bushing, 99.5% alumina ceramic shaft piston rod for machinery, industrial ceramic shaft piston rod, ceramic nozzle.
