Quick Details
-
Color:
-
Brass
-
Rated Current:
-
16A
-
Rated Voltage:
-
250V AC
-
Application:
-
Heater or electric fan
-
Material:
-
PC
-
Insulation resistance:
-
≥100MΩ(500VDC)
-
Anti-torque:
-
60N.cm,1min
-
Contact resistance:
-
≤50mΩ(initial value)
-
Type:
-
oven rotary switch
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
RoHS
-
Color:
-
Brass
-
Rated Current:
-
16A
-
Rated Voltage:
-
250V AC
-
Application:
-
Heater or electric fan
-
Material:
-
PC
-
Insulation resistance:
-
≥100MΩ(500VDC)
-
Anti-torque:
-
60N.cm,1min
-
Contact resistance:
-
≤50mΩ(initial value)
-
Type:
-
oven rotary switch

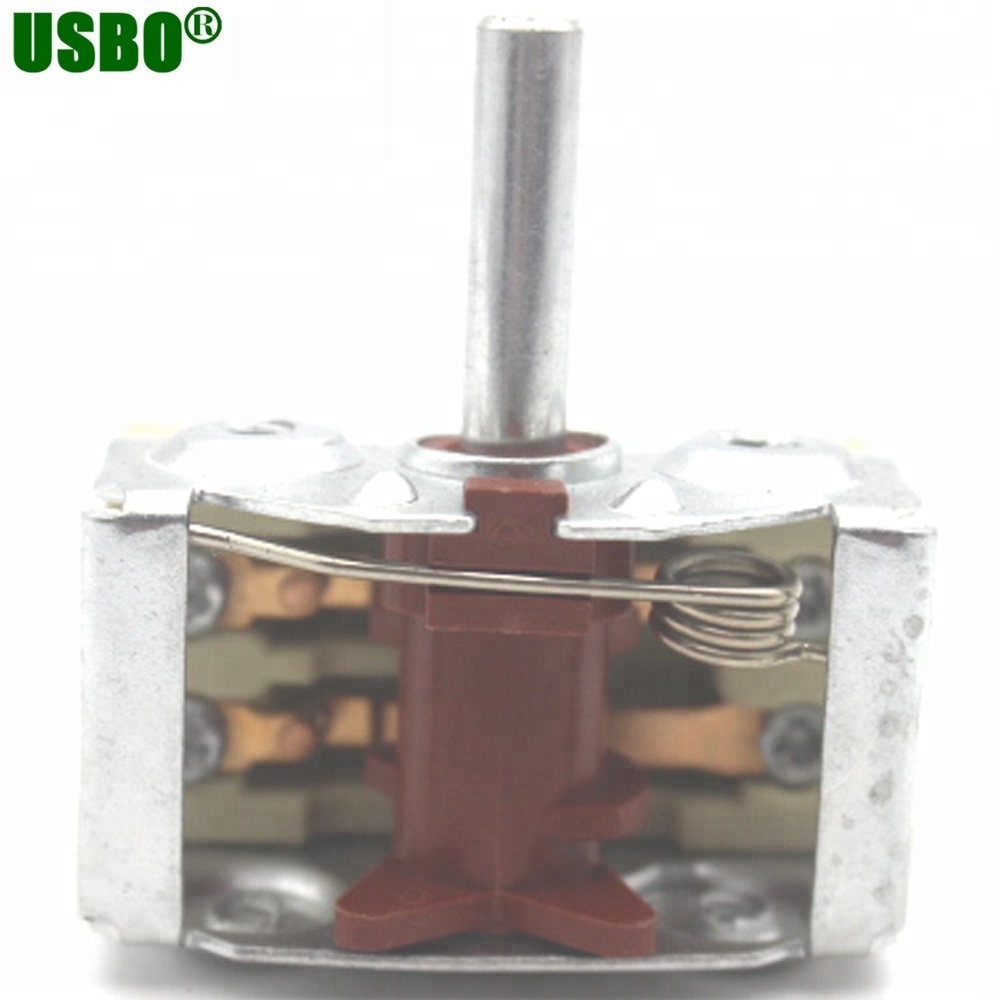

Red 2 position 16a 250v rotary selector switch for oven heater
| ITEMS | Rocker Switch details |
| Housing Material | PA66 |
| Button Material | PC |
| Contacts Material | Copper with compound silver |
| Rating | 16A 250VAC 5E4 T125 |
| Room termperature up to | 100℃ |
| Flammability | UL94V0 |
| Heat and fire resistance | GWFI 850℃ on demand |
| Contact gap | ≥ 3 mm |
| Electrical Life | >50000 Cycles |
| Mechanical Life | >10000 Cycles |
| Reference standards | EN61058-1 |
| Bipolar and unipolar communtator |
2 to 16 positions |
20pcs one box
500pcs one carton
