Quick Details
-
Place of Origin:
-
Henan, China
-
Use:
-
Sterilizing / Disinfecting
-
After-sales Service Provided:
-
Online support
-
Type:
-
sheep wool carpet drying washing machine/equipment for washing wool
-
Heating:
-
gas heating or electric heating system
-
Function:
-
wool washing and cleaning machine
-
Certification:
-
ISO9001
Quick Details
-
Cleaning Process:
-
Cold Water Cleaning
-
Cleaning Type:
-
HIGH PRESSURE CLEANER
-
Material:
-
Stainless steel
-
Place of Origin:
-
Henan, China
-
Use:
-
Sterilizing / Disinfecting
-
After-sales Service Provided:
-
Online support
-
Type:
-
sheep wool carpet drying washing machine/equipment for washing wool
-
Heating:
-
gas heating or electric heating system
-
Function:
-
wool washing and cleaning machine
-
Certification:
-
ISO9001
sheep wool carpet drying washing machine/equipment for washing wool
Description for sheep wool carpet drying washing machine/equipment for washing wool
1.This wool washing machine made of stainless steel,the material is wearable and easy to clean.
Open the door and put the dirty wool into it,add wool cleaner,shut the door,the water will into the machine automatically,select the washing time(usually 30 minutes),the machine will wash the wool very efficiency.
2.this machine can not only washing wool, but also jeans, cotton and other materials.
3.For motor, Our standard voltage is 380V,50hz, but we can change it as your request.
4.Wool washing machine production line is consisited of sheep wool washing machine,wool dewatering machine and wool drying machine.
Technical parameter for sheep wool carpet drying washing machine/equipment for washing wool

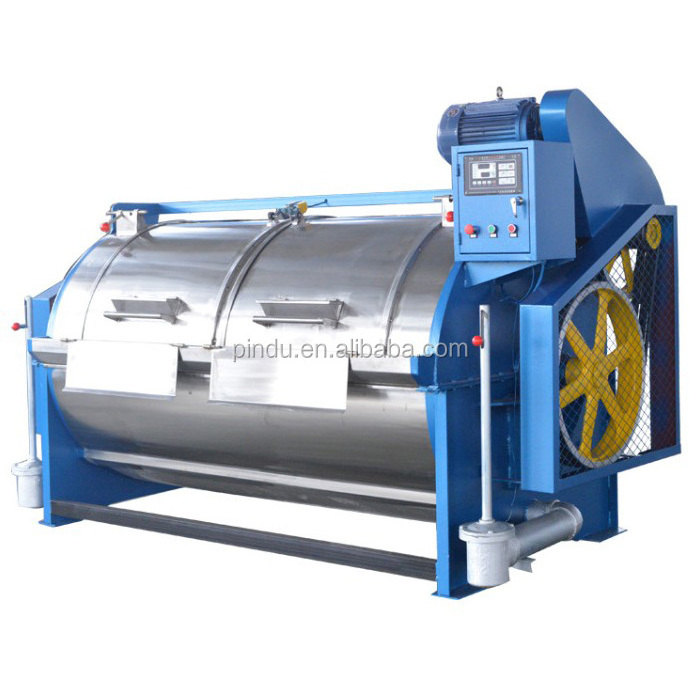

1.Sheep wool washing and cleaning machine
Model | Capacity (kg) | Drum Size(mm) | Speed (r/min) | Power (kw) | Stream pressure(mpa) | Dimensions(mm) | Weight (kg) |
PD-WM10 | 15 | ∅500*600 | 35 | 0.75 | 0.3-0.6 | 1100*850*1200 | 260 |
PD-WM20 | 20 | ∅550*700 | 35 | 0.75 | 0.3-0.6 | 1250*940*1300 | 380 |
PD-WM30 | 30 | ∅700*800 | 33 | 1.1 | 0.3-0.6 | 1650*1100*1450 | 600 |
PD-WM50 | 50 | ∅800*1000 | 33 | 1.5 | 0.3-0.6 | 2000*1300*1500 | 800 |
PD-WM70 | 70 | ∅950*1220 | 33 | 2.2 | 0.3-0.6 | 2050*1400*1800 | 900 |
PD-WM100 | 100 | ∅950*1420 | 33 | 3 | 0.3-0.6 | 2350*1400*1900 | 1200 |
PD-WM150 | 150 | ø1080*1600 | 31 | 4 | 0.3-0.6 | 2500*1400*2100 | 1500 |
PD-WM200 | 200 | ∅1080*2000 | 31 | 5.5 | 0.3-0.6 | 2940*1480*2100 | 1950 |
PD-WM250 | 250 | ∅1200*2260 | 31 | 7.5 | 0.3-0.6 | 3140*1500*2300 | 2300 |
PD-WM300 | 300 | ∅1300*2260 | 29 | 11 | 0.3-0.6 | 3514*1850*2300 | 2600 |
PD-WM400 | 400 | ∅1460*2440 | 29 | 15 | 0.3-0.6 | 4200*2050*2450 | 3400 |
2.Wool dewatering machine
Model | Drum diameter(mm) | Drum height(mm) | Speed (r/min) | Motor (kw) | Capactity (kg) | Dimensions(mm) | Weight(kg) |
PD-DM500 | 500 | 300 | 960 | 1.5 | 25 | 1000*1000*650 | 250 |
PD-DM600 | 600 | 300 | 960 | 2.2 | 45 | 1250*1250*800 | 450 |
PD-DM800 | 800 | 340 | 910 | 4 | 80 | 1500*1500*800 | 760 |
PD-DM1000 | 1000 | 380 | 900 | 5.5 | 130 | 1800*1800*900 | 1100 |
PD-DM1200 | 1200 | 480 | 700 | 7.5 | 220 | 2000*2000*1020 | 1600 |
PD-DM1500 | 1500 | 600 | 750 | 11 | 500 | 2550*1950*1400 | 2400 |
3.Wool drying machine
Model | PD-HM15 | PD-HM20 | PD-HM30 | PD-HM50 | PD-HM100 | PD-HM120 | PD-HM150 |
Capacity(Kg) | 15 | 20 | 30 | 50 | 100 | 120 | 150 |
Drum size(mm) | ∅700*450 | ∅800*450 | ∅1000*800 | ∅1140*1000 | ∅1320*1150 | ∅1450*1100 | ∅1700*1150 |
Speed(r/min) | 33 | 33 | 33 | 33 | 31 | 31 | 30 |
Power(kw) | 1.85 | 1.85 | 2.2 | 2.6 | 3.7 | 4.4 | 6 |
Stream Pressure (Mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
Electric heating power(kw) | 15 | 18 | 22 | 24 | 36 | 42 | 50 |
Dimesions (mm) | 850*1100* 1650 | 1000*1100* 1800 | 1120*1350* 1850 | 1280*1750* 2100 | 1500*1930* 2300 | 1600*1900* 2430 | 1880*2050* 2750 |
Weight(kg) | 300 | 380 | 560 | 700 | 1000 | 1100 | 1300 |
