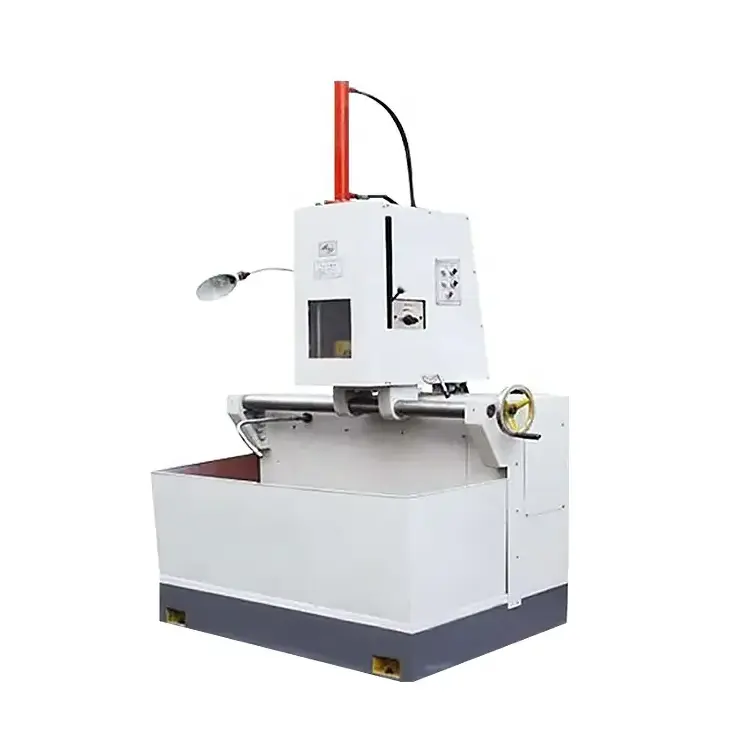

2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine
2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine

2M2217 Hydraulic Engine Vertical Cylinder Head Line Honing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $5980
≥5 Sets
US $5800
≥10 Sets
US $5380
≥20 Sets
US $4780
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
1900*1210*1990mm
Weight (KG):
2000
Power (kW):
3
Model:
2M2217
COLOR:
Customized
Key word:
Honing Machine

Quick Details

Place of Origin:
China
Brand Name:
ALMACO
Voltage:
380V
Dimension(L*W*H):
1900*1210*1990mm
Weight (KG):
2000
Power (kW):
3
Model:
2M2217
COLOR:
Customized
Key word:
Honing Machine
Recommend Products
Product Description

Brief Introduction

The machine is mainly used for honing

cylinder body holes and sleeves holes for

various engines and other sccurate holes.

·Stepless of spindle turning, reciprocating;

·The short stroke machine can be used for

making the workpiece conveniently. ·The

diameter of the honing head can be varied in

the honing process according to the user need
Specification
Model
3M9814A
3MQ9814
MJ4214B
3MQ9817
2M2217
M4215/1
Dia of hole honed
mm
Φ40-Φ140
Φ40-Φ140
Φ40-Φ140
Φ35-Φ170
Φ32-Φ170
Φ30-Φ150
Max depth of hole honed
mm
320
320
370
320
320
400
Spindle speed
rpm
128,240
15,250
125,215
120,160,225,290
115,160,225,320
140,200,280
Stroke
spm
35,44,65
Longitudinal travel of honing head
mm
720
340
350
Spindle lifting/lowering speed
m/min
0-10
0-14
3-10
0-30
2-18
3-18
Table swivel
0,30,45
Table Longitudinal traverse
mm
750
800
800
Max manual table lifting
mm
180
Max spindle reliprocating travel
mm
300
370
Power of honing head motor
KW
0.75
0.75
1.5
2.2
Power of cooling pump motor
KW
0.125
0.125
Power of hydraulic pump
KW
2.2
inside cavity dimensions
mm
350*900
1400*870
1000*400
1100*480
Overall dimensions(L*W*H)
cm
144*96*166
129*88*202
160*93*187
164*167*192
190*121*199
132*168*267
Net weight
kg
510
650
750
1000
2000
2100
