The
folding solar panels
is waterproof, anti-corrosion, dirt-resistant, and easy to clean, and can easily cope with various environments.
- Product Details
- {{item.text}}
Quick Details
-
Panel Dimensions:
-
1220*555*25mm
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
folding solar panels
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
5.25A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
4.8±0.1kg
-
Folded size:
-
610*555*45mm
Quick Details
-
Brand Name:
-
DHC
-
Model Number:
-
ESFB100
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1220*555*25mm
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
folding solar panels
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
5.25A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
4.8±0.1kg
-
Folded size:
-
610*555*45mm
Product Description

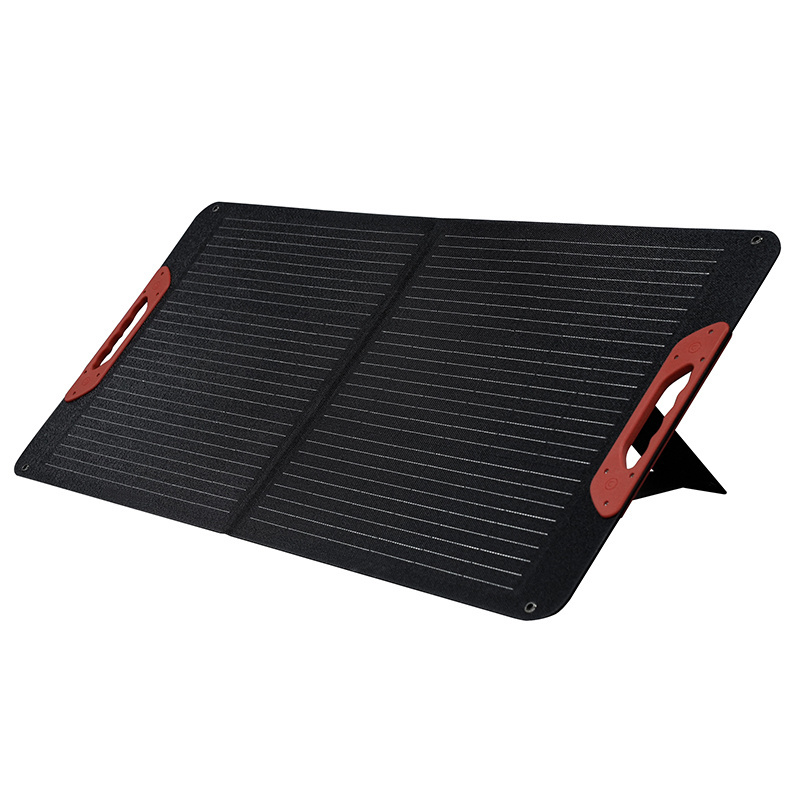

China manufacturer 100w camping solar panel 120w portable folding solar panels with battery
This is a
foldable solar panel
specially designed for outdoor camp and travel. The weight of a single panel is about 4.8kg. It can be lifted with one hand and is very convenient to carry.
The efficiency of this
folding solar panels
is as high as 21.3%, realizing electricity when there is light, providing guarantee for electricity use in outdoor activities.
Specification
|
ELECTRICAL PARAMETERS STC
|
|
|
||
|
Model
|
ESFB100
|
ESFB200
|
||
|
Max. Power Output Pmax
|
100W
|
200W
|
||
|
Power Tolerance
|
0~+3％
|
0~+3％
|
||
|
Max. Power Voltage Vmap
|
20.16V
|
20.16V
|
||
|
Max. Power Current lmp
|
4.96A
|
9.92A
|
||
|
Open Circuit Voltage Voc
|
24.3V
|
24.3V
|
||
|
Short Circuit Current lsc
|
5.25A
|
10.5A
|
||
|
Module Eficiency
|
21.3%
|
21.3%
|
||
|
*STC(Standard Test Condition): Irradiance 1000W/㎡,Cell Temperature 25℃,Air Mass 1.5.
|
|
|
||
|
MECHANICAL PARAMETERS
|
|
|
||
|
Cell Type
|
Mono，166*83cm
|
Mono，166*83cm
|
||
|
Cell Arrangement
|
36psc（3*6*2）
|
72psc（3*6*4）
|
||
|
Open size
|
1220*555*25mm
|
2390*535*25mm
|
||
|
Folded size
|
610*555*45mm
|
625*535*50mm
|
||
|
Weight
|
4.8±0.1kg
|
8.6±0.1kg
|
||
|
Output Cable
|
1500mm
|
1500mm
|
||
|
Output Connection
|
Anderson
|
Anderson
|
||
China manufacturer 100w camping solar panel 120w portable folding solar panels with battery
1. This
foldable solar panel
uses monocrystalline silicon solar cells with higher conversion efficiency.
2. It has a foldable and portable design, which is easy to carry and can be carried with one hand.
3.
The
folding solar panels
can be used with an outdoor power supply to convert solar energy into electrical energy and store it for use at night.
Details Images
China manufacturer 100w camping solar panel 120w portable folding solar panels with battery
This foldable
portable solar panel
is made of highly translucent, strong, and aging-resistant materials and is produced with high-quality integrated technology.
