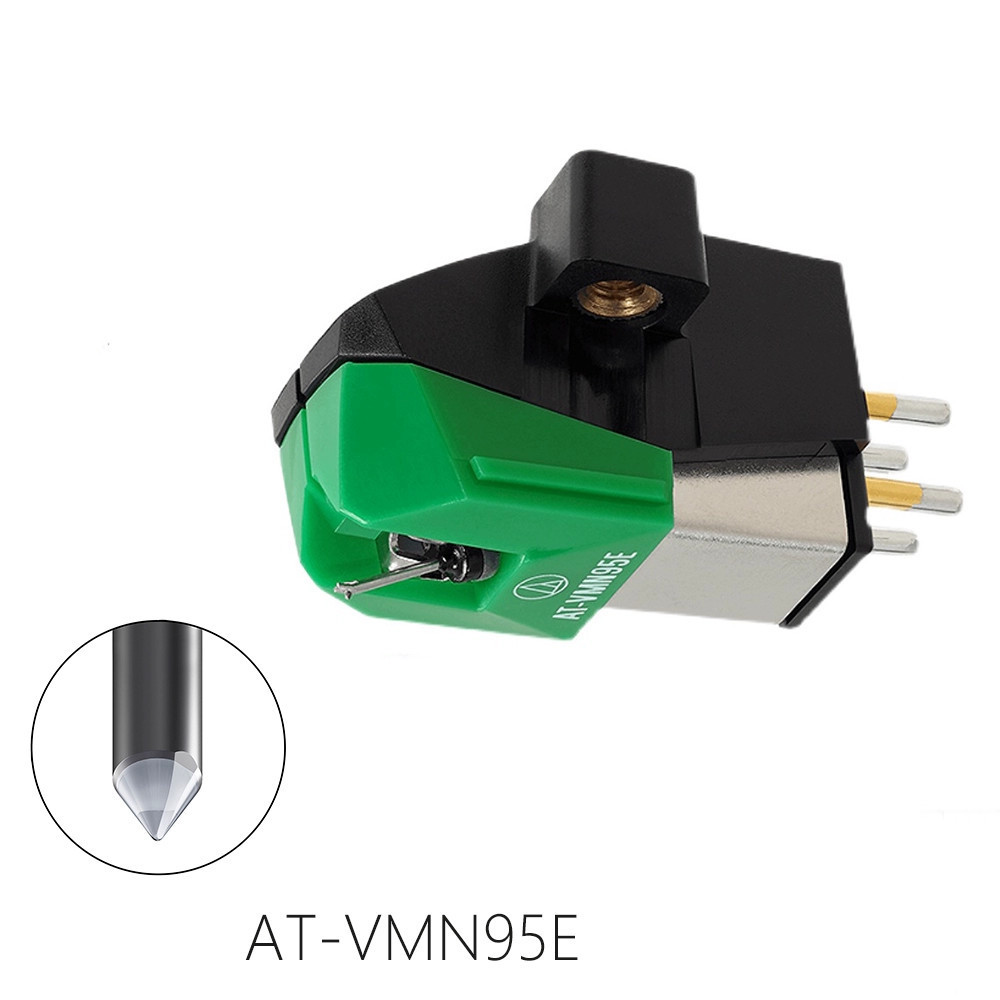

AT-VM95E MM Moving Magnet Oval Diamond Needle Tip Vinyl VMN95E Stylus Cartridge
see more: Turntable cartridges for AT95E
Original
Cartridge type:MM movingmagnetic
Response frequency : 20~20,000Hz
Output Voltage: 3.5mV (1kHz, 5cm/sec.)
Channel separating degree: 20dB (1kHz)
output balance: 2.0dB (1kHz)
Stylus force : 1.5-2.5g (Recommended stylus force 2.0g)
coil impedance: 2.8kΩ (1kHz)
Winding DC resistance: 410Ω
Suggested load resistance: 47kΩ
load capacitance: 100~200pF
Coil inductance: 400mH (1kHz)
Static obedience :20×10-6cm/dyne
Dynamic obedience: 6.5×10-6cm/dyne(100Hz)
Tip shape :Elliptical (0.4×0.7mil)
Rod:Aluminum rod
Vertical tracing Angle: 20°
Item size : H17.2×W17.0×D30.5mm
Weight : 5.7g
