Quick Details
-
Type:
-
Making Puree Tomato Sauce
-
Voltage:
-
380 V ,Customized
-
Power:
-
45 Kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1330*650*1300 mm
-
Product name:
-

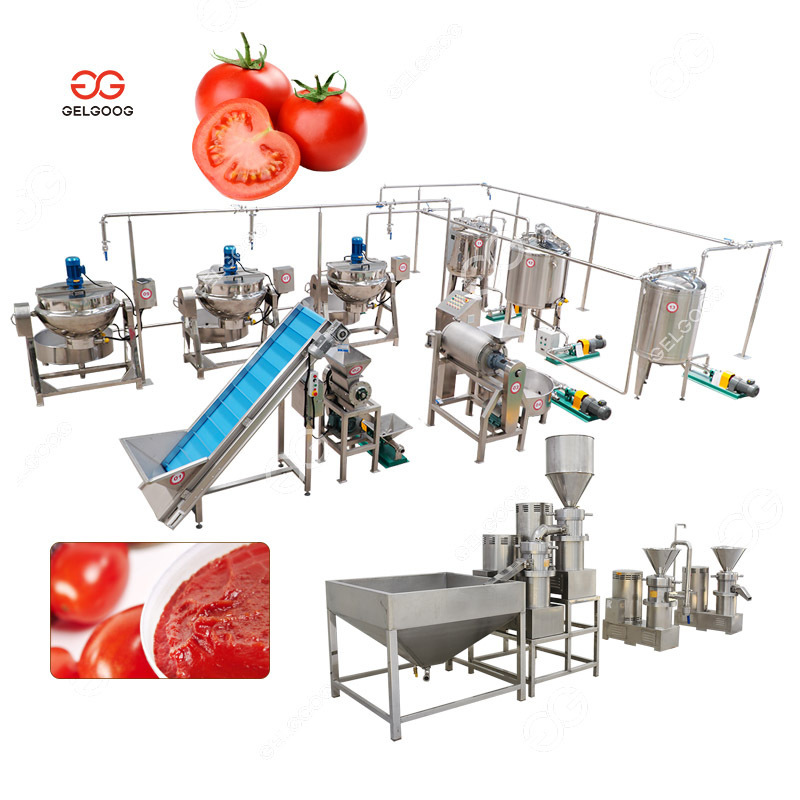

Automatic Tomato Sauce Making Plant Tomato Puree Machine
-
Material:
-
Food Grade Stainless Steel
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gelgoog
-
Type:
-
Making Puree Tomato Sauce
-
Voltage:
-
380 V ,Customized
-
Power:
-
45 Kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
1330*650*1300 mm
-
Product name:
-
Automatic Tomato Sauce Making Plant Tomato Puree Machine
-
Material:
-
Food Grade Stainless Steel
Product Description
Description of
Tomato Puree Machine
1. Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving,
pre-washing and sorting section,crushing and pulping section, concentrating section, pasteurizing or sterilizing section, aseptic filling section, auxiliary energy section.
1. Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving,
pre-washing and sorting section,crushing and pulping section, concentrating section, pasteurizing or sterilizing section, aseptic filling section, auxiliary energy section.
2. Production capacity includes 40 tons, 60 tons, 100tons, 150 tons, 300 tons, 400 tons, 500 tons, 600 tons, 800 tons, 1000 tons, 1200 tons and 1500 tons of fresh tomatoes per day.
3. The tomato paste concentration rate is 28%, 30%, 32%, 36% ,38%.
4. Tomato paste can be filled into aseptic bag in drum or can, also can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
Specification
|
No.
|
Equipment Name
|
Function
|
|
1
|
Picking Belt
|
Manually remove unqualified, worm-eye, and moldy tomatoes
|
|
2
|
Tomato Washing Machine
|
Under the action of bubbles and spray, the picked tomatoes are cleaned, mainly to remove the surface sediment
|
|
3
|
Tomato Crushing Machine
|
Crush the washed tomatoes to facilitate the later beating work
|
|
4
|
Tubular Preheater
|
Increase temperature of slurry to achieve preheating, inactivating enzymes and protecting color
|
|
5
|
Tomato Pulping Machine
|
Pitting and beating fruits after pre-cooking.
|
|
6
|
Buffer Tank
|
|
|
7
|
Concentrator
|
|
|
8
|
Tubular sterilizer
|
Sterilization of concentrated tomato paste
|
|
9
|
Finished tank
|
Ketchup cache after sterilization
|
|
10
|
Tomato Paste Packing Machine
|
Ketchup packaging work
|
Machines' Factory Pictures
