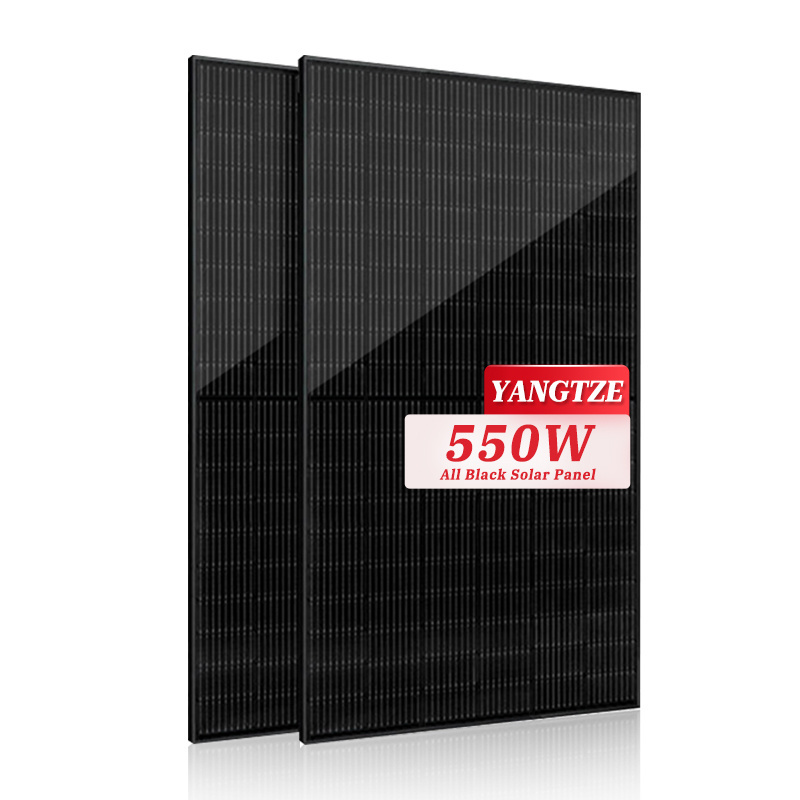

Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
Yangtze
-
Model Number:
-
YS550M-144
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2274*1134*35mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/ISO
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Solar cell:
-
Half Cell 10BB
-
Glass:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Application:
-
Solar System
-
Backing Color:
-
Black
-
OEM Order:
-
Acceptable
-
Output cable:
-
2*4mm2 copper or customized
-
Class:
-
Grade A
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
All Black
-
Panel Efficiency:
-
21.33%-23.27%
-
Warranty:
-
25 Years
-
Brand Name:
-
Yangtze
-
Model Number:
-
YS550M-144
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2274*1134*35mm
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/ISO
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Solar cell:
-
Half Cell 10BB
-
Glass:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Application:
-
Solar System
-
Backing Color:
-
Black
-
OEM Order:
-
Acceptable
-
Output cable:
-
2*4mm2 copper or customized
-
Class:
-
Grade A
Product Description
|
Model Type
|
YS550M-144
|
YS560M-144
|
YS570M-144
|
YS580M-144
|
YS600M-144
|
|||||
|
Rated Maximum Power at STC
|
550W
|
560W
|
570W
|
580W
|
600W
|
|||||
|
Maximum Power Voltage (Vmp)
|
40.90V
|
41.10V
|
41.30V
|
41.50V
|
42.10V
|
|||||
|
Maximum Power Current (Imp)
|
13.45A
|
13.63A
|
13.80A
|
13.98A
|
14.25A
|
|||||
|
Open Circuit Voltage ( Voc)
|
49.62V
|
49.72V
|
49.82V
|
49.91V
|
49.99V
|
|||||
|
Short Circuit Current (Isc)
|
14.03A
|
14.33A
|
14.62A
|
14.81A
|
14.97A
|
|||||
|
Module Efficiency
|
21.33%
|
21.72%
|
22.10%
|
22.49%
|
23.27%
|
|||||
|
Working Conditions&Working Conditions
|
|
|
|
|
|
|||||
|
Operating Temperature
|
|
-40°c~+85°c
|
|
|
|
|||||
|
Maximum System Voltage
|
|
DC 1000V(IEC) / 1500V(IEC)
|
|
|
|
|||||
|
Maximum Series Fuse
|
|
25A
|
|
|
|
|||||
|
Power Tolerance
|
|
0~+5W
|
|
|
|
|||||
|
Temperature Coefficient of Pmax
|
|
-0.35%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
|
-0.29%/°c
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
|
+0.048%/°c
|
|
|
|
|||||
|
STC
(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
|
|
|
|
|
|
|||||
|
NOCT
(Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
|
|
|
|
|
|
|||||
Product Details
GLASS
3.2mm or 2+2mm or customized, Anti-Reflection
Coating,High Transmission,
Low Iron, Tempered Glass
Coating,High Transmission,
Low Iron, Tempered Glass
Solar Cell
12BB,tier 1,PERC/HJT/N Type/TOPCONtechnology,highest power,10% more watt than others
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Black/Silver Color Optional
Junction Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
500N Tensile Strength
Female/Male/Fuse
Label
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
OEM with your Logo
Professional Silver Color
