Quick Details
-
Brand Name:
-
SINOMADA
-
Model Number:
-
Dh08
-
Dimension(Long * Breadth * High):
-
4420*2110*2860 mm
-
Item:
-
Bulldozer
-
Net power:
-
63kW/2200rpm
-
Engine size:
-
915x624x944 mm
-
Piston displacement:
-
4.5L
-
Engine weight:
-
550 kg
-
Maximum torque:
-
380 N.m@ 1400-1600 rpm
-
Blade type:
-
VPAT-blade
-
Dozing capacity:
-
1.93 m3
-
Blade width:
-
2680 mm
-
Blade height:
-
950 mm
Quick Details
-
Machine Weight:
-
8780 KG
-
Dozing Capacity:
-
1.93M3
-
Place of Origin:
-
China
-
Brand Name:
-
SINOMADA
-
Model Number:
-
Dh08
-
Dimension(Long * Breadth * High):
-
4420*2110*2860 mm
-
Item:
-
Bulldozer
-
Net power:
-
63kW/2200rpm
-
Engine size:
-
915x624x944 mm
-
Piston displacement:
-
4.5L
-
Engine weight:
-
550 kg
-
Maximum torque:
-
380 N.m@ 1400-1600 rpm
-
Blade type:
-
VPAT-blade
-
Dozing capacity:
-
1.93 m3
-
Blade width:
-
2680 mm
-
Blade height:
-
950 mm
Product Photoes
Product Description

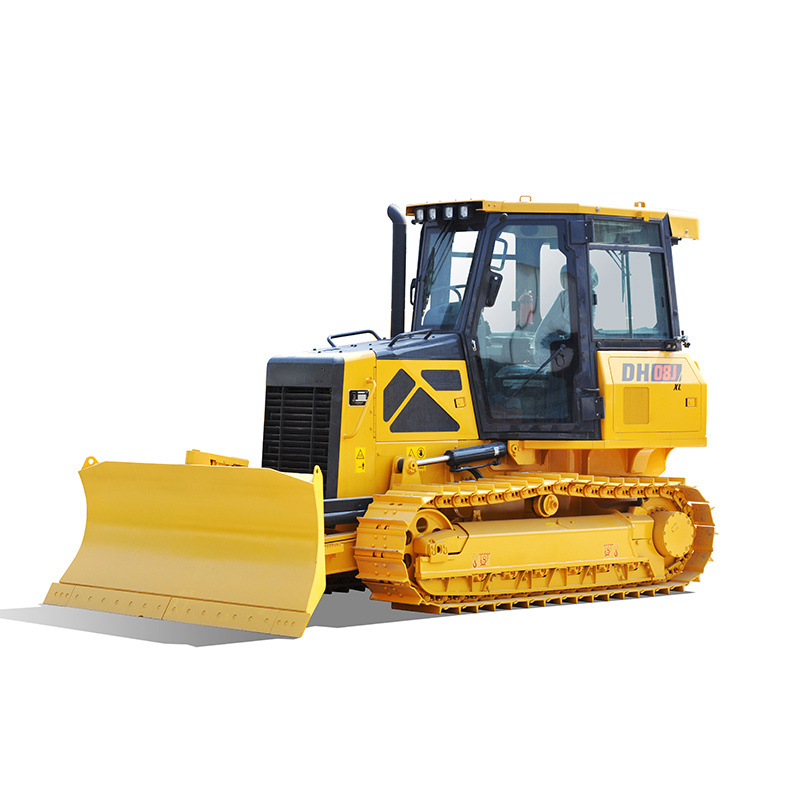

80hp SHANTUI DH08 mini dozer full hydraulic bulldozer for sale
DH08 bulldozer is high cost-performance hydrostatic drive bulldozer products developed by our company. With the inheritance of the excellent quality of our mature products and featuring stable and reliable performances and high driving comfort and convenience, this series is the best choice for your earthworks
* DH08B2 features China Stage II emission Weichai mechanical engine that meets the national non-road machinery emission requirements, the parts are versatile and the maintenance cost is low.
* Intelligent matching technology to achieve the highest efficiency and the most reasonable fuel economy.
* The ergonomic hexahedron integrated cab has large space, good view and tight seal.
* Suspended single-throttle pedal, small size, large foot movement space, comfortable operation.
* The adjustable range of seat and armrests provides the driver with the most comfortable posture.
* Standard cab + air-conditioning, the whole cab adopts a sealed vibration damping system equipped with sound-absorbing sponge, vibration noise is small and the driver's ear noise can be reduced to 85 decibels;
* Intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, toolbox, sunshade, fire extinguisher, etc., to provide a richer humanized driving experience, comfortable and safe driving environment.
* The vehicle safety passage system ensures the safety of the driver.
* The walking control adopts electric control single handle operation, the working device operates the pilot single handle
operation, the operation is flexible, light and comfortable.
* The chassis system has a long grounding length, large ground clearance, stable driving, good passibility, standard traction
frame, and optional three-jaw ripper.
* The machine adopts double-circuit electronically controlled static pressure drive system that can be loaded with steering, in-situ steering, stepless speed regulation, flexible and efficient and excellent performance in narrow site construction.
* Standard LED work lights with higher brightness, improve nighttime construction lighting, and be safer and more reliable.
* DH08B2 features China Stage II emission Weichai mechanical engine that meets the national non-road machinery emission requirements, the parts are versatile and the maintenance cost is low.
* Intelligent matching technology to achieve the highest efficiency and the most reasonable fuel economy.
* The ergonomic hexahedron integrated cab has large space, good view and tight seal.
* Suspended single-throttle pedal, small size, large foot movement space, comfortable operation.
* The adjustable range of seat and armrests provides the driver with the most comfortable posture.
* Standard cab + air-conditioning, the whole cab adopts a sealed vibration damping system equipped with sound-absorbing sponge, vibration noise is small and the driver's ear noise can be reduced to 85 decibels;
* Intelligent display and control terminal integrated instrument, cigarette lighter, USB charging port, radio, toolbox, sunshade, fire extinguisher, etc., to provide a richer humanized driving experience, comfortable and safe driving environment.
* The vehicle safety passage system ensures the safety of the driver.
* The walking control adopts electric control single handle operation, the working device operates the pilot single handle
operation, the operation is flexible, light and comfortable.
* The chassis system has a long grounding length, large ground clearance, stable driving, good passibility, standard traction
frame, and optional three-jaw ripper.
* The machine adopts double-circuit electronically controlled static pressure drive system that can be loaded with steering, in-situ steering, stepless speed regulation, flexible and efficient and excellent performance in narrow site construction.
* Standard LED work lights with higher brightness, improve nighttime construction lighting, and be safer and more reliable.
|
Engine
|
Model 8 type
|
Weichai WP4, China II emission;
|
|
|
|
mechanical pump engine
|
|
|
Net power
|
63kW/2200rpm
|
|
|
Engine size
|
915x624x944 mm
|
|
|
Piston displacement
|
4.5L
|
|
|
Engine weight
|
550 kg
|
|
|
Maximum torque
|
380 N.m@ 1400-1600 rpm
|
|
Power transmission system
|
Type
|
Electronic control
|
|
|
Traveling pump ()
|
2
|
|
|
Traveling motor ()
|
2
|
|
|
Traveling system pressure
|
40 Mpa
|
|
|
Brake pressure
|
2.5 Mpa
|
|
Travel speed
|
Forward
|
0~9 km/h
|
|
|
Reverse
|
0~9 km/h
|
|
Undercarriage system
|
Carrier rollers
|
1 each side
|
|
|
Track rollers
|
6 each side
|
|
|
Width of track shoes
|
460 mm
|
|
|
Pitch
|
154 mm
|
|
Hydraulic
|
Type
|
2 way hydraulic pilot control
|
|
|
|
+1 way electric hydraulic hybrid control
|
|
|
Maximum pressure
|
21 MPa
|
|
|
Working pump (Parker)
|
1
|
|
|
Main valve (Hydrocontrol)
|
1
|
|
Blade
|
Blade type
|
VPAT-blade
|
|
|
Dozing capacity
|
1.93 m3
|
|
|
Blade width
|
2680 mm
|
|
|
Blade height
|
950 mm
|
|
|
Maximum drop below ground
|
515mm
|
|
|
Maximum lifting height
|
750 mm
|
|
|
Maximum drop below ground
|
515 mm
|
|
|
Maximum tilt
|
350mm
|
|
|
Turning angle
|
25
|
