Quick Details
-
Control system:
-
Taiwan Syntec Controller
-
Function:
-
Cutting Engraving Non-metal Materials
-
Working area:
-
1200*2000mm*300
-
Spindle power:
-
10KW Germany DMASS spindle
-
Working table:
-
Vacuum Table + Tslot
-
Spindle speed:
-
0-24000r/min
-
Driving system:
-
Japan Servo Yaskawa Driver
-
Linear guide:
-
X, Y axis: Taiwan 35# Z axis: Taiwan 30#
-
Spindle:
-
HITECO 10KW/Changchuan 14KW
-
Feature:
-
Economic
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
otomic
-
Weight (KG):
-
1500 KG
-
Control system:
-
Taiwan Syntec Controller
-
Function:
-
Cutting Engraving Non-metal Materials
-
Working area:
-
1200*2000mm*300
-
Spindle power:
-
10KW Germany DMASS spindle
-
Working table:
-
Vacuum Table + Tslot
-
Spindle speed:
-
0-24000r/min
-
Driving system:
-
Japan Servo Yaskawa Driver
-
Linear guide:
-
X, Y axis: Taiwan 35# Z axis: Taiwan 30#
-
Spindle:
-
HITECO 10KW/Changchuan 14KW
-
Feature:
-
Economic
Product Description
2. The dynamic column structure provides larger processing space. So it can achieve high-precision and complex surface processing, improve production efficiency and reduce the need for manual operations.

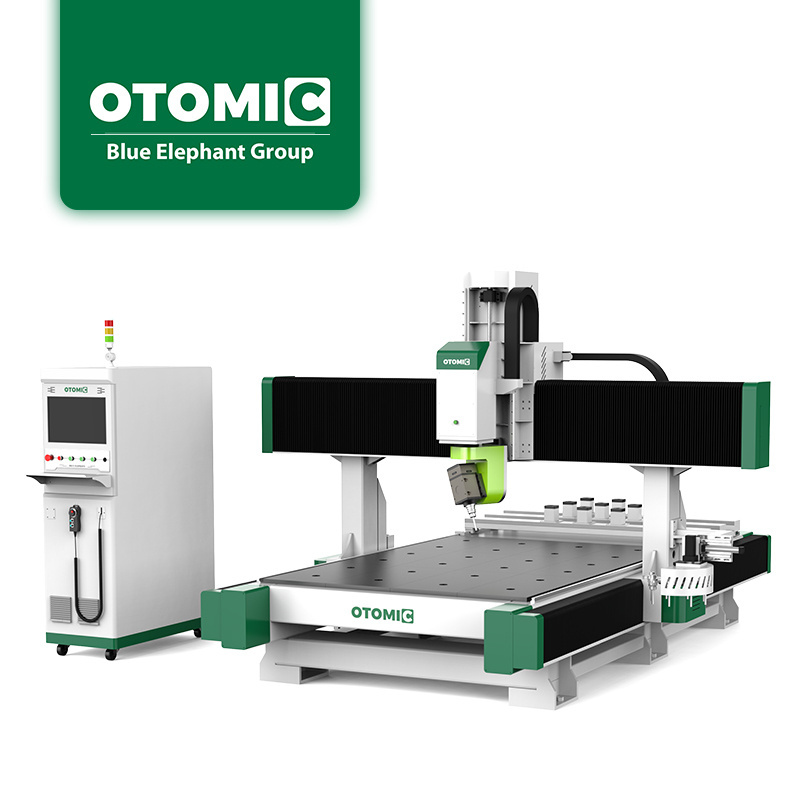

3. The moving column gantry 5 axis CNC machine allows the workpiece to be accurately machined in five different directions without re-clamping the workpiece. It greatly shorten the processing cycle and reduce material waste.
4. The moving column gantry 5 axis CNC machining center is widely used in aerospace, automobile manufacturing, mold manufacturing, etc. It is one of the indispensable and important equipment in modern manufacturing industry.
Product Details
Carousel automatic tool changer
Equipped with carousel automatic tool changer, it can greatly improve the production efficiency.
Control system
With FANUC control system, high machining accuracy and high performance.
Frame and gantry
Heavy duty welded steel frame and gantry can be for maximum straightness and rigidity.
Servo motors
Japan YASKAWA Servo motors & drivers from Japan, which ensures the machine's stronger strength and high accuracy.
T-slot table and aluminum table
Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump
electricity.
Water cooling spindle
Water cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.
Technical Parameters
|
Model
|
EW3 Moving Column Gantry 5 Axis CNC Machining Center
|
|
X,Y axis travel
|
X axis：1300-2000mm Y axis：2000-6000mm Z axis：300-600mm
|
|
Spindle type
|
HITECO 10KW/Changchuan 14KW
|
|
Inverter type
|
15kw Delta inverter
|
|
5 axis cutting head
|
HITECO/LX500
|
|
Tool magazine
|
Carousel tool changer with 8pcs HSK F63
|
|
Control system
|
SYNTEC 610-E5 5 axis control system with RTCP functions
|
|
Driving system
|
X axis 1.3kw; Y axis 1.3kw*2; Z axis 1.8kw Japan YASKAWA servo motors
|
|
Reducer
|
Japan SHIMPO *3
|
|
Work table
|
T-slot & Vacuum working table
|
|
Linear guide
|
X, Y axis: Taiwan 35# Z axis: Taiwan 30#
|
|
Transmission
|
X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
|
|
Water cooling system
|
Water cooler
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
