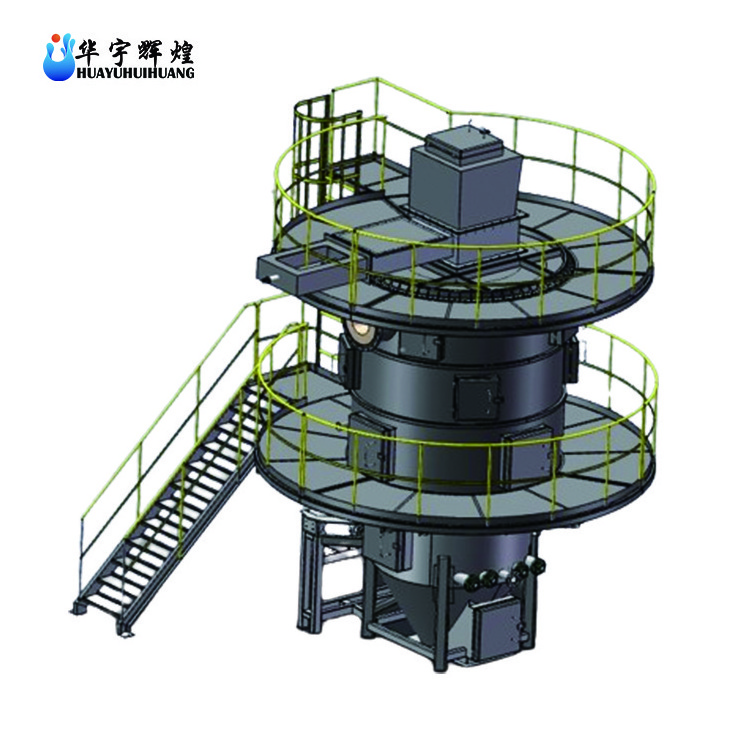

ODM Factory 5 t/d Low Price small municipal waste combustor High temperature pyrolysis incinerator

ODM Factory 5 t/d Low Price small municipal waste combustor High temperature pyrolysis incinerator

FOB Reference Price: Get Latest Price

≥1 Sets

US $420000

≥2 Sets

US $380000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HYHH

Model Number:: HTP-5T

Power:: 85 KW

Material:: seaworthy packing

Weight (KG):: 45000 kg

Name:: High Temperature Pyrolytsis Waste Incinerator

Application Scope:: Towns,villages, islands, logistics and etc.

Capacity:: 5 t/d

Recommended operational temperature(℃):: 850~1100

Gas retention time(s):: ≥2s

Machinery Type:: Waste recyling

Number of Chamber:: Double-chamber

Technology:: Pyrolysis gasification technology

Advantage:: Low operation cost, Eco-friendly, Intelligent automation

Control method:: PLC Intelligentize/touch screen/buttons

Quick Details

Production Capacity:: 5 t/d

Applicable Industries:: Other

Place of Origin:: Beijing, China

Brand Name:: HYHH

Model Number:: HTP-5T

Power:: 85 KW

Material:: seaworthy packing

Weight (KG):: 45000 kg

Name:: High Temperature Pyrolytsis Waste Incinerator

Application Scope:: Towns,villages, islands, logistics and etc.

Capacity:: 5 t/d

Recommended operational temperature(℃):: 850~1100

Gas retention time(s):: ≥2s

Machinery Type:: Waste recyling

Number of Chamber:: Double-chamber

Technology:: Pyrolysis gasification technology

Advantage:: Low operation cost, Eco-friendly, Intelligent automation

Control method:: PLC Intelligentize/touch screen/buttons

PRODUCT OVERVIEW

Customizable household waste, general waste and municipal solid waste incinerator

Customizable household waste, general waste and municipal solid waste incinerator(HTP Waste Incinerator) is based on the mainstream domestic waste treatment processes, combined with the current situation of domestic waste treatment, and has been developed through years of research and development experiments and data accumulation. Based on the principle of pyrolysis and gasification,the equipment converts solid domestic waste into 90% gas and 10% ash, so as to achieve the goal of reducing and harmless treatment of domestic waste.

PRODUCT DISPLAY

HTP-10T

HTP-15T

HTP-20T

HTP Waste Incinerator has obtained 5 invention patents and 6 utility model patents.

PRODUCT ADVANTAGES

Technology + Structure + Control

HYHH is committed to serve the environmental protection, and root in continued innovation in products and technologies.

01 Rapid pyrolysis total gasification technology

02 Improved oxygen supply control technology

03 Low nitrate reaction technology

04 Homogeneous combustion technology

05 Waste heat utilization technology

06 Combined flue gas ultra-clean technology

07 Fully-closed reaction technology

08 Intelligent control technology

① Good Inclusiveness

Aiming at the characteristics of small output, complex composition and large fluctuation of domestic waste in countyside, solving the problem of small-sacle domestic waste treatment in the whole process. Through the links of standing, crushing, magnetic separation and screening, the garbage is homogenized to ensure the stability of the garbage into the furnace. Can be applied to a variety of materials : such as rubber and plastic, paper, knitting, plastic, etc.

② Low Operation Cost

HTP Waste Incinerator is an integrated design with double-chamber that effectively increases the heat storage capacity. Hot air from the waste heat recovery is used to supply hot oxygen in the post-combustion chamber for fuel-free operation. The reaction process has low nitrate, no denitrification treatment, and reduced operation and construction costs. Operating costs are lower than other similar products.

③ Excellent Treatment Effect

The Incinerator’s volume reduction rate of the waste can reach more than 95%, and has a mass reduction rate over 90%.

④ Eco-friendly

There is no odor leakage in the fully-closed micro-negative pressure state of the unloading workshop. The collected leachate is sprayed back into the incinerator to achieve “zero” discharge of wastewater. Two stages of deacidification and dust removal achieve ultra-clean emission of flue gas. Flue gas emissions are in line with local standards. The generated hot water can be used for heating to achieve resource utilization.

⑤ Intelligent Automation

The central control room enables the start-up and stop of most devices, automatic water replenishment and dosing of devices. It is equipped with a variety of online instruments such as temperature, pressure and oxygen content to monitor the operational status of the system in real time.

PRODUCT PARAMENTERS

Model	HTP-3T	HTP-5T	HTP-10T	HTP-15T	HTP-20T
Process	High Temperature Pyrolytsis
Recommended Operational Temperature (℃)	850~1100	850~1100	850~1100	850~1100	850~1100
Gas Retention Time (s)	≥2s	≥2s	≥2s	≥2s	≥2s
Capacity (t/d)	3	5	10	15	20
Installed Power (kW)	50	85	135	158	186
Control Method	PLC Intelligentize/touch screen/buttons
Area of Equipment (m ² )	100	170	200	300	350
Area of The Factory (m ² )	250	300	500	750	850
Weight (t)	30	45	50	65	70

APPLICATION SCOPE

Decentralized point source domestic waste treatment and reuse, such as towns,villages, islands, expressway service areas, infected areas, logistics concentration areas, construction sites.

SUCCESSFUL PROJECT

Domestic waste incinerator project

Household waste incinerator project

Small waste incinerator project

FAQ

(1) Q: Are you factory or tarade company? A: We are a comprehensive ecological environmental protection industry service provider and national high-tech enterprise. It integrates environmental protection technology research and development, engineering design, equipment production and sales, as well as engineering construction operation services. (2) Q: What's your production level? A: We have core competence of R&D technology, advanced equipment, mature project experience.A number of patents and certificates, R&D product variety. More than 90 patents and software copyrights have been obtained, more than 50 kinds of sewage treatment, more than 30 kinds of solid waste treatment. (3) Q: When's the delivery time? A: Normal delivery time 30~90 days depending on the model and product. (4) Q: How much the transportation freight of products? A: The freight depends on the weight and packing size, as well as your area. With good quality and reasonable prices, We are welcomed by customers from all over the world.

(5) Q: Where is the delivery place? What kind of logistics is used?

A: Under normal circumstances, the goods are shipped at Tianjin Port and shipped by sea. If there are special circumstances or you have other needs, we will communicate and negotiate in advance.

(6) Q: Is the pricing final? A: The pricing range is for reference only and is not the final price. Our products can be customized and will be designed and equipped with appropriate components according to your needs. Please be sure to communicate with us before placing an order, your consultation is always welcome!
