- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Mounting type:
-
Panel Mount

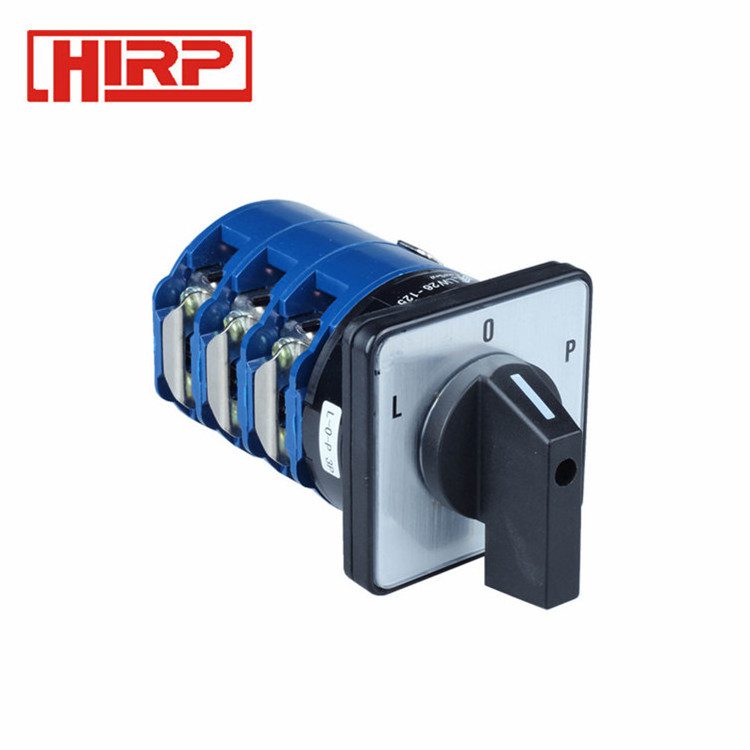

Universal LW26-125 4 pole 3 Position Rotary Switch Cam Switch 125Amp/100 Amp Changeover Switch
Two-position switch with “OFF” position used in control applications to change between alternate power supplies. This device can typically be used to manually switch power supplies from a primary source to a stand-by/emergency supply in the event of a power outage.
Rotary Cam Switch, Changeover Switch, Three Position Switch, Manual change over switch, Transfer Switch
Kraus&Naimer/ Salzer/Bramas Switch/ Breter Switch/ Blue Line
|
Specification |
LW26-63 |
LW26-125 |
||
|
LW26-63F |
||||
|
Rated insulation voltage Ui V |
660/690 |
660/690 |
||
|
Rated thermal current Ith A |
63 |
125 |
||
|
Rated working voltage Ue V |
240 |
440 |
240 |
440 |
|
Rated working current Ie |
||||
|
AC-21A |
63 |
63 |
100 |
100 |
|
AC-23A |
57 |
57 |
90 |
90 |
|
AC-2 |
57 |
57 |
90 |
90 |
|
AC-3 |
36 |
36 |
75 |
75 |
|
AC-4 |
15 |
15 |
30 |
30 |
|
AC-15 |
||||
|
DC-13 |
||||
|
Power |
||||
|
AC-23A KW |
15/10 |
30/18.5 |
30/15 |
45/22 |
|
AC-2 KW |
18.5 |
30 |
30 |
45 |
|
AC-3 KW |
11/6 |
18.5/11 |
15/7.5 |
30/13 |
|
AC-4 KW |
5.5/2.4 |
7.5/4 |
6/3 |
12/5.5 |
Main products:
1,Q:Why your quotation is higher than some other suppliers?
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost 3 position rotary switch which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable 3 position rotary switch!
..............................................................................................................................................................
2,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.
3,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
4,Q: What’s the delivery time?
A: It usually takes about 2-5 working days for small sample order and 10-35 days for big order.
