Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Voltage:
-
220V/380V/415/440V
-
Dimension(L*W*H):
-
1350x1460x1700mm
-
Weight (KG):
-
2500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
automatic manual block making machine
-
name of host machine:
-
concrete block machine in jamaica for sale
-
The size of the pallet:
-
850x450x25mm
-
Weight:
-
2.0 T
-
Vibration force:
-
30KN
-
Model:
-
paver block machine price in india
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
concrete,cement,sand,crushed stone,fly ash,
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 2400pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KAIDONG
-
Voltage:
-
220V/380V/415/440V
-
Dimension(L*W*H):
-
1350x1460x1700mm
-
Weight (KG):
-
2500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
automatic manual block making machine
-
name of host machine:
-
concrete block machine in jamaica for sale
-
The size of the pallet:
-
850x450x25mm
-
Weight:
-
2.0 T
-
Vibration force:
-
30KN
-
Model:
-
paver block machine price in india
-
Certification:
-
CE/ISO9001

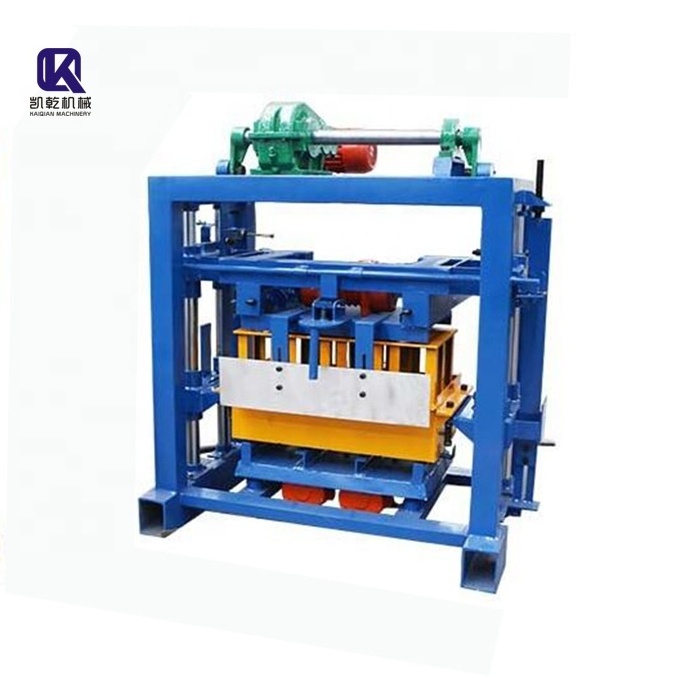

manual concrete QT4-40 block making machine price
manual block making machine
1 . QT4-40 manual block making machine production capacity
|
No |
Size(LxWxH) |
Pcs/Mould |
Pcs/Hour |
Pcs/Shift |
|
1 |
400x200x200mm |
4 |
300 |
2400 |
|
2 |
400x100x200mm |
7 |
525 |
3675 |
|
3 |
400x150x200mm |
5 |
375 |
3000 |
|
4 |
400x250x200mm |
3 |
225 |
1800 |
2. QT4-40 manual block manking machine forming technical parameters
|
Dimension of host machine |
1350x1460x1700mm |
Host machine power |
7.8 KW |
|
Moulding period |
40S |
Vibration force |
30KN |
|
The size of the pallet |
850×450×25mm |
Capacity |
16.3KW |
|
Weight of the machine |
About 2.0T |
Mixer model |
KQ350 |
|
Voltage |
220V/380V/415V/440V |
Workshop area |
60m2 |
3.KQ350 mixer
|
No. |
Item |
Specification |
|
01 |
Model |
JD350 |
|
02 |
Charge volume(L) |
0.35 m3 |
|
03 |
Discharge volume(L) |
0.56 m3 |
|
04 |
Capacity(m3/h) |
≥4m3/h |
|
05 |
Max diameter(pebbles/break stone)mm |
40mm |
|
06 |
power |
7.5 KW |
|
07 |
Machine diameter |
1200mm |
|
08 |
weight |
0.42Ton |
4.Belt conveyor:
|
Item |
Specifaction |
|
Length |
6000mm |
|
Width |
500mm |
|
Speed (m/min) |
1.25 m/min |
|
Specification (ton/hour) |
30-40 ton/hour |
|
power(kw) |
1.1kw |
