Adopt isolation design to make the circuit design more stable, safe, reliable and long-lived; Suitable for high-end hotels, entertainment places, supermarkets, home and other engineering
- Product Details
- {{item.text}}
Quick Details
-
Product Weight（kg）:
-
0.15
-
Luminous Intensity:
-
112
-
Luminous Flux(lm):
-
600
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700-6500K
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-20 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LUTO
-
Certification:
-
RoHS
-
Product name:
-
COB Led Flip Chip
-
Color:
-
White
-
Dimension:
-
14*14mm
-
Emitted area:
-
11mm
-
Application:
-
LED downlight, spotlight, tracklight
Quick Details
-
Warranty(Year):
-
2-Year
-
Luminous Efficacy(lm/w):
-
110
-
Color Rendering Index(Ra):
-
90
-
Product Weight（kg）:
-
0.15
-
Luminous Intensity:
-
112
-
Luminous Flux(lm):
-
600
-
Optical Attenuation(%):
-
0.1
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
120
-
Color Temperature:
-
2700-6500K
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-20 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LUTO
-
Certification:
-
RoHS
-
Product name:
-
COB Led Flip Chip
-
Color:
-
White
-
Dimension:
-
14*14mm
-
Emitted area:
-
11mm
-
Application:
-
LED downlight, spotlight, tracklight
Product Description

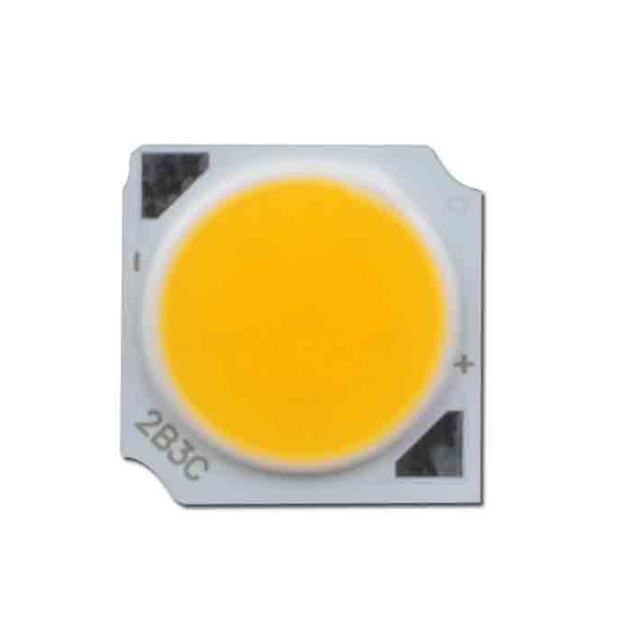

1313 HIGH CRI COB LED
Adopt high color rendering phosphor scheme to make light better and healthier, and create a better light environment;
The use of large-size chips has higher light efficiency, stronger resistance to large current and longer service life;
The luminous efficiency of the product is 108lm-118lm/W, the index is greater than 90, and R9 is greater than 45;
1313 Detailed parameters
|
Power(W)
|
Current IF(mA)
|
Voltage VF(V)
|
LM
|
LM/W
|
color temperature(K)
|
|
5W
|
300
|
15
|
495
|
120
|
3000
|
|
7W
|
300
|
21
|
690
|
120
|
3000
|
|
12W
|
300
|
36
|
1150
|
120
|
3000
|
1313 Full Spectrum C system
Adopt full-spectrum phosphor scheme to truly restore sunlight, make light healthier and make the illuminated object more realistic;
The use of large-size chips has higher light efficiency, stronger resistance to large current and longer service life;
The luminous efficiency of the product is 100lm-110lm/W, the index is greater than 97, and R9 is greater than 80; Adopt isolation design to make the circuit design more stable, safe, reliable and long-lived; Suitable for museums, exhibition halls, high-end hotels, home villas and other engineering applications.
1313 Conventional H system
Adopting high luminous efficiency phosphor scheme, the blue chip fully excites the phosphor, so as to improve the luminous efficiency of the product and achieve a cost-effective product;
Adopt cost-effective chips, more series designs and higher voltage reduction;
The luminous efficiency of the product is 115lm-125lm/W, and the apparent index is greater than 80;
Non-isolation design is adopted to make the circuit design cost lower;
Suitable for hotel KTV, entertainment places, supermarkets, home and other engineering applications.
700
750 780
16±0.2
1304 High density series
Adopt full-spectrum phosphor scheme to truly restore sunlight, make light healthier and make the illuminated object more realistic;
The use of large-size chips has higher light efficiency, stronger resistance to large current and longer service life;
The luminous efficiency of the product is 100lm-110lm/W, the index is greater than 97, and R9 is greater than 80; Adopt isolation design to make the circuit design more stable, safe, reliable and long-lived; Suitable for museums, exhibition halls, high-end hotels, home villas and other engineering applications.
