Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT
-
Model Number:
-
TT-NWK042M
-
Product name:
-
WiFi NVR IPC Kits
-
Video Input:
-
4-CH * 1080P / 960P / 720P
-
Audio output/Output:
-
1 Channl RCA output and two way Talk
-
Interface:
-
Mouse, USB *3, Network, VGA, HDMI
-
Two-way Talk:
-
Support
-
Mobile Remote Viewing:
-
Support
-
Plug and Play:
-
Support
-
Power Supply:
-
DC12V 3A
Quick Details
-
Network:
-
ONVIF, TCP, Ip, SDK
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Special Features:
-
NIGHT VISION, Two-way Audio, Human Motion Tracking, Motion Detection
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT
-
Model Number:
-
TT-NWK042M
-
Product name:
-
WiFi NVR IPC Kits
-
Video Input:
-
4-CH * 1080P / 960P / 720P
-
Audio output/Output:
-
1 Channl RCA output and two way Talk
-
Interface:
-
Mouse, USB *3, Network, VGA, HDMI
-
Two-way Talk:
-
Support
-
Mobile Remote Viewing:
-
Support
-
Plug and Play:
-
Support
-
Power Supply:
-
DC12V 3A
Related Products
Product Description
|
Product Name
|
4CH WIFI H.265 NVR KITS
|
|
Model
|
TT-NWK042M
|
|
Function
|

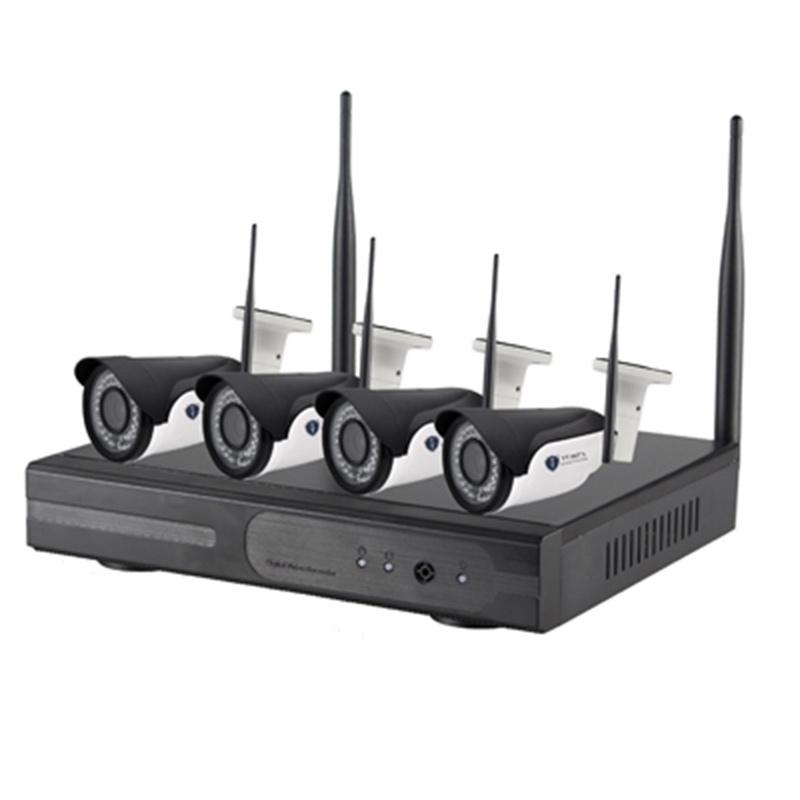

4 Channel H.265 2.0mp WiFi NVR and 4pcs 2.0mp 1080P Metal Bullet Camera
|
Major Features:
WIFI NVR IPC Kits
1*4 channel H.265 WIFI NVR 1080P (support 1 HDD)
1* power adapters (for WIFI NVR)
1* Mouse (for WIFI NVR)
4 * 2.0mp bullet WIFI h.265 IR Camera with 3.6mm lens and 36 Leds
4* power adapters (for WIFI Camera)
Product Specifications
|
Model
|
TT-X2MY6W
|
|
|
Image Sensor
|
1/2.7" Progressive Scan CMOS
|
|
|
Min. Illumination
|
0.01Lux @(F1.2,AGC on)
0Lux with IR |
|
|
Shutter time
|
1/50 s ~ 1/10,000s
|
|
|
Lens
|
3.6mm Mega Pixel Fixed Lens
|
|
|
Day& Night
|
Auto Switch IR Cutter Filter
|
|
|
Wide Dynamic
|
120 dB
|
|
|
DNR
|
3D DNR
|
|
|
Compression Standard
|
|
|
|
Compression
|
H.265 + / H.264 / MPEG
|
|
|
H.264 Code
|
Main Profile
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
|
|
|
|
Resolution
|
1920*1080
|
|
|
Frame Rate
|
1920*1080 (25/30fps)
|
|
|
Image Enhancement
|
AGC, 3D DNR, WDR, Sharpness
|
|
|
Image Settings
|
Motion Detection, Privacy Mask, Video Tampering
|
|
|
Day/Night Switch
|
Auto/Outside Trigger/Color/Black White
|
|
|
Network
|
|
|
|
Network Storage
|
NVR & CMS
|
|
|
Protocols
|
TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP
|
|
|
General Function
|
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask
|
|
|
System Compatibility
|
ONVIF2.4, PSIA, CGI, SPR
|
|
|
Browser
|
IE
|
|
|
Interface
|
|
|
|
Interface
|
1* RJ-45 10M/100MEthernet Port
|
|
|
General
|
|
|
|
Operating Temp.
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
|
|
|
Operating Humidity
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply
|
12 VDC ± 25%,
|
|
|
PoE
|
PoE (IEEE 802.3af Class3) (Optional)
|
|
|
Power Consumption
|
Max. 6W
|
|
|
IR Range
|
25-30 Meters
|
|
|
Dimensions(mm)
|
200mm*60mm*65mm
|
|
|
Net Weight (kg)
|
0.5kg
|
|
|
Video Output
|
1 VGA, 1 HDMI interface
|
|
|
Network Interface
|
1 RJ45 10 / 100M adaptive Ethernet interface
|
|
|
Alarm Interface
|
N/A
|
|
|
485 Interface
|
N/A
|
|
|
USB interface
|
2 USB 2.0 ports
|
|
|
Hard disk interface
|
2 SATA 2.0 interface; SATA interface supports a maximum capacity of 6T
|
|
|
Other
|
|
|
|
PTZ control
|
Control PTZ via network
|
|
|
ONVIF
|
Support
|
|
|
power supply
|
DC12V 3A
|
|
|
Power consumption
|
≤18W
|
|
|
working environment
|
-10℃～+50℃ 10%～95%RH
|
|
Company Introduction
TT / HTW has performed a remarkable achievement in Security Field since its established in 2004, based in Shenzhen China over the decades, we experienced from the traditional CCD CVBS/SDI analogue camera period went through to the HD CMOS camera period, and till current popular 4K IP camera system and HD Cloud Home Wi-Fi Camera.
Our Services & Strength
Manufacturing and exporting experiences in surveillance monitoring since 2004, TT / HTW has been focusing on its quality and services with best competitive prices ever since, with highly experienced R&D team, advanced SMT machines and professional management teams, combined together to guarantee the quality control system in order to deliver the only qualified products to our customers.
FAQ
1. What's the MOQ?
No MoQ
2. What is your quality warranty?
2 year warranty.
3. Should we use our logo/brand?
Yes, of course. OEM is absolutely supported.
4. What certifications do you have?
All our products are with CE and RoHS certificates.
5. What’s the lead-time?
2-3 working days for sample orders, and 5-7 working days for regular small orders, 10-15 working days for large quantity orders.
6. Are you factory or trade company?
We are security camera NVR and DVR manufacturer since 2004 located in Shenzhen, Guangdong, China.
7. Do you hold quantities in stock ready to ship?
Some model read to ship, some we have raw materials
8. What about your after-sale services?
as you can see from our Alibaba shop that we have 5 star review and on time response.
