Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Zhejiang, China
-
Weight (KG):
-
55 KG
-
Applicable Industries:
-
all industries
-
Core Components:
-
Laser Source
-
Product name:
-
Fiber Laser Marking Machine
-
Laser Power:
-
20W/30W/50W/100W
-
Laser source:
-
IPG Raycus Max JPT
-
Applicable Material:
-
Metal Non-metal Materials
-
Marking Speed:
-
0-7000mm/s
-
Marking Depth:
-
0-0.5mm
-
Laser wavelength:
-
1064nm
-
Power supply:
-
110V/220V Optional
-
Product Keywords:
-
cnc laser engraving machine
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Zhejiang, China
-
Weight (KG):
-
55 KG
-
Applicable Industries:
-
all industries
-
Core Components:
-
Laser Source
-
Product name:
-
Fiber Laser Marking Machine
-
Laser Power:
-
20W/30W/50W/100W
-
Laser source:
-
IPG Raycus Max JPT
-
Applicable Material:
-
Metal Non-metal Materials
-
Marking Speed:
-
0-7000mm/s
-
Marking Depth:
-
0-0.5mm
-
Laser wavelength:
-
1064nm
-
Power supply:
-
110V/220V Optional
-
Product Keywords:
-
cnc laser engraving machine
Specification
20w 30w 50w 100w fiber laser marking machine price
|

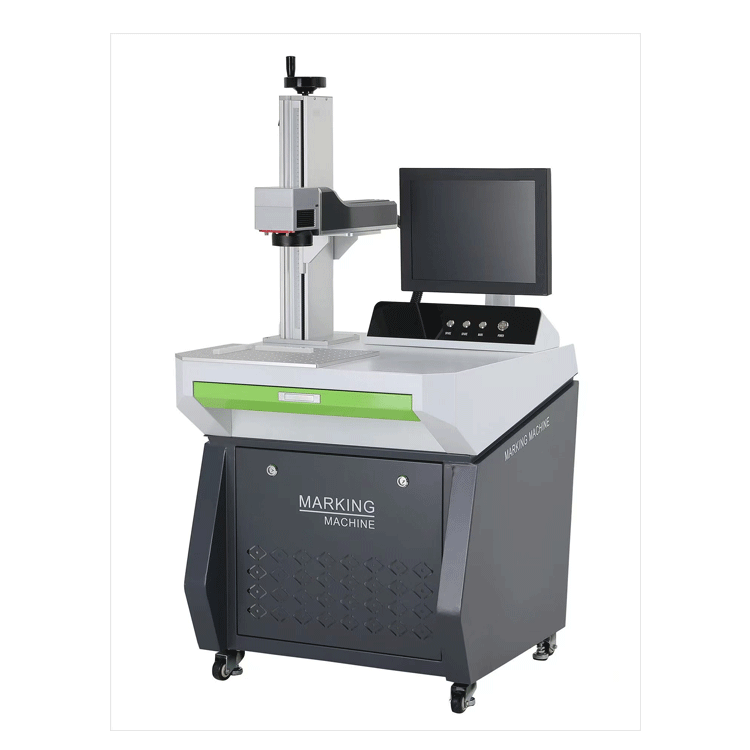

20w 30w 50w 100w Desktop Fiber Laser Marking Machine
|
|
|
|
Laser Source Type
|
Fiber laser
|
|
|
Laser Source
|
Raycus/Max/Ipg/Jpt
|
|
|
Laser Power
|
20W 30W 50W 100W
|
|
|
Laser Type
|
pulse / continuous
|
|
|
Laser Wavelength
|
1064nm
|
|
|
Marking Area
|
75*75mm 110*110mm 150mm*150mm
175mm*175mm 200*200mm 300*300mm |
|
|
Marking Depth
|
≤1.2mm
|
|
|
Marking Speed
|
0-7000mm/s
|
|
|
Minimum Line Width
|
0.012mm
|
|
|
Minimum Character
|
0.15mm
|
|
|
Repeated Precision
|
±0.002mm
|
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
|
Beam Quality
|
M2 <1.5
|
|
|
Focus Spot Diameter
|
<0.01mm
|
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
|
System Operation Environment
|
Windows XP / W7--32/64bits / W8--32/64bits
|
|
|
Cooling Mode
|
Air cooling--Built-in
|
|
|
Temperature of Operation Environment
|
15℃~35℃
|
|
|
Power Supply
|
AC220V 50Hz / AC110V 60Hz
|
|
|
Power Requirement
|
<500W
|
|
|
Communication Interface
|
USB
|
|
|
Machine Dimension
|
65*65*142cm
|
|
|
Net Weight
|
55KG
|
|
|
Wooden Package
|
75*85*110cm 110kg
|
|
|
Optional
|
Rotary Device, Moving Table, other customized Automation
|
|
|
Marking Meterial
|
metal as gold sliver copper stainless steel Aluminum alloy ...
non metal as pvc,pe,abs,and so on. |
|
|
Marking Content
|
Text, LOGO, pattern, number, letter, QR code, barcode, serial number, time and date, anti-counterfeiting code, etc.
|
|
|
Marking Content
|
Jewelry as earrings ring necklace bracelet..Food Package as cola can beer can milk powder can can lid..
3C as phone case charger U disk data line.. other as Metal nameplate dog tag bird ring button.. |
|
|
Custom Machine
|
3D Laser Marking Machine/MOPA Color marking machine
|
|
Product Description
Applications
The main applicable materials of fiber laser marking machine include: common metals and alloys (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are Can), special surface treatment (phosphating, aluminum anodizing, electroplating surface), ABS material (electrical appliance shell, daily necessities), ink (translucent keys, printed products), epoxy resin (electronic component packaging, insulating layer) .
Packing & Delivery
The fiber laser marking machine is first marked with plastic film, and the outside is packed in wooden boxes, and the gaps are filled with foam to prevent the impact during transportation.
Custom package is alse available.
