Quick Details
-
Inner Space:
-
750*400*165
-
Self Weight:
-
85kg
-
Chassis Loading Weight:
-
120kg
-
Width of Chassis:
-
150mm
-
Motor Power:
-
880W*2
-
Motor:
-
48V Brushless DC Motor
-
IP Grade:
-
IP54
-
Scale:
-
1:10
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support
-
Dimension:
-
1185*7645*395
-
Inner Space:
-
750*400*165
-
Self Weight:
-
85kg
-
Chassis Loading Weight:
-
120kg
-
Width of Chassis:
-
150mm
-
Motor Power:
-
880W*2
-
Motor:
-
48V Brushless DC Motor
-
IP Grade:
-
IP54
-
Scale:
-
1:10
HOT SALE Robot Platform Chassis
We can offer different styles robot platform to meet for your Variety of needs,If you need samples, please contact us.
all terrain voertuigen rubber personal tracked vehicle for sale
| Brief introduction all terrain voertuigen rubber personal tracked vehicle for sale |

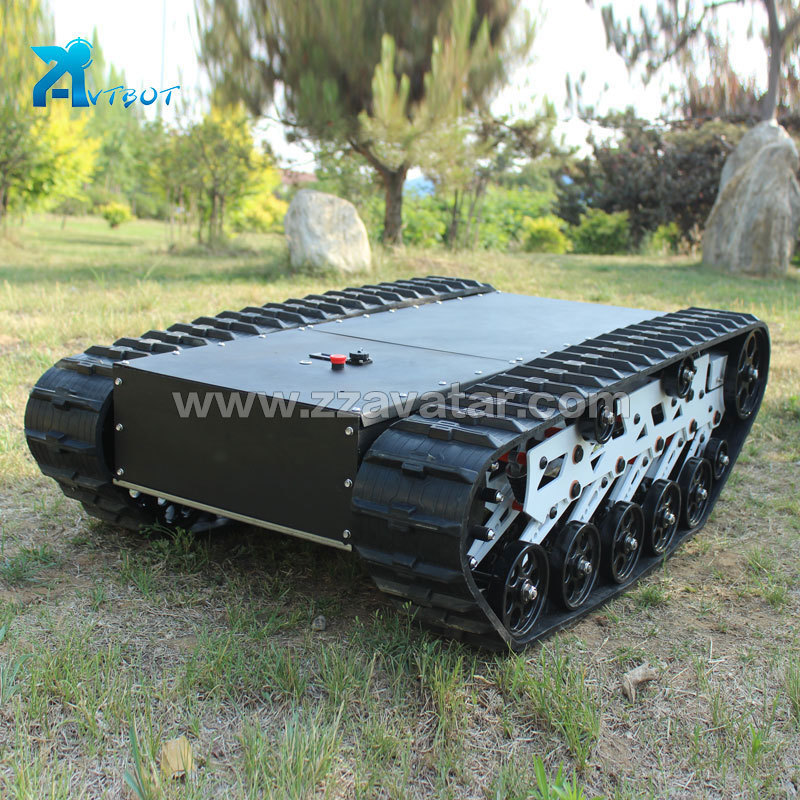

AVT-12T robot chassis is widely applied for mobile solution for fire-fighting roobt, eod robot, service robot, moving robot, etc.
AVT-12T robot rubber track system is with classic suspension design, automatic tension track, optimized vehicle structure, and provides a wider stable platform for the customers, especially providing stable track selection for the camera industry. The vehicle adopts the christy independent suspension design. the shock stroke is 50mm, the 10 sets of suspension arms and the automatic tensioning suspension system are suitable for the smooth running of the complex haline surface. The climbing obstacle is superior, modular design, easy to replace components, wireless control, can realize zero radius rotation, 4 degrees of freedom.AVT-12T 120KG loading crawler robot rubber track system from China factory
|
|
| Application all terrain voertuigen rubber personal tracked vehicle for sale |
Welcome to contact us,please click here!
| Main Features all terrain voertuigen rubber personal tracked vehicle for sale |
1. 200mm ground clearance, excellent trafficability.
2. Ten groups of shock absorption desigh, suitable for complex terrain smooth running
3. Since the tension induced wheel design, ensure best crawler firmness in real time
| Technical parameter all terrain voertuigen rubber personal tracked vehicle for sale |
| Item | Data |
| Dimension | 1185*765*395mm |
| Inner Space | 750*400*165mm |
| Self Weight | 85kg |
| Chassis Loading Weight | 120kg |
| Height of Chassis | 200mm |
| Width of Chassis | 150mm |
| IP Grade | IP54 |
| Reduction Ratio | 1:10 |
| Running Speed | 0-5km/h |
| Motor | 48V Brushless DC Motor |
| Motor Power | 880W*2 |
| Reduction Drive | NMRV50 |
| Motor Rated Torque | 60NM |
| Wheel Material | Aluminum |
| Crawler Material | Quality Rubber Embedded with Kovlar Fiber |
| Suspension System | Independent*12 |
| Body Material | 304 Stainless Steel Skin galvanized square pipe |
| Surface Treatment | Spraying Plastics/Partial Spray Painting |
| Developed Robot Case all terrain voertuigen rubber personal tracked vehicle for sale |
| Multi-functional Crawler for Firefighting Robot | Firefighting Robot with Robotic Chassis | Explosion Detection Robot |
| Packing and Delivery all terrain voertuigen rubber personal tracked vehicle for sale |
It has been exported to Canada, Malaysia, USA, Saudi Arabic, UAE, Norway, Panama, Argentina, etc. You are welcome to visit our factory. We will show and operate machine here for you.
Our company
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd. is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products.
With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
| After Sales Service all terrain voertuigen rubber personal tracked vehicle for sale |
1.Warranty: one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: Most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: We will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: Your question will be answer within 24 hours during working days, 48 hours during holiday.
| Send inquiry amphibious tracked vehicle aluminum mobile robot |
Dear customers, if you are interested in AVT-12T robot chassis platform and want to know more information.
Welcome to contact us,please click here!
