Quick Details
-
Power:
-
7.5KW
-
Working Chamber Size:
-
L1300*W1300*H780mm
-
Footprint Size:
-
L1720*W3658*H2265mm
-
Suitable Wheel Size:
-
Diameter 700mm*Thickness 500mm (or smaller)
-
Control System:
-
PLC
-
Rotating Speed of Rollers:
-
Adjustable
-
Shot Blasting Speed:
-
Adjustable
-
Dust Collector Type:
-
Auti-flame filters
-
Power Supply:
-
Electric
-
Fan Motor Power:
-
2.2kw
-
Impeller Head Power:
-
7.5kw
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
KAFAN
-
Weight (KG):
-
500 KG
-
Power:
-
7.5KW
-
Working Chamber Size:
-
L1300*W1300*H780mm
-
Footprint Size:
-
L1720*W3658*H2265mm
-
Suitable Wheel Size:
-
Diameter 700mm*Thickness 500mm (or smaller)
-
Control System:
-
PLC
-
Rotating Speed of Rollers:
-
Adjustable
-
Shot Blasting Speed:
-
Adjustable
-
Dust Collector Type:
-
Auti-flame filters
-
Power Supply:
-
Electric
-
Fan Motor Power:
-
2.2kw
-
Impeller Head Power:
-
7.5kw
Products Description

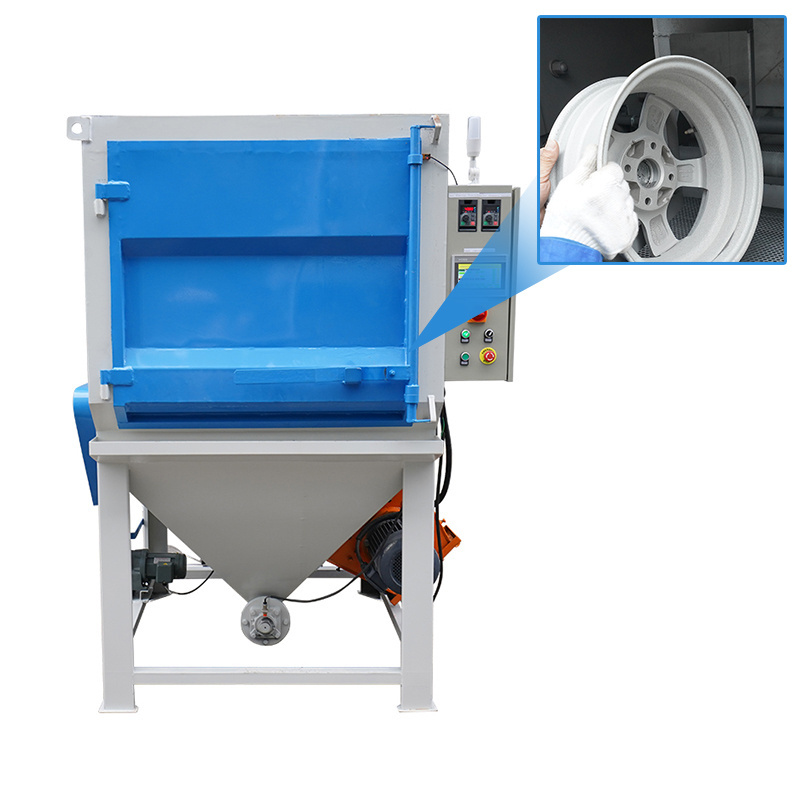

Alloy wheels automatic shot blasting equipment airless steel shot blaster
The shot blasting machine is an automated labour saving system which significantly simplifies the blasting process for wheel cleaning and finishing. Shot blasting machine gives an alloy wheel rim surface a roughness for good adhesion that will get perfect powder coat application.
Automatic shot blasting machine features：
1. Special design for wheel or rim shot blasting.
2. One piece wheel each time, full cover one wheel, don't need to turn over the wheel.
3. Airless shot blasting to save power, compact design for saving space.
4. Dust collection system to keep the environment clean.
5. Inner cabinet is equipped with wear-resisting board.
Details Images
Bucket Elevator
The abrasive dropped to the separator at the force of gravity In the process of working, the hopper in the transport belt brings the abrasives from the bottom, and drop at the gravity. Using polyester transport belt, squirrel cage roller, intermediate slightly protruding, which not only improves the lifting friction between the belt and pulley, avoiding the old light pulley slippage, but also reduces the lifting belt pretension force, extending the life of lifting tape. And can prevent the projectile stuck in between the lower pulley and the belt so the belt deviation phenomenon, flowing from the projectile between the spokes and the belt.
Dust Removal System
The dust collector filter is characterized by adhering a layer of submicron ultra-thin fibers to a general filter material, and the fibers are arranged very closely on the adhesive layer, the dust can not penetrate into the interior of the filter material, it has the characteristics of low resistance and easy cleaning, and its filtration precision reaches 5μ, which is unmatched by ordinary bag filter.
Electric control system
The whole system can be manually controlled, which is convenient for debugging. the operator can start each functional component in sequence, or jog the individual functional components (such as the hoist) to test the performance and operation status.
Impeller Head
The head is designed for complete shot blasting of the wheel to be cleaned, and minimize the empty throw of the steel shot on the basis of covering all the wheels to be cleaned.
Separator
This machine adopts advanced BE type full curtain separator. The separator is mainly composed of a sorting area, a shot storage area, and a manual control gate.
Manufacturing Technique
|
Working Chamber Size
|
L1300*W1300*H780mm
|
|
Footprint Size
|
L1720*W3658*H2265mm
|
|
Suitable Wheel Size
|
Diameter 700mm*Thickness 500mm (or smaller)
|
|
Control System
|
PLC
|
|
Rotating Speed of Rollers
|
Adjustable
|
|
Shot Blasting Speed
|
Adjustable
|
|
Dust Collector Type
|
Auti-flame filters
|
|
Power Supply
|
Electric
|
|
Fan Motor Power
|
2.2kw
|
|
Impeller Head Power
|
7.5kw
|
|
Shot Drive Power
|
1.5kw
|
|
Elevator System Power
|
2.2kw
|
Application
The automatic shot blasting machine that specializes in processing wheels is especially suitable for rust removal, decontamination, and coating removal of alloy wheels and rims. It has high efficiency, good processing effect, and does not need to use an air compressor.
