Quick Details
-
Table Travel (Z) (mm):
-
200 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2023
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
1.2
-
Production Capacity:
-
10 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Premier Machines
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1620*1040*2200mm
-
Weight (T):
-
1.2 T
-
Max length of cylinder head:
-
Unlimilted
-
Max. width of the cylinder head:
-
500mm
-
Max. height of the cylinder head:
-
450mm
-
Max. boring dia.:
-
16-60mm
-
Longitudinal travel of workhead:
-
930mm
-
Cross travel of workhead:
-
40mm
-
Inclination angle of workhead:
-
±3°
-
Vertical travel of spindle:
-
200mm
-
Spindle power:
-
1.2kw Servo motor
-
Spindle speed:
-
50-1000 stepless
Quick Details
-
Table Size (mm):
-
Unlimited
-
Table Travel (X) (mm):
-
930 mm
-
Table Travel (Y) (mm):
-
40 mm
-
Table Travel (Z) (mm):
-
200 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2023
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
1.2
-
Production Capacity:
-
10 Sets/month
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Premier Machines
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1620*1040*2200mm
-
Weight (T):
-
1.2 T
-
Max length of cylinder head:
-
Unlimilted
-
Max. width of the cylinder head:
-
500mm
-
Max. height of the cylinder head:
-
450mm
-
Max. boring dia.:
-
16-60mm
-
Longitudinal travel of workhead:
-
930mm
-
Cross travel of workhead:
-
40mm
-
Inclination angle of workhead:
-
±3°
-
Vertical travel of spindle:
-
200mm
-
Spindle power:
-
1.2kw Servo motor
-
Spindle speed:
-
50-1000 stepless

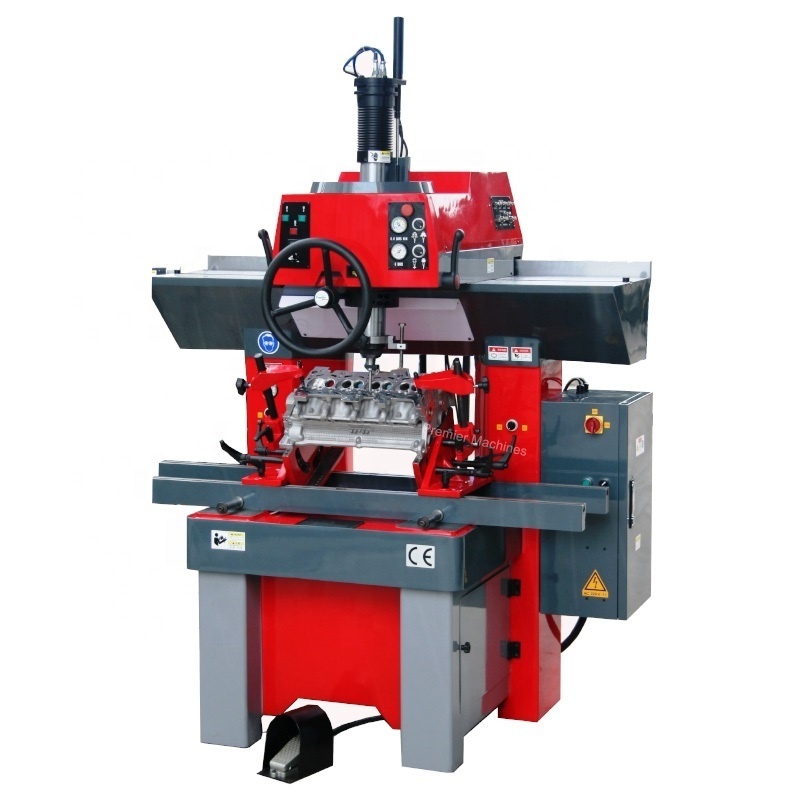

Valve Seat Boring Machine
Model: VS60
2) Machining Capacity: 14 mm / 0.55″ - 60 mm / 2.36″
3) Modernized design of standard machine body to agree with the improved rigidity. Dynamic and static features are optimized by computer to provide the most advanced machining process.
4) Improved lighting system
5) Pneumatic clamping of table bars
6) Fully integrated spindle motor: Infinitely variable speed 100 – 1200 rpm, with sensorless Vector Flux Control in open loop. Extremely broad torque ratings from lowest RPM with constant torque spindle rotation. Digital RPM read-out for accurate speed setting.
7) Lightweight workhead: built-in spindle motor and triple air-float automatic centering system. Minimal workhead inertia and maximal floatation for unmatched centering sensitivity.
8) High-quality three color saturation painting.
|
Model |
VS60 |
|
Max length of cylinder head |
Unlimilted |
|
Max. width of the cylinder head |
500mm |
|
Max. height of the cylinder head |
450mm |
|
Max. boring dia. |
16-60mm |
|
Longitudinal travel of workhead |
930mm |
|
Cross travel of workhead |
40mm |
|
Inclination angle of workhead |
±3° |
|
Vertical travel of spindle |
200mm |
|
Spindle power |
1.2kw Servo motor |
|
Max. torque of spindle motor |
18Nm |
|
Spindle speed |
50-1000 stepless |
|
Power of bit grinder |
0.3kw |
|
Rotation speed of bit grinder |
2800rpm |
|
Tilt angle of clamping system |
+42° to -15° |
|
Required rated pressure |
6 bar / 85 psi |
|
Required max. air flow |
300L / min |
|
Dimension |
1450x1050x2180mm |
|
Roundness of finishing |
Ra0.6 |
|
Packing size |
1620x1040x2200mm |
|
N.W./G.W. |
1000/1200kg |
1) Carbide pilot with shank dia. 9.52mm
2) Tool holder NWN5100F - 1pc 3) Bit holder - 3 pcs
4) Carbide cutting bit - 10pcs
5) Dial gauge 1pc
Leveller for Valve Seat 1pc
Tool Setting Device 1pc, Vacuum Pad 1 set
T8x60 Torx Driver 1pc
9 pcs ball point hex key set 1 set
Bit Sharpener 1 set
1) Levelling Device
2) Special Leveller for Valve Seat
3) Adaptor for MT2 to Taper ISO30
4) Pneumatic Cleaner
5) Precision Counterboring Setting Micrometer
6) Portable Vacuum Tester
