* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
- Product Details
- {{item.text}}

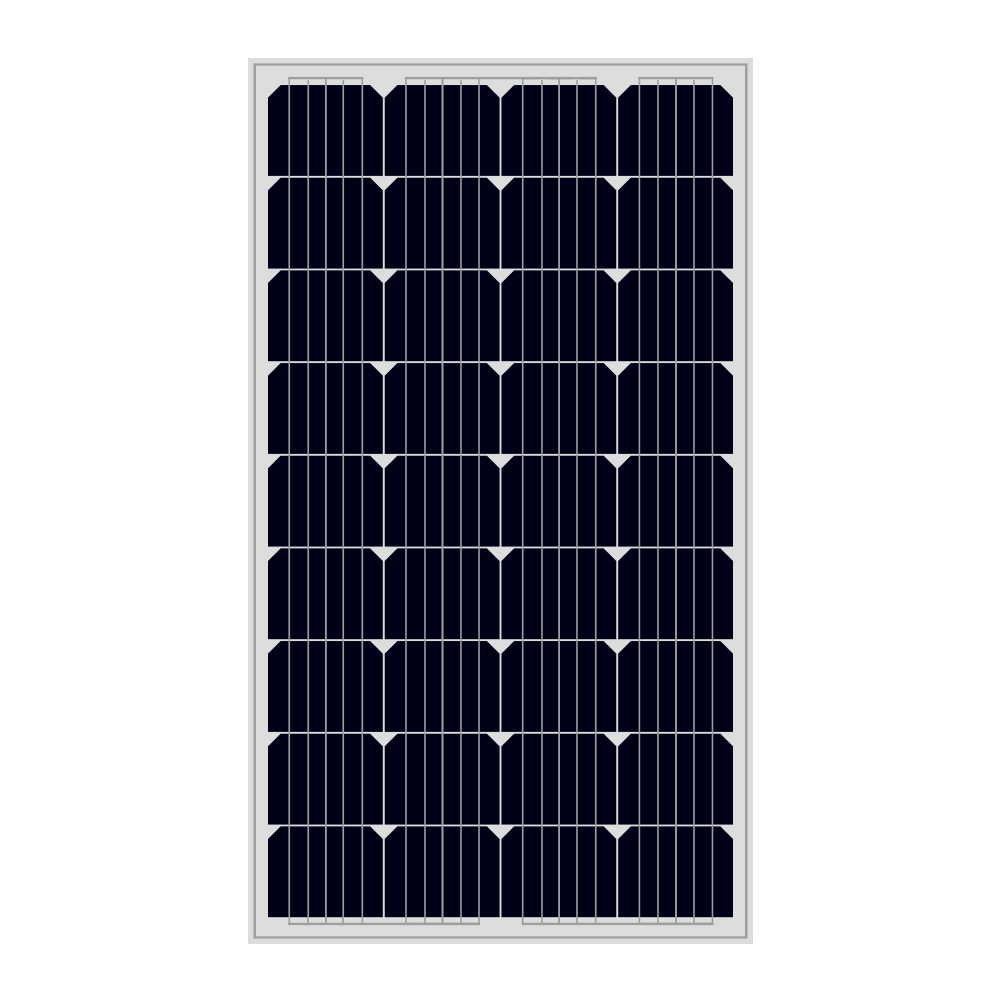

Quick Details
-
Panel Efficiency:
-
15.04%
-
Name:
-
24v solar panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono 104*156 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee, 25 years
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Application:
-
Solar System Solar Street Light
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, Flexible
-
Size:
-
1000*665*30mm
-
Certificate:
-
ce/tuv
Quick Details
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM100-36
-
Place of Origin:
-
Anhui, China
-
Panel Efficiency:
-
15.04%
-
Name:
-
24v solar panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono 104*156 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee, 25 years
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Application:
-
Solar System Solar Street Light
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, Flexible
-
Size:
-
1000*665*30mm
-
Certificate:
-
ce/tuv
Product Description
|
Model
|
GSM10-36
|
GSM20-36
|
GSM30-36
|
GSM40-36
|
|||
|
Peak Power Watts(Pmax/W)
|
10
|
20
|
30
|
40
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp)[V]
|
18.1
|
18.1
|
18.4
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.1
|
22.1
|
22.6
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
0.55
|
1.10
|
1.63
|
2.15
|
|||
|
Short Circuit Current(Isc) [A]
|
0.60
|
1.19
|
1.76
|
2.32
|
|||
|
Module Dimenstion(mm)
|
496*190*25
|
496*350*25
|
656*350*25
|
425*665*30
|
|||
|
Module Weight(kg)
|
1.2
|
2.0
|
2.5
|
3.4
|
|||
|
Model
|
GSM50-36
|
GSM60-36
|
GSM70-36
|
GSM80-36
|
|||
|
Peak Power Watts(Pmax/W)
|
50
|
60
|
70
|
80
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
18.6
|
18.6
|
18.6
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.8
|
22.8
|
22.8
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
2.69
|
3.23
|
3.76
|
4.3
|
|||
|
Short Circuit Current(Isc) [A]
|
2.9
|
3.48
|
4.06
|
4.65
|
|||
|
|
500*665*30
|
600*665*30
|
650*665*30
|
770*665*30
|
|||
|
Module Weight(kg)
|
4.0
|
4.8
|
5.2
|
5.7
|
|||
|
Model
|
GSM90-36
|
GSM100-36
|
GSM110-36
|
GSM120-36
|
|||
|
Peak Power Watts(Pmax/W)
|
90
|
100
|
110
|
120
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
18.4
|
18.4
|
18.6
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.6
|
22.6
|
22.8
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
4.89
|
5.43
|
5.91
|
6.45
|
|||
|
Short Circuit Current(Isc) [A]
|
5.28
|
5.87
|
6.39
|
6.97
|
|||
|
Module Dimensition(mm)
|
870*665*30
|
1000*665*30
|
1000*665*30
|
1120*665*30
|
|||
|
Module Weight(kg)
|
6.5
|
7.5
|
7.5
|
8.4
|
|||
Grade A Materials
Tempered Glass
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealabilityPV Connector
* 4mm2 Qualified cable with
PV Connector
* 500N Tensile Strength
Factory
Why Choose Us ?
Packing & Transport
5 or 7 layers Corrugated Cartons , reinforced wooden box with pallet.
All-round protection your products during transportation.
Make sure all solar panels safety .
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
270
|
648
|
696
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment & Warranty
Payment:
You can choose a convenient payment term according to your local condition, and we accept Telegraphic Transfer, Western Union, L/C at sight, and on-line payment.
If you are worry about your money safety, we recommend Alibaba Trade Assurance Payment, which can protect your money until you receive your products.
More info please click the below picture:
Solar Panels Warranty:
Damage in transit (CNF Terms), we will make up for you free without any reason.
