Quick Details
-
Item:
-
FARDRIVER Controller ND841800HR ND961800HR
-
Application:
-
Electric Motorcycle
-
Rated voltage:
-
84V/96V
-
Package:
-
Package in carton
-
Production time:
-
3-10 working days
-
Motor type:
-
DC Motor
-
Thermic Probe:
-
FARDRIVER
-
Max DC current:
-
1300A
-
Peak Motor Phase Current Limit:
-
1800A
-
Waterproof:
-
IP67
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIAECOSYS
-
Model Number:
-
ND841800HR ND961800HR
-
Item:
-
FARDRIVER Controller ND841800HR ND961800HR
-
Application:
-
Electric Motorcycle
-
Rated voltage:
-
84V/96V
-
Package:
-
Package in carton
-
Production time:
-
3-10 working days
-
Motor type:
-
DC Motor
-
Thermic Probe:
-
FARDRIVER
-
Max DC current:
-
1300A
-
Peak Motor Phase Current Limit:
-
1800A
-
Waterproof:
-
IP67

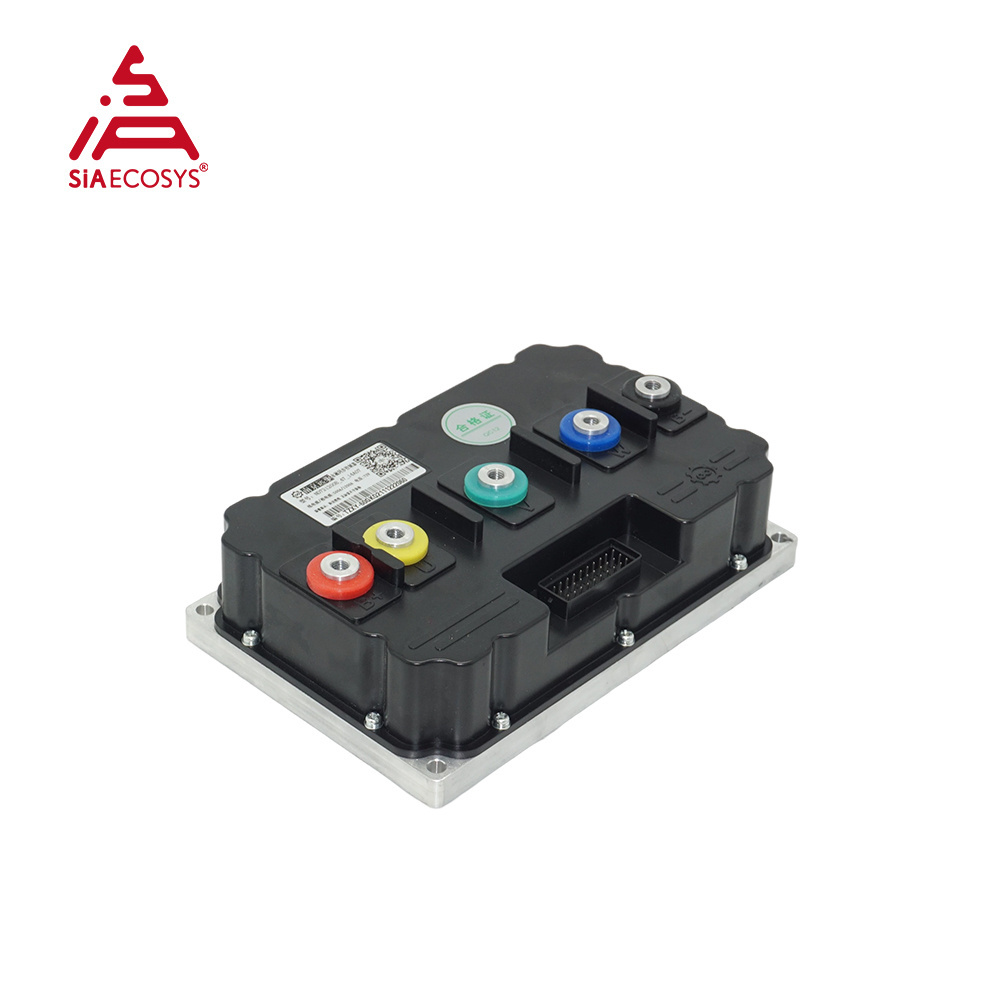

Far Driver ND 841800HR ND961800HR 96V 84V 1300A Max DC Current Programmable Controller With Regenerative Braking Function
FarDriver controller is sine wave type controller , which is brushless DC controller with self-learning function . Generally, it match es well with QS Motor s , if you want to match with new brand motor, some parameters should be tested by yourself.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
One set including below kits
ND841800HR Kit
| 1 |
1. 1pcs X ND841800 HR sine wave controller |
| 2 | 1pcs X blue-tooth adapter |
ND961800HR Kit
| 1 |
1. 1pcs X ND961800 HR sine wave controller |
| 2 | 1pcs X blue-tooth adapter |
Key Features
1 ). All the raw materials are imported, using high-performance Moss tube
2 ). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3 ). Small in size
4 ). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). With flux weakening function.( The product does not contain magnetism )
Product Description
HR Version is the advanced Version with higher phase current and DC current
ND841800 and ND961800 are sine wave controller with waterproofing grade IP67, suit for 15-17kw motors.
It ’ s Hall version (as default) which suit with Hall motors.
It could also support Encoders, but please check with sales to order Encoder version.
ND841800HR/ND961800HR Spec
Drawing
The controller is without heatsink, please noted
If you want the heatsink, please contact seller to order it separately.
Adapter Cable
Dongle
Harness Definition
Software interface ( APP )
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
Recommend motor
QSMOTOR 12*3.5inch 268 80H 20kW 72V Powerful Racing Hub Motor
