Quick Details
-
Voltage:
-
380-400V 55Hz 3phase
-
Dimension(L*W*H):
-
790*178*2794mm (31"*7"*110")
-
Application:
-
Agriculture and Forestry/Factury, Furniture factory
-
Weight (KG):
-
380 KG
-
Power (kW):
-
5.5-7.5KW
-
Max.Working Width(mm):
-
790mm
-
Marketing Type:
-
Hot Product 2021
-
Model:
-
HS31E
-
Power:
-
Electric Motor 7.5KW optional
-
Cutting capacity:
-
790*178*2794 Mm (31"*7"*110")
-
Frame:
-
4 Pcs
-
Blade size:
-
3670*34*0.9 Mm
-
Blade speed:
-
17 M/min
-
Distance teeth:
-
22 Mm
-
Blade Wheel Dia.:
-
475 Mm
-
Weight:
-
350-380 Kg
-
Color:
-
Customer's Requirement
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAWK
-
Usage:
-
farm/ factory
-
Voltage:
-
380-400V 55Hz 3phase
-
Dimension(L*W*H):
-
790*178*2794mm (31"*7"*110")
-
Application:
-
Agriculture and Forestry/Factury, Furniture factory
-
Weight (KG):
-
380 KG
-
Power (kW):
-
5.5-7.5KW
-
Max.Working Width(mm):
-
790mm
-
Marketing Type:
-
Hot Product 2021
-
Model:
-
HS31E
-
Power:
-
Electric Motor 7.5KW optional
-
Cutting capacity:
-
790*178*2794 Mm (31"*7"*110")
-
Frame:
-
4 Pcs
-
Blade size:
-
3670*34*0.9 Mm
-
Blade speed:
-
17 M/min
-
Distance teeth:
-
22 Mm
-
Blade Wheel Dia.:
-
475 Mm
-
Weight:
-
350-380 Kg
-
Color:
-
Customer's Requirement

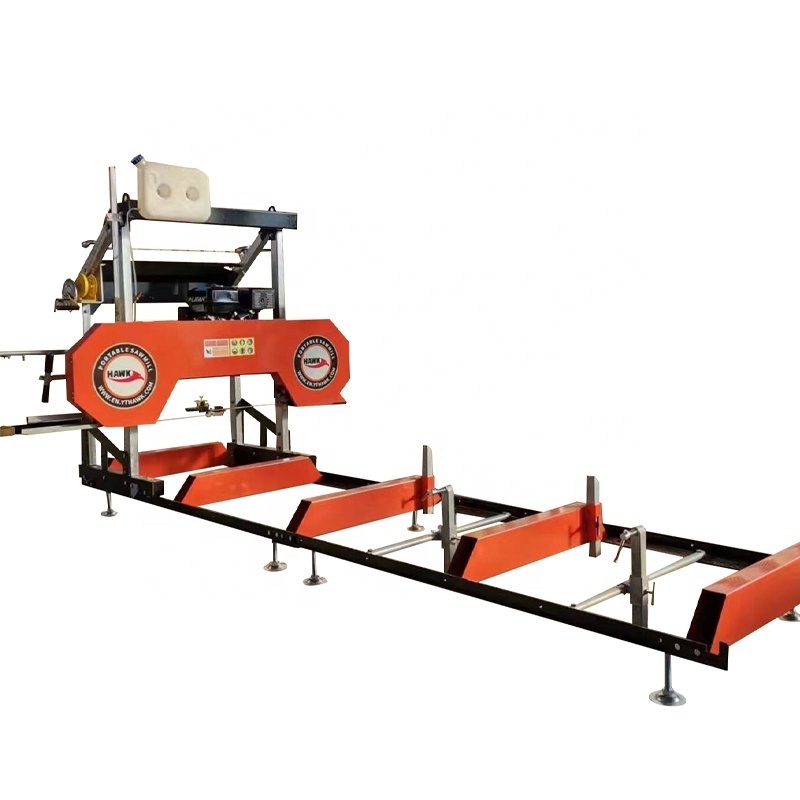

The HAWK SAWMILL is an entry-level portable sawmill packed full of impressive features while maintaining a budget-friendly price. Designed for hobby sawyers looking for an economical solution to mill lumber. The HAWK SAWMILL adds new features like the adjustable blade guide system, auto lube, an operation hour meter, wider cut capability and much more.
HAWK portable band Mills has designed the HS26 sawmill for budget minded customers looking at getting into milling their own lumber at an exceptional price point. Based on our very popular HS26 model, the HS31 offers hobby sawyers an easy to use, well engineered sawmill with the ability to mill logs up to 31" in diameter and 110" (2.79m) in length. The HS26/31 also supports an unlimited ability to extend your track to handle milling logs of any length.
|
Portable Band Sawmill (optional)
|
|
|
|
|
||||
|
Model
|
HS26G
|
HS31G
|
HS26E
|
HS31E
|
||||
|
Power
|
Gasoline 9HP
(LIFAN, Manual start)
|
Gasoline 15HP
(LIFAN, Manual start)
|
Electric Motor 5.5KW
|
Electric Motor
7.5KW |
||||
|
Displacement
|
301cc
|
420cc
|
400V 50HZ 3phase
|
400V 50HZ 3phase
|
||||
|
Cutting capacity
|
660*178*2794mm
(26”*7”*110”) |
790*178*2794mm
(31”*7”*110”) |
660*178*2794mm (26”*7”*110”)
|
790*178*2794mm
(31”*7”*110”) |
||||
|
Frame
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
||||
|
Blade size
|
3670*34*0.9mm (144”*1-1/4”*0.035”)
|
3670*34*0.9mm (144”*1-1/4”*0.035”)
|
3670*34*0.9 mm (144”*1.25”*0.035”)
|
3670*34*0.9mm (144”*1-1/4”*0.035”)
|
||||
|
Safe cutting Speed
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
||||
|
Blade speed
|
17m/min
|
17m/min
|
17m/min
|
17m/min
|
||||
|
Distance teeth
|
22mm (0.86”)
|
22mm (0.86”)
|
22mm (0.86”)
|
22mm (0.86”)
|
||||
|
Blade Wheel Dia.
|
475 mm (18.7”)
|
475 mm (18.7”)
|
475 mm (18.7”)
|
475 mm (18.7”)
|
||||
|
Dimension
|
4064*1778*1800mm (160”*70”*71”)
|
4064*1778*1800mm (160”*70”*71”)
|
4064*1778*1800mm (160”*70”*71”)
|
4064*1778*1800mm (160”*70”*71”)
|
||||
|
Weight
|
312kg
|
344kg
|
352kg
|
380kg
|
||||
|
Portable Sawmill Trailer
|
|
|
||
|
Model
|
HST4
|
HST6
|
||
|
Trailer Axle
|
50x50mm
|
50x50mm
|
||
|
Trailer Size(L*W*H)
|
3970
(+1000mm drawbar)x900x700mm
|
6000
(+1000mm drawbar)x900x700mm
|
||
|
Trailer Lights
|
LED light kit
|
LED light kit
|
||
|
Trailer leveling jacks
|
6pcs
|
8pcs
|
||
|
Trailer Ball Coupler
|
2 (50mm)
|
2 (50mm)
|
||
|
Finish
|
Galvanized
|
Galvanized
|
||
|
Weight
|
350/385kg
|
380/415kg
|
||
Advantage:
1.The machine has the features of high cutting speed,high cutting rate,high quality of final
product,great reduce the lost of sawdust.
2.It is simple installation, easy operation, labor saving , and high productivity.
3.simple , safe and pro-environment;
4.Automatic control the timber thickness, high-precision.
5.High cutting efficiency, smooth; high flatness of the cutting plate;
6,The thickness of processing wood can be adjusted according to your need
7.There’s no need the professional sawyers, the ordinary workers can operate the machine expertly.
Smooth Sawhead Feed
Guide the sawhead through the cut with finger-tip pressure – allows you to judge the best speed for smooth cuts through knots and denser core wood.
Blade Lube System
Keeps blade pitch-free in softwoods. Delivers water directly to the blade at the point of entry into the cut. Large custom-molded water bottle with wide-mouth filling port for easy refilling.
Products Use
Yantai Hawk Hydraulic Equipment Co., Ltd is a professional manufacturer which was found in 2012 has a lot of experience in forestry machinery and excavator attachments researching & developing, producing and marketing.
Our factory is located in Yantai City, Shandong Province, Near to Qingdao port.
Main products includes sawmill, hydraulic breaker, post driver, pile hammer, tree shear, cone splitter, hydraulic pulveriser, multifunction grapples, quick hitch couplers, ripper, etc.
All products' quality are strictly under control from processing to delivery. Equip with high-tech equipment and technology as well as scientific management system, our excellent staff are ready to offer you superior products and service. Our mission is: Quality first, Service foremost, and Innovation paramount.
FAQ
1 Are you factory or trading company?
We have our own factory, mainly manufacture Forestry Machinery&Excavator Attachments, using "Self-produced
Self-marketing" business model, reducing the cost of intermediate links.
2 What's your company advantages?
As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with market and can recommend to clients right products.
3 Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
4 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-30 days depending on the products you
order.
5 How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system,
and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment
6 Why choose US?
A. Very competitive advantage products!
B. Small order welcome!
C. Alibaba trade assurance payment for your safety!
D. QC for each product before delivery
7 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service
fast, efficient and satisfied
8 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service,
we have establish good and long business relations with many clients. Welcome clients from all over the world to visit our
factory.
9 If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
