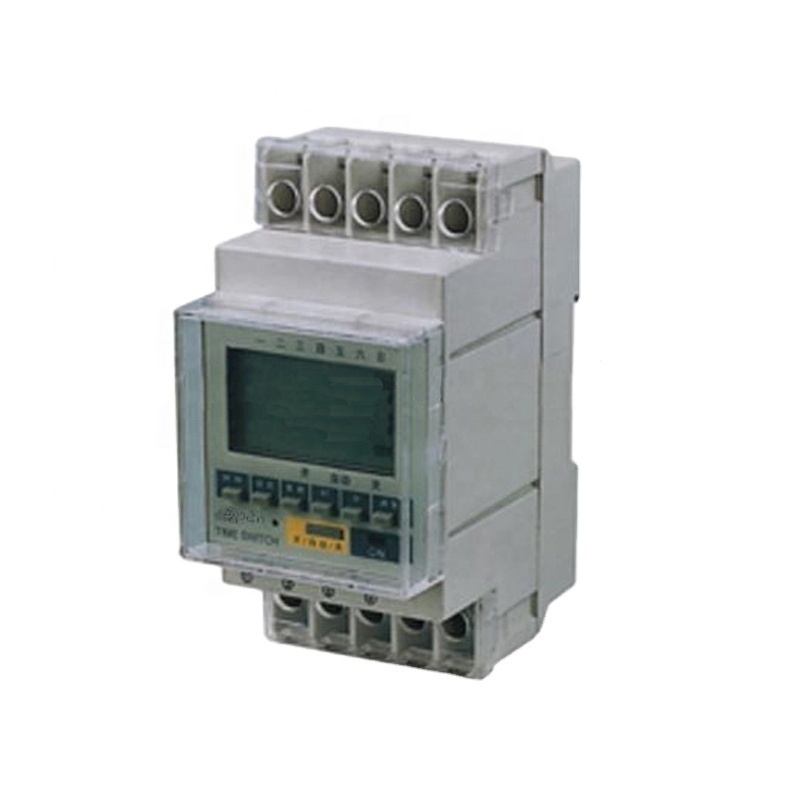

AHC8A Air Conditioner Digital Programmable Din Rail Time Switch with CE

FOB Reference Price: Get Latest Price

≥10 Pieces

US $9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: AHC8A

Max. Current:: 16A

Quality:: 2 year warranty

DIMENSIONS(mm)::: 50X100X66

CONTACT FORM::: 1NO, 1NC/1NO

CONTACT VOLTAGE::: AC220V 50/60HZ 85%~110%

ACCURACY::: <2S/ DAY

Certification::: CE

OEM/ODM:: Yes

Condition:: Original new

Working reserve time::: without battery

TEMPERATURER::: -10℃ ~ +40℃

Quick Details

Max. Voltage:: 220VAC

Place of Origin:: Zhejiang, China

Brand Name:: Winston

Model Number:: AHC8A

Max. Current:: 16A

Quality:: 2 year warranty

DIMENSIONS(mm)::: 50X100X66

CONTACT FORM::: 1NO, 1NC/1NO

CONTACT VOLTAGE::: AC220V 50/60HZ 85%~110%

ACCURACY::: <2S/ DAY

Certification::: CE

OEM/ODM:: Yes

Condition:: Original new

Working reserve time::: without battery

TEMPERATURER::: -10℃ ~ +40℃

Product Description

What is the Features of the Time Switches ?

1) Time range: Per day or per week cycle

2) Contact capacity: 16A 250V AC
3) Coil voltage: AC230V 50/60HZ

4) Electrical life: 100,000 times
5) Mechanical life: 10,000,000 times
6) Working reserve time: 3years

7) Minimum setting unit: 1 minute

8) Programmable: 8ON/OFF per day or per week cycle

9) Operating temperature: -20 - +50°C

10)Time accuracy: ≤1s/day at +20 °C

Technique parameter

What is the Specifications about our Time Switches ?

CLASSIFICATION		WEEKLY PROGRAMMABLE
MODEL		AHC8A	AHC8
DIMENSIONS(mm)		50X100X66	48X48X95
FULL TIMING RANGE		Per weel or per day cycle
RATED VOLTAGE		AC 220V 50/60HZ 85%~110%
CONTACT CAPACITY		16(10)A, 250V AC
CONTACT FORM		1NO, 1NC/1NO	1NO
ACCURACY		<2S/DAY
EXPECTANCY DISPLAY		LCD
MOUNTING HOLES		----	45X45mm
MOUNTING FORM		Front-panel, DIN RAIL	Front-panel, DIN RAIL
LIFE	ELECTRICAL	>10^5 times
	MECHANICAL	>10^7 times
TEMPERATURER		-10℃~+40℃
PROGRAMMABLE		8 ON/OFF per day or per week
STORAGE BATTERY		2 Years
CONSUMED POWER		5.5VA
