Quick Details
-
Color:
-
Full color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
P5
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
40000 pixels, 40000 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
64*32, 64*32 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-

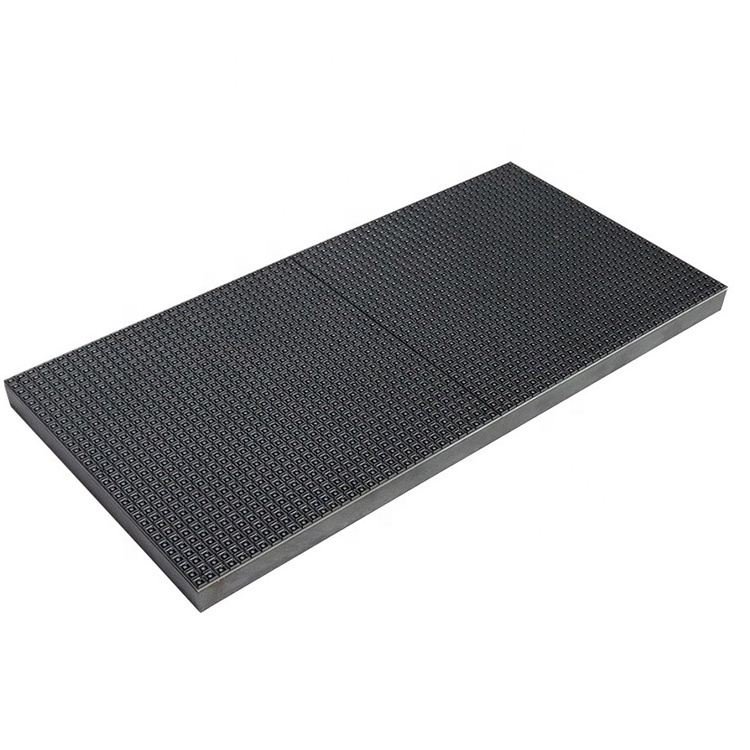

P5 indoor full color led module
-
Refresh rate:
-
3840Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
320*160mm
-
Scan mode:
-
1/16 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Chipstar
-
Color:
-
Full color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
P5
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
40000 pixels, 40000 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
64*32, 64*32 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P5 indoor full color led module
-
Refresh rate:
-
3840Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
320*160mm
-
Scan mode:
-
1/16 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Product Description
Application Scenarios
Specification
|
Module Number
|
PH2.5
|
PH4
|
PH5
|
|
Pixel Pitch
|
2.5mm
|
4mm
|
5mm
|
|
Physical Density
|
160000 pixels/m2
|
62500 pixels/m2
|
40000 pixels/m2
|
|
Led Arrangement
|
SMD1515
|
SMD2121
|
SMD2121
|
|
Module Resolution
|
128*64 pixels
|
80*40 pixels
|
64*32 pixels
|
|
Module Dimensions
|
320*160 mm
|
320*160mm
|
320*160mm
|
|
Cabinet Resolution
|
384*384 pixels
|
240*240 pixels
|
192*192 pixels
|
|
Cabinet Dimensions
|
960*960mm
|
960*960mm
|
960*960mm
|
|
Cabinet Weight
|
28kg
|
28kg
|
28kg
|
|
Brightness
|
800-1000 nits
|
800-1000 nits
|
800-1000 nits
|
|
Max Power Consumption
|
560w/m2
|
480w/m2
|
460w/m2
|
|
Ave Power Consumption
|
186w/m2
|
160w/m2
|
154w/m2
|
|
Viewing Angle
|
160°(W) 160°(H)
|
160°(W) 160°(H)
|
160°(W) 160°(H)
|
|
Operating Power source
|
110-240V AC 50-60Hz
|
110-240V AC 50-60Hz
|
110-240V AC 50-60Hz
|
|
Operating Temperature
|
-20℃～+50℃
|
-20℃～+50℃
|
-20℃～+50℃
|
|
Refresh Rate
|
3840Hz
|
1920Hz
|
1920Hz
|
|
IP Rating
|
IP43
|
IP43
|
IP43
|
|
Signal Input Source
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
|
Certificate
|
ETL, FCC, CCC, RoHS, CE
|
ETL, FCC, CCC, RoHS, CE
|
ETL, FCC, CCC, RoHS, CE
|
