Quick Details
-
Voltage:
-
380
-
Place of Origin:
-
China
-
Brand Name:
-
UTECS
-
Dimension(L*W*H):
-
4000*1500*1600mm
-
Weight:
-
1600 KG
-
Engineers on-site guidance:
-
Available
-
laminating width:
-
720mm
-
Paper Thickness:
-
80GMS to 500gsm
-
Laminating Temperature:
-
40-130℃
-
After Warranty Service:
-
Online support,Spare parts
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
ISO9001
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Metal, Paper, Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
380
-
Place of Origin:
-
China
-
Brand Name:
-
UTECS
-
Dimension(L*W*H):
-
4000*1500*1600mm
-
Weight:
-
1600 KG
-
Engineers on-site guidance:
-
Available
-
laminating width:
-
720mm
-
Paper Thickness:
-
80GMS to 500gsm
-
Laminating Temperature:
-
40-130℃
-
After Warranty Service:
-
Online support,Spare parts
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
ISO9001

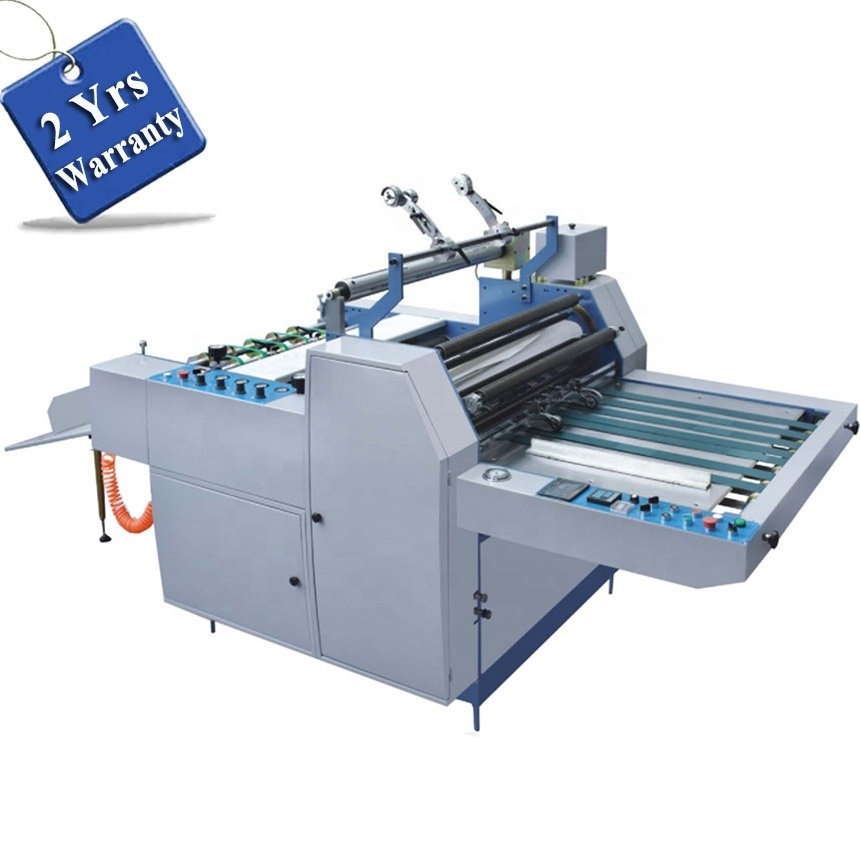

YFML720A Small office A2 A3 A4 hot thermal laminating machine, cold BOPP plastic film Manual laminator
Video demonstration only for reference
Video 01 : https://www.youtube.com/watch?v=L6cfVTiu3QE
Video 02 : https://www.youtube.com/watch?v=sax-kzro9L8
Features
1. Frequency converter is equipped for easy speed adjustment
2, Paper sheets feeding manually
4. Paper regulating plate is adjustable upon paper size.
5. Paper overlap regulating system: When the operator input overlap length on touch screen, the overlap regulating system will control overlap length automatically according the preset parameters.
6. High-precision Chrome plated heating roller is equipped with built-in electrical tube heater which makes temperature rise instantly. The laminating temperature is adjustable against different application.
7. Pneumatic pressuring system provides steady pressure for good laminating quality.
8. Film cutter cuts film width to meet paper size and the waste film can be collected in spindle.
9. Film perforating wheel perforates film edge for easy sheets separating.
10. Anti-curvature device: The laminated paper goes through anti-curvature device and won’t curl after cutting.
11. Heating temperature can be adjusted on the touch screen for stable and constant lamination
Parameters:
|
Model |
YFML520A |
YFML720A |
YFML920A |
|
Max Laminating Width |
520mm |
720mm |
920mm |
|
Laminating Temperature |
60-130℃ |
60-130℃ |
60-130℃ |
|
Paper Thickness |
105-500gsm |
125-500gsm |
125-500gsm |
|
Laminating Speed |
0-30m/min |
0-30m/min |
0-30m/min |
|
Gross Power |
9kw |
13kw |
15kw |
|
Total Weight |
1000kg |
1600kg |
1800kg |
|
Dimensions |
3300*1150*1450mm |
4000*1500*1600mm |
4000*1700*1600mm |
Automatic Overlap System
Front Control Panel for Easy Operation
268mm Diameter Sized Heating Cylinder
Perforating and Cutting Knife
Post-Perforating Knife
Corrugated Delivery System for Easy Paper Collection
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service ?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679) . In addtion, we have professional engineer available for overseas service. .
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
