Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
12000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Gold Processing Plant
-
Application:
-
Gold
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Installation:
-
Engineer Guide
-
Price:
-
Negotiable
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sino
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
12000 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Gold Processing Plant
-
Application:
-
Gold
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Installation:
-
Engineer Guide
-
Price:
-
Negotiable
Products Description

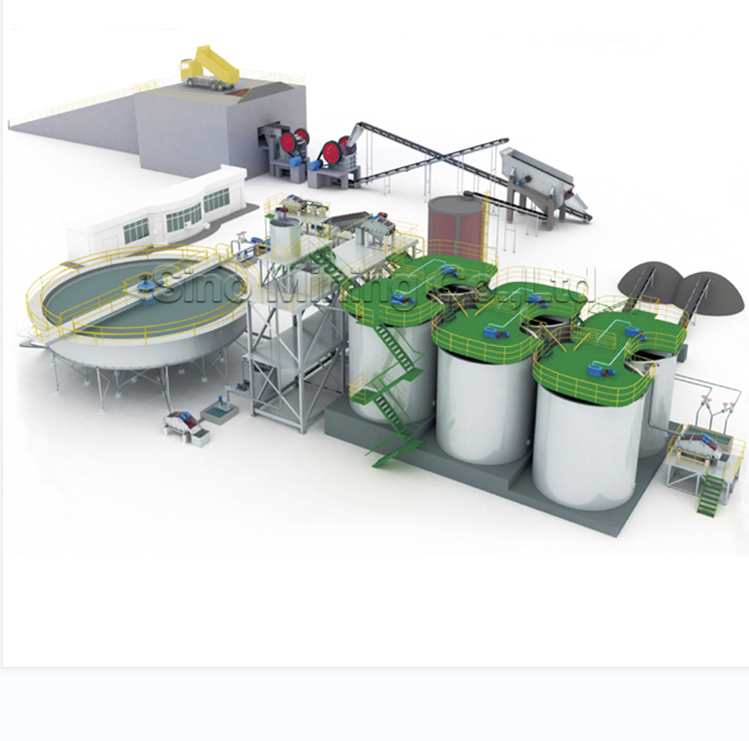

Gold CIL (carbon in leach) Processing Plant
Gold CIL (carbon in leach) Processing Plant
is a cyanide gold extraction process. Firstly, raw material is crushed into less than 10mm by different types of crushers; secondly, the crushed material will be ground and classified into 90% of 200mesh, then the fine powder will get thicker, after concentration, add chemical and leach in the leaching tank. After leaching, we can use activated carbon to adsorb gold, then get gold-loaded carbon. Finally, we can use electrolysis equipment or fire to get the gold bar.
Flow Chart of CIL Gold Processing Plant
A. Raw materials preparation:
Raw ores are sent to the primary crusher by vibrating feeder, then sent to the secondary crusher by belt conveyor; the crushed ores will be sent to a vibrating screen for separating. Under the screen, ores will be sent to a powder silo. Upper screen ores will be sent to the tertiary crusher by belt conveyor for re-crushing, and the crushed ores will be sent to the screen again to be separated. It is named a three-step one closed circle crushing flow chart.
B. Leaching and adsorption:
The slurry will enter into 8 sets of double impeller leaching tanks; well-mixed sodium cyanide agents are added to the first tank; active carbon is added to the tanks from the second to the eighth; active carbon from the second agitator is lifted to the carbon screen to get gold-loaded carbon, and after cleaning, the gold loaded carbon enters into the desorption & electrolysis system; while the slurry left goes back to the second tank; active carbon is lifted by air lifter from the tank next to the tank before against the current; the tailing goes through safety screen to recycle fine-size gold-loaded carbon, and then goes to tailwater treatment stage.
Overseas Service:
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and China, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
transportation
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Customer Case
Overseas Service
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and Sudan, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
