- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
doufang
-
Dimension(L*W*H):
-
10x10x10
-
Weight:
-
1 KG
-
Application:
-
Spraying industry
-
Material:
-
Synthetic fiber
-
Color:
-
White
-
Function:
-
Air Filtraion
-
Size:
-
20*2*0.022m
-
Style:
-
Mesh, Cloth
-
Type:
-
With glue, Inside glue, Without glue
Quick Details
-
Efficiency:
-
98%
-
Porosity:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
doufang
-
Dimension(L*W*H):
-
10x10x10
-
Weight:
-
1 KG
-
Application:
-
Spraying industry
-
Material:
-
Synthetic fiber
-
Color:
-
White
-
Function:
-
Air Filtraion
-
Size:
-
20*2*0.022m
-
Style:
-
Mesh, Cloth
-
Type:
-
With glue, Inside glue, Without glue
Product Description

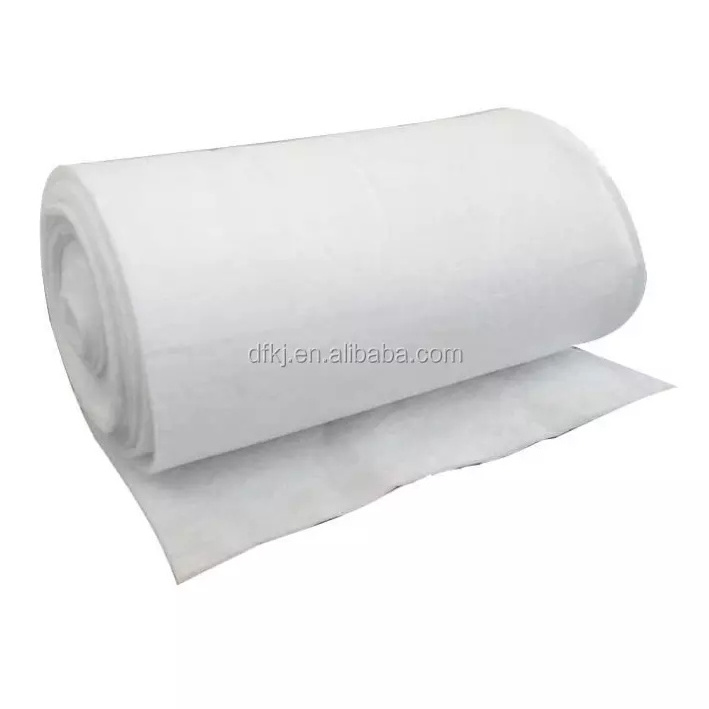

Ceiling cotton is a white filter material that can be used as a filter element for air filters. Filter the dust and particles in the air. It guarantees our healthy life.
|
Model
|
Product Process
|
Rated Air
Speed (m/s)
|
Filtration Efficiency (%)
|
|
|
Initial Resistance
(Pa) |
Dust Holding
Capacity (g/m) |
||
|
|
|
|
2μm
|
5μm
|
10μm
|
|
|
||
|
DFTB560
|
Ceiling Cotton
|
0.25
|
50
|
80
|
95
|
25
|
360
|
||
|
DFTB560
|
|
0.25
|
60
|
85
|
98
|
35
|
450
|
||
|
Model
|
GSM (g/m
2
)
|
Width (m)
|
Length (m)
|
Thickness
(mm)
|
Color
|
Rolling
Diameter(m)
|
|
||
|
DFTB560
|
560
|
1/1.2/1.6/2
|
20
|
22
|
White
|
0.68
|
|
||
|
DFTB560
|
600
|
1/1.2/1.6/2
|
20
|
22
|
White
|
0.68
|
|
||
Characteristic :
1. The structure is uniform, under wind pressure and dust pressure, it will not be compressed and deformed, and it can still maintain high performance and large dust holding space.
2. Flame-retardant, temperature resistance up to 130℃; the backing net strengthens the shaping, and effectively guides the uniform laminar air flow.
3. The filtration efficiency is 98% according to the weighting method, and the dust holding capacity can reach 450g/㎡.
4. The patio cotton has a compact structure, and the capillary fibers should not fall off when under air pressure.
5. Good air permeability, low pressure loss.
Application :
1. Painting lines, paint booths, ventilation systems, air-conditioning systems and other places where fine dust needs to be filtered;
2. Used in the primary filtration system of the external air and the primary filtration of the air-conditioning return air system;
3. It is suitable for various industrial purposes, such as pollution prevention, air-conditioning industry, industrial waste gas, and pollution mist generated in the processing industry.
Specifically suitable for coarse dust filtration, air filtration system pre-filtration, air-conditioning system return air filtration.
Specification
|
item
|
Ceiling cotton
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
|
|
After Warranty Service
|
Online support
|
|
Local Service Location
|
none
|
|
Showroom Location
|
none
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
6 months
|
|
Core Components
|
Gear
|
|
Condition
|
New
|
|
Efficiency
|
98%
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Warranty
|
6 months
|
|
|
Online support
|
|
Application
|
Spraying industry
|
|
Material
|
Synthetic fiber
|
|
Color
|
White
|
|
Function
|
Air Filtraion
|
|
Size
|
20*2*0.022m
|
